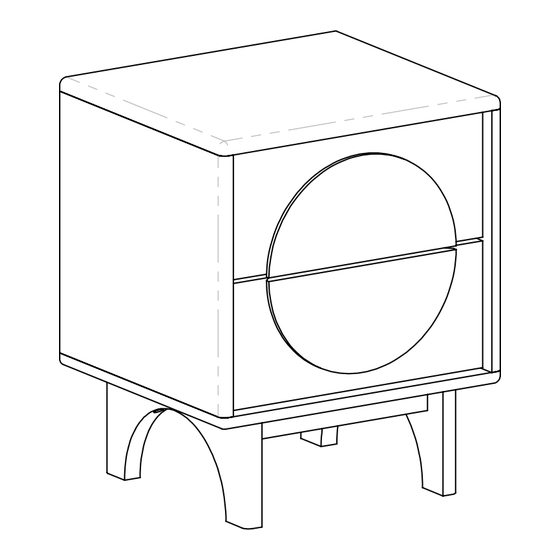

Thank you for purchasing this Side Table / Bedstand Groove. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product.
People to assemble
Tools required
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 15 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
BRUSID-CNLM-07/23
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zuiver Groove Side Table Bedstand
Summary of Contents for Zuiver Groove Side Table Bedstand
- Page 1 Thank you for purchasing this Side Table / Bedstand Groove. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product. People to assemble Tools required Please check the pack contents before attempting to assemble this product.
- Page 2 Fittings and parts checklist Parts checklist Cabinet Left leg Right leg Bottom rail Fitting checklist Bolt Full thread stud M6x35mm M6x70mm Spring washer Flat washer Hexagon nut Half-moon washer Felt pad Spanner Allen key #4 BRUSID-CNLM-07/23...
- Page 3 Step by step assembly instructions Step One Carefully place the legs (part B&C) on a soft, flat surface near where the unit will be used. Screw the full thread stud (part F) into the fixing point on the inside of the legs (part B&C) until finger tight, as shown below. Step Two Carefully insert the bottom rail (part D) over the full thread stud that already assembled in step 1, then secure the bottom rail using the half-moon washer (part J), flat washer (part H), spring washer (part G), hexagon nut...
- Page 4 Step by step assembly instructions Step Three Locate the right leg (part C) with 2x full thread stud (part F) that already assembled in step 1 as shown below. Step Four Secure the right leg (part C) using the half-moon washer (part J), flat washer (part H), spring washer (part G), hexagon nut (part I) and spanner (part L) as shown below.
- Page 5 Step by step assembly instructions Step Five With 2 people, carefully place the cabinet (part A) upside down on a soft, flat surface near where the unit will be used. Secure the leg frame assembly using bolt (part E) and allen key (part M) as shown below. leg frame assembly Step Six With 2 people, carefully turn the product over and place in position.
-
Page 6: Care And Maintenance
Care and Maintenance Wood furniture • Wood displays different grain patterns depending on which way they cut - for example, the ‘medullary rays’ which can appear is a mark of good quality timber - these are just characteristics of the natural beauty of the wood. - Page 7 Experiencing problems with your new product? Before calling customer service, please have your item’s batch code ready. You can find the batch code on the back or bottom of your product as below shown. (example batch code: 190510) Batch Code Placement BRUSID-CNLM-07/23...
