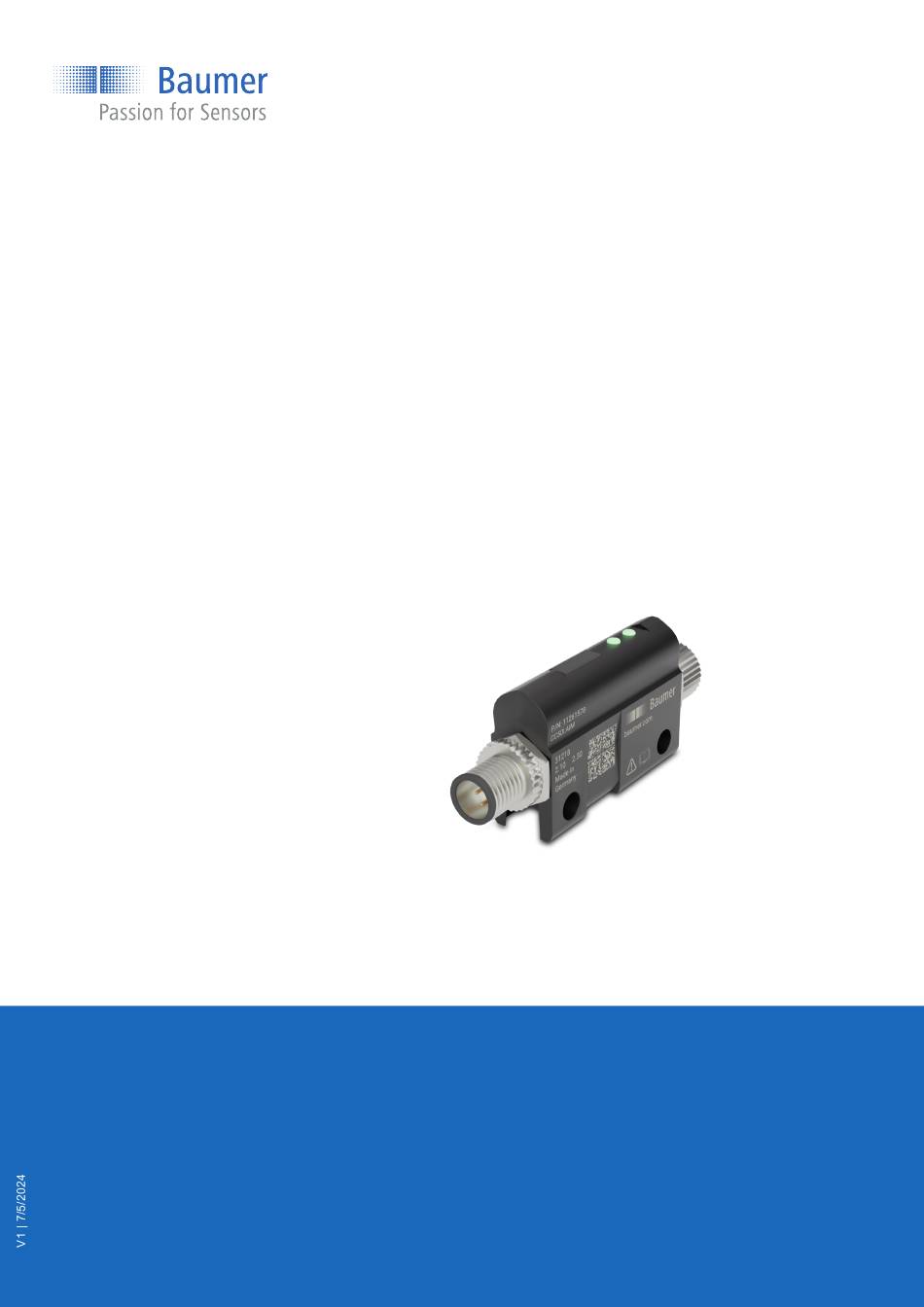

- Page 1 Operating Manual CC50I.AIM/CC50I.AOM EN-US IO-Link converter...
-
Page 2: About This Document
Understanding the present manual requires general knowledge about automation technology. In addition, planning and using automation systems requires technical knowledge which is not in- cluded in this manual. Applicable documents Available for download at www.baumer.com: ▪ Instruction manual ▪ Data sheet ▪ Device description file ▪... -
Page 3: Warnings In This Manual
Indicates a warning of material damage. INFO Indicates practical information and tips that enable optimal use of the devices. Trademarks The present documentation uses the trademarks of the following companies and institutions: IO-Link c/o PROFIBUS User Organisation e.V. (PNO) V1 | CC50I.AIM/CC50I.AOM Operating Manual... -
Page 4: General Information
Used electrical and electronic devices may not be disposed of in household waste. The product contains valuable raw materials that can be recycled. There- fore dispose of this product at the appropriate collection point. For additional in- formation visit www.baumer.com. Operating Manual CC50I.AIM/CC50I.AOM | V1... -
Page 5: General Safety Instructions
Check material resistance against aggressive media. INFO Any manipulation/modification of hardware and software only qualified Baumer personnel, ex- cept for firmware updates. V1 | CC50I.AIM/CC50I.AOM Operating Manual... - Page 6 Description Baumer Description IO-Link converter Analog input (CC50I.AIM) Input M12 female connector A-coded IO-Link M12 connector A-coded Resolution 16 bits Accuracy 0.1 % Drift 45 ppm Sampling rate ≤200 Hz IO-Link converter Analog output (CC50I.AOM) Output M12 female connector A-coded...
-
Page 7: Technical Data
45 ppm / °K Transformation principle Resolution 24 bits Process data 16 bits Sampling rate ≤200 Hz Filter Process data, averaging Yes, averaging is capable of throughout 0...64 IO-Link cy- parameterization cles Sensor cable <30 m V1 | CC50I.AIM/CC50I.AOM Operating Manual... -
Page 8: Analog Inputs
Analog inputs Analog outputs 0 ... 20 mA 0.1 % 0.1 % 4 ... 20 mA 0.1 % 0.1 % 0 ... 10 V 0.1 % 0.1 % -10 ... +10 V 0.2 % 0.1 % Operating Manual CC50I.AIM/CC50I.AOM | V1... -
Page 9: Ambient Conditions
5 % FS without filter 0.2 % FS with max. filter Conducted HF interference EN 61000-4-6 0.15 ... 80 MHz 10 V, 80 % AM; 1 kHz Electrostatic discharge (ESD) EN 61000-4-2 Contact ±4 kV Air: ±8 kV V1 | CC50I.AIM/CC50I.AOM Operating Manual... -
Page 10: Mechanical Data
Brass with Cu/Ni finish Product reliability Analog inputs Product reliability MTTF SN 29500 (at 40 °C and rated 209 years data) Analog outputs Product reliability MTTF SN 29500 (at 40 °C and rated 189 years data) Operating Manual CC50I.AIM/CC50I.AOM | V1... - Page 11 EU RoHS Directive 2011/65/EU, Annex III: Exemption 6(c) Copper alloy containing up to 4 % lead by weight. V1 | CC50I.AIM/CC50I.AOM Operating Manual...
-
Page 12: Installation
Use fastening screws that are appropriate for the mounting surface. a) Fastening screws and tightening torques depend on mounting surface. b) Ttighten the screws carefully. Observe the specified tightening torques. Ill. 1: Sensor attachment M5 mounting hole Ø 5.2 mm Operating Manual CC50I.AIM/CC50I.AOM | V1... -
Page 13: Connection Lines
A-coded Connection lines CAUTION Hot surface. Minor personal injuries and damage to the device when contacting hot surfaces. a) Wear suitable isolating gloves. b) Only use connection cables that meet thermal requirements. 0.6 Nm Art.-No. 11238694 V1 | CC50I.AIM/CC50I.AOM Operating Manual... - Page 14 IN 0/4 ... 20 mA Sensor Sensors with voltage output (0 ... 10 V / +/- 10 V) Assignment Pin 1 US, +24 V Pin 2 AIN+ Pin 3 Pin 4 n.c. IN 0/-10 ... +10 mA Sensor Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 15 IN 0/4 ... 20 mA Actuator Actuators with voltage output (0 ... 10 V / +/- 10 V) Assignment Pin 1 US, +24 V Pin 2 n.c. Pin 3 Pin 4 UOUT IN 0/-10 ... +10 mA Actuator V1 | CC50I.AIM/CC50I.AOM Operating Manual...
-
Page 16: Io-Link Interface
Pin 2 n.c. Pin 3 GND, L- Pin 4 IO-Link data cable, C/Q Input Analog M12 female connector A-coded, single wire variants Pin 1 Pin 2 AIN (U/I) Pin 3 GND (Analog Us) Pin 4 n.c. Operating Manual CC50I.AIM/CC50I.AOM | V1... - Page 17 Baumer Installation Output analog M12 female connector A-coded, all variants Pin 1 Pin 2 n.c. Pin 3 GND (Analog Us) Pin 4 AOUT (U/I) V1 | CC50I.AIM/CC50I.AOM Operating Manual...
-
Page 18: Operation
Device supply undervoltage (Ub <18 V) Green Flashing at 2 Hz Device supply critical (Ub <12 V) Green Flashing irregularly (4 Hz/1 Device supply Overvoltage (Ub >30 V) Green No power supply present. Tab. 1: Device status Operating Manual CC50I.AIM/CC50I.AOM | V1... - Page 19 / outside the parameterizable range Flashing at 2 Hz Overcurrent in sensor supply Flashing irregularly (4 Hz /1 Channel error Uout > Usoll / Channel error Uout < Usoll Tab. 4: Device status AO U 0/-10 ... +10 V V1 | CC50I.AIM/CC50I.AOM Operating Manual...
-
Page 20: Process Data
VendorName Baumer 0x11 VendorText www.baumer.com 0x12 ProductName CC50I.AIM CC50I.AOM 0x13 ProductID 11261578 11261579 0x14 ProductText IOL/Analog Con- IOL/Analog Con- verter, AI Multi U/I verter, AO Multi U/I 0x15 SerialNumber Consecutive serial number, set by default Operating Manual CC50I.AIM/CC50I.AOM | V1... - Page 21 Maintenance re- quired Outside specifica- tion Functional test Error 5-255 Reserved 0x25 DetailedDeviceS- Currently present events tatus 0x28 ProcessDataInput R Recently valid process data (AI types only) 0x29 ProcessDataOut- Recently valid process data (AO types only) V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 22 Processor temperature Dies Temperature 8.2.2 Object description Analog inputs ISDU-Index 0x40 Object ParamDiagnosisSetup is used to parameterize the diagnostic events that the IO-Link converter should generate. A set bit activates the generation of the relevant event. Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 23 Bit 6 Reserved Bit 7 Reserved Bit 8 Reserved Bit 9 Reserved Bit 10 Reserved Bit 11 Overcurrent in sensor supply Bit 12 Reserved Bit 13 Reserved Bit14 <4 mA underdrive Bit 15 >20 mA overdrive V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 24 Bit 6 Reserved Bit 7 Reserved Bit 8 Reserved Bit 9 Reserved Bit 10 Reserved Bit 11 Overcurrent in sensor supply Bit 12 Reserved Bit 13 Reserved Bit14 <-10 V underdrive Bit 15 >10 mA overdrive Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 25 Bit 7 Reserved Bit 8 Reserved Bit 9 Reserved Bit 10 Sensor cable break Bit 11 Overcurrent in sensor supply Bit 12 Reserved Bit 13 Reserved Bit14 PDOUT-DATA <0d underdrive Bit 15 PDOUT-DATA >27648d overdrive V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 26 Bit 7 Channel error Uout >Utarget Bit 8 Reserved Bit 9 Reserved Bit 10 Reserved Bit 11 Overcurrent in sensor supply Bit 12 Reserved Bit 13 Reserved Bit14 PDOUT-DATA <0d underdrive Bit 15 PDOUT-DATA >27648d overdrive Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 27 ParamDeviceFunc- tion. Only values from the nominal measuring range are permitted, see also Process data. With AO variants, threshold monitoring is only applied to the output process data sent by mas- ter. V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 28 Analog IN U bipolar -10 ... +10 V 0x03 Analog IN I unipolar 0 ... 20 mA 0x04 Analog IN I unipolar 4 ... 20 mA Any other value will generate an error alert by the IO-Link converter. Operating Manual CC50I.AIM/CC50I.AOM | V1...
-
Page 29: Diagnostic Tools
As there is no PNIO integration for IO-Link mapping the predefined event codes of IO-Link Spec. 1.1 correctly to PNIO diagnostics, the ISDU index 0x45 must be read out as well. In conjunction with a master supporting the Baumer IO-Link extended integration, ISDU index 0x45 readout is not required. - Page 30 -10 ... 10 V 0x180B Analog output error - Error appearing dis- corresponds to bit 6 in ISDU Idx output overdrive appearing 0x40 AO types and HW 1.xx only 0 ... 10 V -10 ... 10 V Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 31 Reserved Sensor cable break Sensor cable break Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Channel error Uout Channel error Uout Reserved Reserved >Utarget >Utarget Channel error Uout Channel error Uout Reserved Reserved <Utarget <Utarget V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 32 27649 6C01 20.0006 mA 27648 6C00 20.0000 mA Nominal range 0001 4 mA +578.7 nA 0000 4 mA FFFF 4 mA -578.7 nA Range of underdrive -4864 ED00 1.1852 mA -32768 8000 <1.1852 mA Underflow Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 33 27648 6C00 10.0000 V Nominal range 0001 361.7 μV 0000 0 uV FFFF -361.7 μV -27648 9400 -10.0000 V -27649 93FF -10.0004 V Range of underdrive -32512 8100 -11.7593 V -32768 8000 <-11.7593 V Underflow V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 34 >32511 >7FFF >11.7589 V Max. Output value 32511 7EFF 11.7589 V Range of overdrive 27649 6C01 10.0004 V 27648 6C00 10.0000 V Nominal range 0001 361.7 μV 0000 <0 <0000 <0 V Min. output value Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 35 N IO-Link cycles. Example: At a cycle time of 2.3 ms and a filter time of N = 10,after 23 ms the final value is be- ing read/output. V1 | CC50I.AIM/CC50I.AOM Operating Manual...
-
Page 36: Maintenance
Maintenance Baumer Maintenance Bus nodes and device modules are free from maintenance. No inspection nor maintenance in- tervals required. Instruction: w Replace defective bus nodes and/or modules. Operating Manual CC50I.AIM/CC50I.AOM | V1... - Page 37 Tools Designation Art. no. M12 installation wrench set SW 13 11238694 M12 mounting wrench bit SW 17 11238695 Ill. 3: Assembly wrench INFO PRODUCTS AND ACCESSORIES You can find a large selection of products at: https://www.baumer.com V1 | CC50I.AIM/CC50I.AOM Operating Manual...
- Page 38 Mean Time To (dangerous) Failure (Average operating time to (dangerous) failure) n.c. Not connected (not used) PELV Protective Extra Low Voltage (safety extra-low voltage) Resistive Temperature Detector (resistance thermometer) SELV Safety Extra Low Voltage (safety extra-low voltage) T/C Thermocouple (thermocouple) Operating Manual CC50I.AIM/CC50I.AOM | V1...
- Page 40 Baumer Germany GmbH & Co. KG Bodenseeallee 7 DE-78333 Stockach www.baumer.com...
