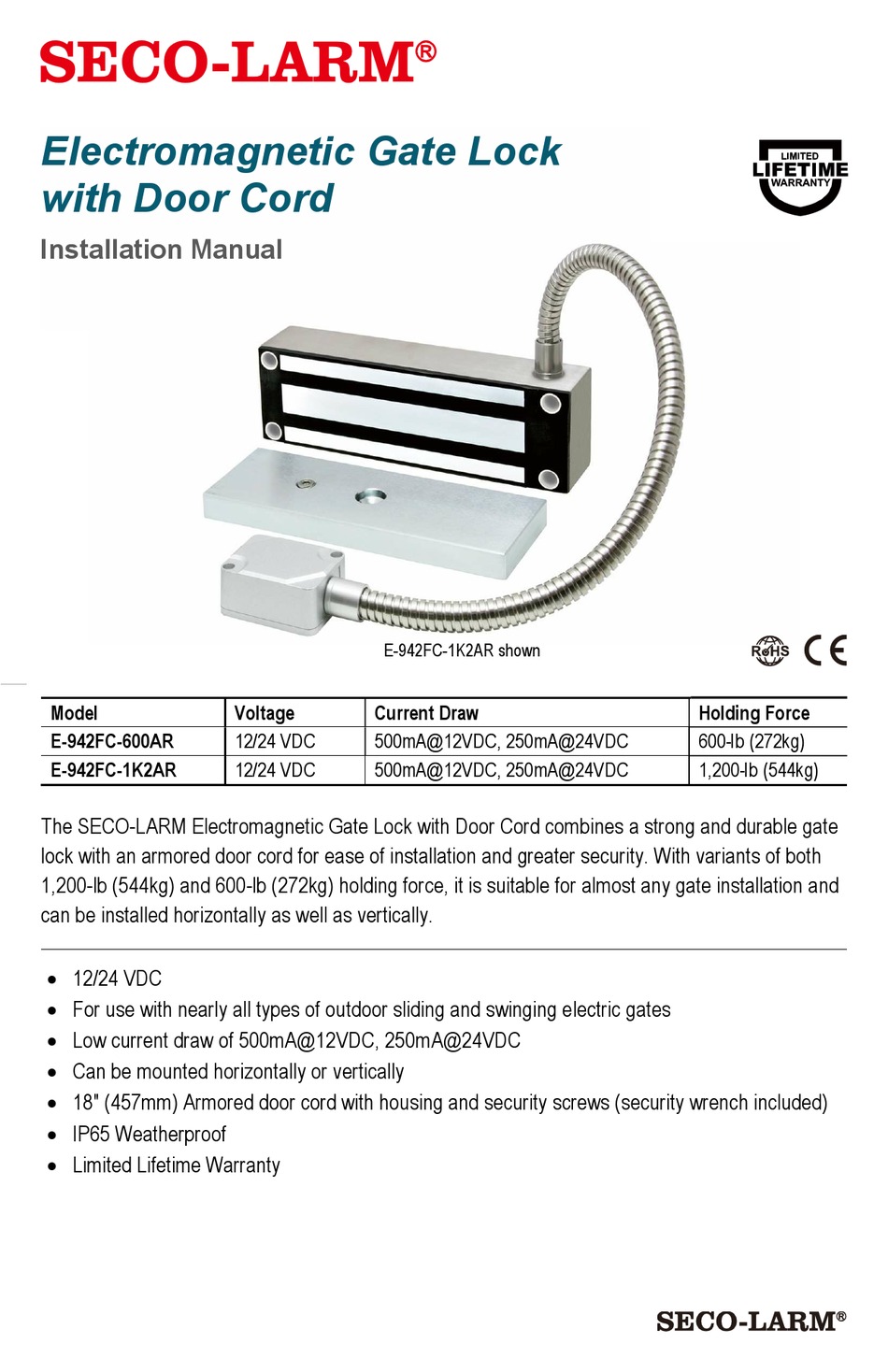

SECO-LARM E-942FC-600AR Installation Manual

Electromagnetic gate lock with door cord

Electromagnetic Gate Lock

with Door Cord

Installation Manual

Model

E-942FC-600AR

E-942FC-1K2AR

The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate

lock with an armored door cord for ease of installation and greater security. With variants of both

1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and

can be installed horizontally as well as vertically.

 12/24 VDC

 For use with nearly all types of outdoor sliding and swinging electric gates

 Low current draw of 500mA@12VDC, 250mA@24VDC

 Can be mounted horizontally or vertically

 18" (457mm) Armored door cord with housing and security screws (security wrench included)

 IP65 Weatherproof

 Limited Lifetime Warranty

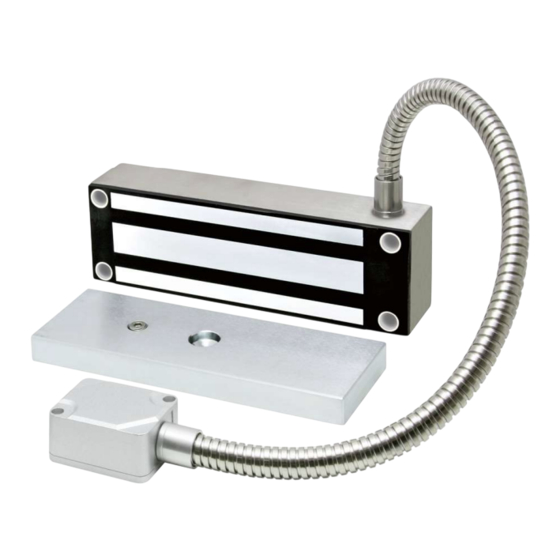

E-942FC-1K2AR shown

Voltage

Current Draw

12/24 VDC

500mA@12VDC, 250mA@24VDC

12/24 VDC

500mA@12VDC, 250mA@24VDC

Holding Force

600-lb (272kg)

1,200-lb (544kg)

Table of Contents

Need help?

Do you have a question about the E-942FC-600AR and is the answer not in the manual?

Page 1 500mA@12VDC, 250mA@24VDC 1,200-lb (544kg) The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.
Page 2 SECO-LARM Electromagnetic Gate Lock with Door Cord Parts List Maglock 1x Armature plate 1x Armature screw 3x Large steel washers Rubber washers 1x Sexnut bolt 4x Mounting screws* 4x Small washers* Tamper caps* 2x Guide pins 1x Hex key / security wrench...
Page 3 SECO-LARM Electromagnetic Gate Lock with Door Cord Installation (Continued) Fig. 3 c. Double-swing gate (Fig. 3) – Two gates swing in the same direction when activated. The electromagnet is fixed to one gate's free end, and the armature is fixed to the other's free end via a Z-bracket.
Page 4 This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.

E-942fc-1k2ar
