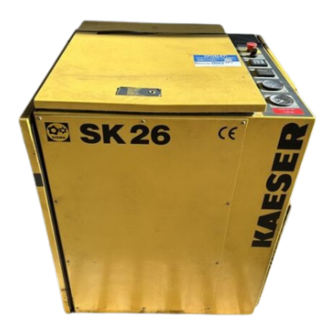

KAESER SK 26 Service Manual

Screw compressor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

SERVICE MANUAL

Screw Compressor

Model: SK 26

GL---Nr.: BA---SK26.L---1.9763.50210---00 03

. . . . . . . . . . . . . . . . . . . . . . . . . .

Wye---Delta Start

D.O.L. Start

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring Diagram:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Serial No.:

...............................................

USE

Volt

Cabinet heaters

115 V receptacle

Outdoor modification

psig

Rainhoods

Switchable Modulation

Synthetic lubricant

Food Grade lubricant . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

Table of Contents

Need help?

Do you have a question about the SK 26 and is the answer not in the manual?

Questions and answers

Jairo Lima

February 5, 2025

Qual é a vazão em L/min desse modelo de compressor trabalhando em 7 bar?

Summary of Contents for KAESER SK 26

Page 1 SERVICE MANUAL Screw Compressor Model: SK 26 GL---Nr.: BA---SK26.L---1.9763.50210---00 03 ......Volt Cabinet heaters Wye---Delta Start 115 V receptacle D.O.L.
Page 3: Table Of Contents
1 --- 3 1.8.3 Compatibility of KAESER Sigma Lubricants ......1 --- 4 Maintenance for the Electrical Motor .
Page 4 Table of Contents Chapter --- Page Putting into Operation ......... . 7 --- 22 Points to be Observed before Putting into Operation .
Page 5 Table of Contents Chapter --- Page 9.13.1 Removing and cleaning the oil cooler/air aftercooler ..... . 9 --- 47 9.14 Oil Change (Oil Separator Tank and Oil Cooler) .
Page 6: Technical Specification
......... . . SK 26 Maximum gauge working pressure .
Page 7: Set Point Of The Safety Relief Valve
Installation Requirements Max. height above sea level of the place of installation 3000 ft. (for all heights above please contact authorized KAESER distributor) 40 EF Min. ambient temperature ......
Page 8: Fluid Recommendations
KAESER synthetic lubricants should be stored in a protected location to prevent contami- nation. Do not re---use drums; flush and send to reconditioner. Although the KAESER synthetic is not highly flammable, it will burn. While KAESER syn- thetic compressor oil is less flammable than equal viscosity mineral oils, it cannot be classi- fied as a fire---resistant fluid.
Page 9: Compatibility Of Kaeser Sigma Lubricants
1.8.3 Compatibility of KAESER Sigma Lubricants All the above listed KAESER Sigma lubricants are similar to mineral oil in their compatibility with paints, seals, gaskets and hoses. The typical precautions are required when changing over from mineral oil to KAESER synthetic hydrocarbon based lubricant.
Page 10: Maintenance For The Electrical Motor
Technical Specification ACCEPTABLE NOT RECOMMENDED Viton Celcon High Nitrile Buna N Neoprene Teflon SBR Rubber Epoxy Paint Low Nitrile Buna N Oil Resistant Alkyd Acrylic Paint Nylon Lacquer Delrin Polystyrene Attention! Polycarbonate bowls can be etched by any synthetic lubricant. We recommend replacement with metal bowls, or the addition of metal guards.
Page 11 Technical Specification 1 --- 6...
Page 12: Safety Regulations
Safety Safety Regulations Read this service manual carefully and observe cautionary references before putting this compressor package into operation and before carrying out any maintenance. Explanation of Symbols and References This symbol is placed before all references to safety where danger to life and limb can occur during work.
Page 13: General Safety Precautions
Unless the Service Manual states otherwise, all pressure lines must be vented or shut off. Attention! Any alterations or reconstruction carried out without the prior written authorization of KAESER COMPRESSORS Inc. will invalidate the war- ranty. Attention! No welding, heat-- treatment or mechanical modifications may be car- ried out on pressurised components such as.
Page 14: Electrical Power Supply
These recommendations do not supersede other applicable codes. Spare Parts Safe and reliable operation of the compressor package is guaranteed only with KAESER original spare parts and KAESER SIGMA cooling oil. Attention! Use only original parts in assemblies subject to pressure.
Page 15: Environmental Protection
Safety Environmental Protection Condensate drainage The condensate accumulating during compression must be fed via a suitable drainage system, collected in special canisters and disposed of according to environmental regulations. Maintenance materials/wear items/replacement parts Ensure that all wear items, maintenance and replacement parts accu- mulating during operation of the compressor package are disposed of according to environmental regulations.
Page 17: Transport
The machine should be protected from mechanical damage by a sturdy crate and from moisture by plastic sheeting. By sea or air Special packaging instructions can be obtained from KAESER. Dispose of the packaging according to environmental regulations and recycle where possible.
Page 18: Storage
Storage If the equipment is to stand idle for a long period the prescribed measures must be taken to avoid damage. If any measures can not be taken, advice should be sought from an authorized KAESER distribitor. Attention! Basically, the equipment should be stored in a dry, frost-- free room.
Page 19: Construction And Operation
Construction and Operation Construction and Operation Principle of Compression The stationary compressor package is fitted with a single stage, oil---injected airend. The two rotors, the driven male rotor and the female rotor, both mounted in antifriction bear- ings, are fitted into the airend. As the rotors rotate, air is drawn into the upper side through the inlet port and is compressed on the lower side.
Page 20 Construction and Operation 5 --- 15...
Page 21 Construction and Operation 5 --- 16...
Page 22: Dual Control
Construction and Operation DUAL Control Full load Idle Standstill Time In DUAL Control (combined idle and start ---stop) the compressor normally runs at full -- load, idle or standstill. The controller regulates the compressor package between full -- load and idle. If the compressor package runs in idle for longer than the preset period (1) to (2), for example t = 6 min, the drive motor is stopped completely (2).
Page 23: Quadro Control
Construction and Operation QUADRO Control p min Full load Idle Standstill Time rise decay Running period Idle/ standstill period Run ---on period Stop point for the running period or idle / standstill period upper switching point lower switching point pressure rise time (the time during which the air system pressure rises rise from the lower to the upper switching point) pressure decay time (the time during which the air system pressure decays...
Page 24: Vario Control
Construction and Operation If the air systems pressure rises to the upper switching point and the running period has already expired, the compressor package is switched off after the run ---on period has expired (2). If the air systems pressure rises to the upper switching point before the running period has expired then the pressure decay time of the previous switching cycle is taken as the criterium for the selection of the operating mode: -- If the pressure decay time t...
Page 25: Installation
Installation Installation Installation Requirements Attention! The compressor should be mounted on level surface. For any special application please consult with the manufacturer. Safe operation of the compressor package is only ensured if the ambient temperature re- mains within the limits stated in chapter 1.6). If the compressor is used in the open, take care that it is protected against the direct rays of the sun and against the ingress of dust and rain.
Page 26: Connection Of The Compressed Air Supply
Installation Solution B: Exhaust Air used for Space Heating The hot air is forced through a conduit (see chapter 1.6) into the room to be heated. Attention! Consult the manufacturer with regard to length of conduit and for maximum allowable pressure drop for this compressor package. Safe operation of the compressor package is guaranteed only if the temperature limits (see chapter 1.6) of the cooling air are adhered to.
Page 27: Putting Into Operation
Initial Start Putting into Operation Points to be Observed before Putting into Operation Every compressor package is given a test run at the factory and carefully inspected before shipment. The test run confirms that the package conforms to the specification data and runs perfectly.
Page 28 Initial Start During installation of the compressor unit, ensure that a distance of at least 40 ” is kept between the cooling air intake of the unit and any wall. Check the oil level in the oil separator tank (see chapter 9.12). Check that the airend rotates in the correct direction (see chapter 7.4).
Page 29: Checklist
Initial Start Checklist Is the floor at the place of installation solid and level? yes no Is the space large enough for the compressor package or its components? yes no Are inlet and exhaust air apertures available in sufficient size and number? yes no Are all components of the compressor package easily accessible? yes no...
Page 30: Direction Of Rotation Check
Initial Start Direction of Rotation Check Attention! The compressor is wired for connection to a clockwise phase se- quence power supply. A check of the direction of rotation can be made by testing the phase sequence. Arrows showing the direction of rotation are located on the motor and on the airend hous- ing.
Page 31: Setting The Air System Pressure
Initial Start Setting the Air System Pressure The air system pressure is preset at the factory. It can be changed in SIGMA CONTROL to match customer’s operational requirements if the password is known. For further details, consult the SIGMA CONTROL service manual. Attention! Switching from full load to idle running may take place no more fre- quently than 2 times per minute.
Page 32 Initial Start Align the insertion dey (3) so that it glides smoothly into the interlock switch (1). If necessary, use washers to help align the insertion key (3) with the interlock switch (1). Tighten the bolts (4) again. 1 Door interlock switch Bolt 2 Clamping nut...
Page 33: Measures To Be Taken Before Initial Start
Initial Start Measures to be taken before Initial Start Follow the procedure detailed bellow before initial start, after an oil change or if the com- pressor has not been operated for a period of three months or longer before starting the compressor: 7.8.1 Pour a small quantity of oil into the air inlet port...
Page 34: Operation
Operation Operation Control Panel 1 SIGMA CONTROL 2 EMERGENCY STOP pushbutton SIGMA controller The SIGMA controller (1) is fitted in the control cabinet in the compressor package and serves as the control panel. It has 11 keys and 9 LEDs. Operation of the compressor pack- age is determined by the settings programmed into the controller.
Page 35: Function Keys
Operation 8.2.2 Function keys 1 ON key (“I”) Menu scroll --- DOWN key 2 OFF key (“0”) Menu scroll --- UP key 3 Timer ON/OFF key Escape key 4 Remote ON key Return key 5 Load/idle key Info --- event key Acknowledge (reset) key 8.2.3 Light emitting diodes and plain text display...
Page 36: Starting And Stopping The Compressor Unit
Operation Starting and Stopping the Compressor Unit Attention! Do not start and stop the compressor package with the main discon- nect switch. The compressor must always be switched ON and OFF with keys (1) and (2). To turn the compressor ON (local): Switch on the main disconnect switch.
Page 37: Acknowledgement Of Service Messages
Operation Acknowledgement of Service Messages When maintenance is due the yellow LED (15) on SIGMA CONTROL flashes. Maintenance due is shown in the display (12). A list of service messages that may occur during operation is included in the SIGMA CONTROL service manual. Carry out the maintenance work.
Page 38: Trouble Shooting: Possible Cause
Operation Trouble shooting: Possible cause ---Remedy The removal of faults that are not explicitly described in this service manual may only be carried out by KAESER or by an authorised KAESER service agency. 8.6.1 Airend temperature is too high (greater than 167•F-- 200•F)
Page 39: Motor Overload Relay Switches The Unit Off
Operation 8.6.2 Motor overload relay switches the unit off Possible cause: Remedy: Overload relay is defective or setting is Check line current and adjust overload wrong. relay as necessary. Replace relay if defective. Motor is running two phase: defective Check input power, check wiring, tigh- motor or blown fuse.
Page 40: Oil Leaks Out Of Air Filter
Full -- load/Idle sequence occurs too frequently (short cycles) Possible cause: Remedy: Receiver tank size is too small or there Consult authorized KAESER distributor is no tank. for recommended tank size. Diameter of hose connecting the unit Connecting hose diameter should not to the receiver tank is too small.
Page 41: Excessive Oil Consumption
Possible cause: Remedy: Wrong oil is being used in the unit. Replace with correct oil type. Consult authorized KAESER distributor for other oil types not listed. Oil separator cartridge has ruptured. Check pressure differential and re- place oil separator cartridge if neces- sary.
Page 42: Maintenance
Maintenance Maintenance Observe the following rules during all maintenance and servicing work: Work on power driven equipment may only be carried out by trained or specialized personnel. Follow all applicable OSHA and local safety regulations. If a power failure occurs, the compressor package starts again auto- matically (normal setting) provided the line pressure is lower than the pressure threshold parameter entered in SIGMA CONTROL.
Page 43: Regular Maintenance
6000/12000 hours or at Have the compressor motor bearings relubrica- least within three years ted by authorized KAESER distributors* * The maintenance period can vary depending on the cycle rate and environmental conditions. We urgently recommend that a record is kept of the maintenance work done (see chap- ter 9.16).
Page 44: Opening And Closing The Compressor Package
Maintenance Opening and Closing the Compressor Package To open: Open the maintenance door (1). Move the lever (A) in the direction of the arrow and lift up the maintenance door (2). Loosen the screws (B) and remove the panel (3). To close: Close the panel (3) the maintenance door (2) and the maintenance door (1) in the re- verse order.
Page 45: Checking The Drive Belt Tension
Remove the V---belts. It is essential that replacement belts are all precisely the same length Attention! (each set) and absolutely oil -- proof. For this reason we recommend that only original KAESER drive belts are used. 9 --- 40...
Page 46: Cleaning Or Replacing The Filter Mat
Maintenance Place the new V---belts over the motor and compressor pulleys without straining them. Set the belt drive tension (see chapter 9.4). Attention! Check the belt drive tension after 2 hours of operation and then again after 24 hours of operation, as experience shows that the belts stretch mostly during this period.
Page 47: Cleaning Or Replacing The Air Filter
Screw on the wing nut (3) tightly. Servicing the Electric Motor Compressor motor: The electrical motor bearings are permanently greased. Attention! Have the motor bearings replaced by authorized KAESER distributors in accordance with the maintenance schedule (see chapter 1.9). 9 --- 42...
Page 48: Testing The Safety Relief Valve On The Oil Separator Tank
SIGMA CONTROL. See chapter 1.5 for the safety relief valve activating pressure. Attention! Have the safety relief valve tested by an authorized KAESER distribu- tor in accordance with the maintenance schedule (see chapter 9.2). For more details see SIGMA CONTROL manual.
Page 49: Oil Filter Change
Maintenance The pressure gauge on the oil separator tank must indicate zero psig. Oil mist can escape when the oil separator tank is vented. Insert the nozzle (6) in the hose coupling (3) on the oil separator tank. The residual pressure in the oil separator tank escapes.
Page 50: Oil Top
Maintenance 1 Oil filter cartridge 2 Turn in this direction to unscrew the cartridge Twist the used or contaminated oil filter cartridge counter clockwise to remove and catch escaping oil in a suitable container. Dispose of the old oil filter and any used, accumulated oil according to environmental care regulations! Clean the face of the combination block with a lint free cloth.
Page 51 Maintenance Venting the compressor package (see chapter 9.10). 1 Ball valve 4 Filler plug 8 Maximum oil level A shut (oil top --- up) 9 Ball valve --- oil drain B open 5 Oil separator tank 10 Oil drain hose 2 Pressure gauge 6 Nozzle 11 External pressurization...
Page 52: Cleaning The Oil Cooler And Aftercooler
Maintenance 9.13 Cleaning the Oil Cooler and Aftercooler The oil cooler and air aftercooler must be checked for clogging regularly. Heavy contami- nation could lead to excessive temperatures in the oil circulation system. See regular maintenance schedule for cooler maintenance interval (chapter 9.2). Switch off the compressor package under full load (see chapter 8.3).
Page 53: Oil Change (Oil Separator Tank And Oil Cooler)
Maintenance 5 Hexagonal nut 6 Allen screw Unscrew the hex bolt (5). The hex socket head bolts (6) are located behind two protective caps. Attention! Before unscrewing the two hex socket head bolts (6) prop up the com- bination oil/air aftercooler. Remove the protective caps and unscrew the two hex socket head bolts (6).
Page 54 Maintenance Oil change must be carried out with warm to the touch condition of the compressor pack- age (Oil temperature approx. 104•F). Danger of scalding with hot oil. When inserting the maintenance hose into the compressor’s hose couplings, always have the ball valve closed and the hose end se- cured before slowly opening the ball valve.
Page 55: Oil Change Using External Pressure Source
Maintenance Before opening or removing pressurized components (pipes, hoses, tanks, etc.) it is imperative that the compressor package is completely depressurized. Venting the compressor package (see chapter 9.10). 9.14.1 Oil change using external pressure source Close the ball valve (1). Insert the nozzle (6) in the hose coupling (3) on the oil separator tank (5).
Page 56: Oil Top
Maintenance 9.14.2 Oil top -- off Unscrew the oil filler plug (4) on the oil separator tank. Attention! Always use the same brand and type of oil when topping off the oil. (see label on the oil separator tank). During an oil change, drain the old oil completely and always replace the oil filter.
Page 57: Procedure For Putting Back Into Operation
Maintenance 9.14.4 Procedure for putting back into operation Refer to chapter 7.8.1 and follow the instructions in section ‘‘Pouring a small quantity of oil into the air inlet port” . Refer to chapter 7.8.2 and followthe instructions in section ”Running the compressor package in idle”.
Page 58 Maintenance 2 Hose coupling 5 Cover 9 O ---Ring 3 Pressure gauge 6 Gasket 10 Gasket 4 Hexagonal nut 7 Staple 11 Dirt trap screen filter 8 Oil separator cartridge 12 Screw fitting with jet Do not remove the staples (7) in the gaskets (6). The metal parts of the oil separator cartridge are electrically conduc- tive and thus have to be grounded: The gaskets (6) are supplied with heavy staples to provide an electri-...
Page 59 Maintenance Perform a test run When the operating temperature is reached (see chapter 1.1), shut down the compressor package (see chapter 8.3) and lock the main disconnect in the ”off” position in accordance with applicable lock out/ tag out procedures (example: OSHA CFR 29 § 1910.147) to ensure the compressor does not restart.
Page 60: Maintenance Schedule
Maintenance 9.16 Maintenance Schedule Model No....... . Serial No......Date Description of work Operating hours...
Page 61: Spare Parts And After Sales Service
Spare Parts and After Sales Service 10.1 Service parts and maintenance parts The removal of faults that are not explicitly described in this service manual may only be carried out by KAESER or by an authorised KAESER service agent. Model Part No.
Page 62: Service And Maintenance Agreement
Dirt screen filter Gasket V---belt set 1800 10.2 Service and Maintenance Agreement We recommend that you take out a service and maintenance agreement with an author- ized KAESER distributor. This is your best guarantee of reliable air supplies. 10 --- 57...
Page 63: Appendix
Appendix Appendix 11.1 Wiring Diagram 11 --- 58...
Page 80: Spare Parts List
Appendix 11.2 Spare Parts List 11 --- 75...
