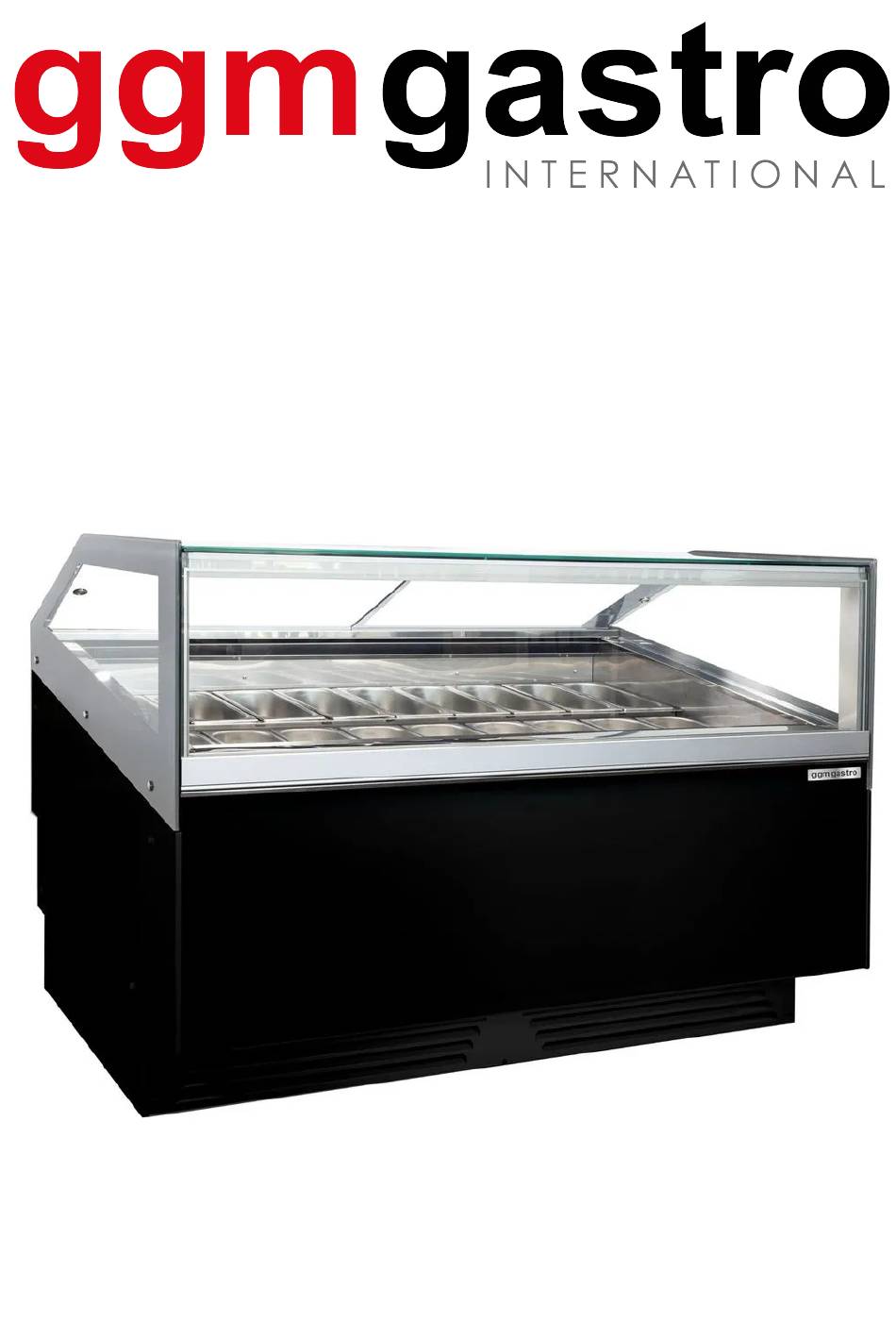

- Page 1 OPERATION MANUAL ETC121S, ETC171S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.CONGRATULATIONS AND THANK YOU! ..................2 2.SYMBOLS IN MANUAL ........................3 3.ELECTRICAL CONNECTION NOTICE ....................4 4. WARNINGS & SAFETY ........................5 5. LIFTING AND TRANSPORTATION ....................7 6. DESCRIPTION OF THE MACHINE ....................8 7. TECHNICAL DATA ........................10 8. -
Page 3: Congratulations And Thank You
1.CONGRATULATIONS AND THANK YOU! Thank you for choosing our product. If you encounter a problem with machine, please contact your local service technician. Please familiarize yourself with the machine by taking some time to study this manual. If you get to know this little ice-cream factory, it has the potential of making good profit. BEFORE USING THE MACHINE READ CAREFULLY THIS MANUAL. -
Page 4: Symbols In Manual
2.SYMBOLS IN MANUAL WARNING When you see this symbol on your freezer or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. ELECTRIC DANGER This symbol indicates the presence of electric shock hazards. NOTE It points out significant information for the stuff involved. -
Page 5: Electrical Connection Notice
3.ELECTRICAL CONNECTION NOTICE 1. Please make sure that the power supply conforms to the electrical data label (Rating Plate). 2. Check the data label (Rating Plate) for the required circuit breaker amperage. Only plug into an electrical wall socket that complies with the required amperage of the machine. 3. -
Page 6: Warnings & Safety
4. WARNINGS & SAFETY Read and understand all safety messages in this manual. The information provided in this manual concerns your safety. Read and understand the safety decals on your freezer. To safeguard both the display unit and the operator, all safety equipment must be kept in good working order. - Page 7 Never open the panels to reach inside the Freezer body. (Only by authorized technicians) Technical maintenance must be done by authorized technicians. Using non-original spare parts can cause the display unit to malfunction in a way that is hazardous for the operator and persons in the vicinity.
-
Page 8: Lifting And Transportation
5. LIFTING AND TRANSPORTATION WARNINGS FOR SAFE OPERATION Pay due attention to legally required safety measures. At work wear suitable clothing. Do not wear ties, jeweler’s chains or belts, which could get caught in the machine. Do not shift or dislocate the safety switches or protective parts. Make sure that the lifting device is in good condition and that its load Capacity exceeds the weight of the appliance (refer to the technical specifications data sheet). -
Page 9: Description Of The Machine
6. DESCRIPTION OF THE MACHINE Figure 1 PART NAME QUA. Foamed Tube Basement Refrigeration System Electrical Equipment Front Panel Glass Frame Inner Tube Table 1... - Page 10 1. FOAMED TUBE It is the insulating element which keeps the system cold. Its interior is made of stainless steel and its exterior is made of galvanized or laminated stainless steel. 2. BASEMENT The basement supports the machine. It is made of galvanized or coated metal tubing. It contains electrical equipment and condenser and condensate extraction system.
-
Page 11: Technical Data
7. TECHNICAL DATA ETC121S ETC171S Features Dimension 1201 x 1167 x 1215 1775 x 1205 x 1175 (mm) Pan Capacity 12 x 5 lt - 8 x 7 lt 18 x 5 lt - 12 x 7 lt (Lt) Power Consumption... -
Page 12: Installation
8. INSTALLATION 8.1 BEFORE THE INSTALLATION The following must be observed before using the product and installing. Do not place your product in the area of direct sunlight, heat sources such as stove, heating pad, oven, cooker, radiant and infrared. ... -
Page 13: Selection Of Installation Place
8.2 SELECTION OF INSTALLATION PLACE In order for your product to work smoothly, the environment in which the it will work is very important. Before you install the product, pay attention to the following items. Do not position your product so that it is exposed to open air. ... -
Page 14: Starting
9. STARTING Before operating the product, clean the product according to the cleaning instructions. The components on the control panel at the bottom of the product and their working modes are as follows. Green Key: It provides energy to the device. Yellow Key: The LED on the device allows the lights to be turned on. - Page 15 (DEF) By holding it pressed for 3 sec the defrost is started. (LIG) Switch ON and OFF the cold room light. (ON/OFF) Switch ON and OFF the instrument KEY COMBINATIONS To enter the programming mode. To exit the programming mode.
- Page 16 USE OF LEDS Each LED function is described in the following table. Mode Function Compressor enabled - Programming Phase (flashing with LED FLASHING - Anti-short cycle delay enabled Fans enabled FLASHING Programming Phase (flashing with LED The defrost is enabled FLASHING Defrost or drip time in progress The controller is working in “ALL”...
- Page 17 On/Off Function By pushing the ON/OFF key, the instrument shows “OFF”. During the OFF status, all the relays are switched OFF and the regulations are stopped; if a monitoring system is connected, it does not record the instrument data and alarms . LOCAL ALARMS Display Cause...
-
Page 18: Use
10. USE Be sure to read the manual carefully before using the device. Before you start up the machine, the following must be checked by licensed and specialised technical staff: • System hooked up and earthed correctly. • System hooked up to its electrical and water supplies correctly. The machine is designed to expose the ice cream to the temperature requested by the client, which may not be lower than -18/-20°C. - Page 19 Remove the product stored in the cooling compartment of the device and place it in the housing of a special refrigerator to ensure proper storage. Disconnect the electrical connection by pulling the device's plug from the socket. Remove all equipment that can be removed manually. ( Ice cream cuvette, sleds etc.) ...
