- Page 1 User Guide Direktronik Connect Omanagerad 5xPoE...
-
Page 2: Packing List
Packing List When using the Switch for the first time, carefully open the packing box. The packing box should contain the following items: ➢ Switch *1 ➢ User Manual *1 ➢ Power Cord *1 Note: Precision devices are built in the device, please handle them carefully to avoid violent vibration, which may affect the performance of the device. -
Page 3: Chapter 2 Product Appearance Description

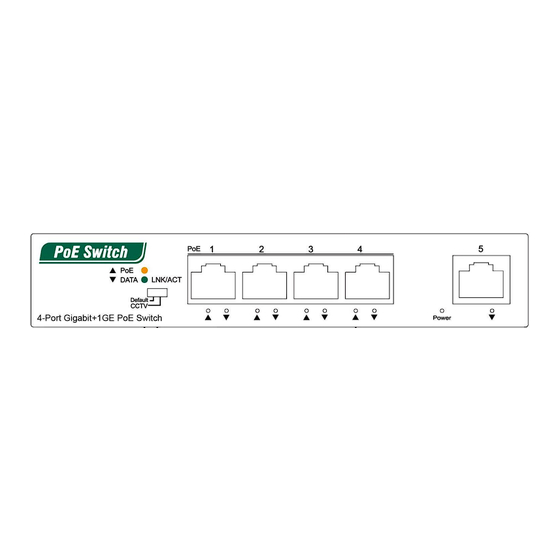

Chapter 2 Product Appearance Description 2.1 Front panel The front panel consists of 5*10/100/1000Mbps adaptive RJ45 ports and related indicators, as shown in the following figure: Figure 2-1 Front panel of 20117387 ➢ 10/100/1000Mbps RJ45 Ports Supports 10Mbps, 100Mbps and 1000Mbps rate adaptation, and supports auto-MDI /MDIX. 1-4 ports support PoE power supply. -
Page 4: Rear Panel
running status of the Switch conveniently and quickly through the following indicators: Function Color Off: No Power supply. Green Light: Indicates the Switch has power. Off: No PoE powered device (PD) connected. Light: There is a PoE PD connected to be port, which Orange supply power successfully. -
Page 5: Chapter 3 Installation Guide
Chapter 3 Installation Guide This chapter helps users correctly install and safely use Switches. 1. Installation Precautions Precautions: To avoid equipment damage and personal injury, observe the following precautions: ➢ The Switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference. -
Page 6: Installation
➢ Ensure the stability of the workbench and good grounding; ➢ Check whether cables and connectors required for installation are in place (less than 100m). ➢ Environment requirements: The operating temperature ranges from 0°C to 40°C and the relative humidity ranges from 5% to 90%. 3.3 Installation Wall mounted installation ➢... -
Page 7: Appendix: Technical Specifications
Appendix: Technical Specifications Model Direktronik Connect Omanagerad 5xPoE IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3x, Standard IEEE802.3af, IEEE802.3at 10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） Network Media(Cable) 1000BASE-T: UTP category 5e, 5 cable（≤100m） MAC Address Table 2K, Auto-learning, Auto-aging...
