Best.nr: 20102192
2-PORT 4K HDMI KVM Switch
The device supports switching two computer's HDMI video and USB signals to one
monitor and USB signals' device.
Apply to bank, transportation, education, home, conference, hotel, etc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20102192 and is the answer not in the manual?

Questions and answers

Related Manuals for DirekTronik 20102192

Summary of Contents for DirekTronik 20102192

  • Page 1 Best.nr: 20102192 2-PORT 4K HDMI KVM Switch The device supports switching two computer’s HDMI video and USB signals to one monitor and USB signals’ device. Apply to bank, transportation, education, home, conference, hotel, etc.

  • Page 2: Dear Customer

    Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES Maximum resolution support 4K30Hz RGB4:4:4, 8 Bit ...
  • Page 3 Operating Instructions 2). VESA Resolution（RGB8bit） Refresh Copy Resolution Rate mode 800×600 60HZ √ 1024×768 60HZ √ 1280×768 60HZ √ 1280×1024 60HZ √ 1600×1200 60HZ √ 1680×1050 60HZ √ 1920×1080 60HZ √ 1280×720 60HZ √ 1360×768 60HZ √ 1920×1200 60HZ √ 3840×2160(YUV420) 60HZ √...
  • Page 4 Operating Instructions HOW TO USE KEYBOARD HOT KEYS: Under the condition that the input and output are all connected normally, press the Ctrl button twice in a row to enter the control state, and complete the function control within 10 seconds (otherwise, exit the control state).

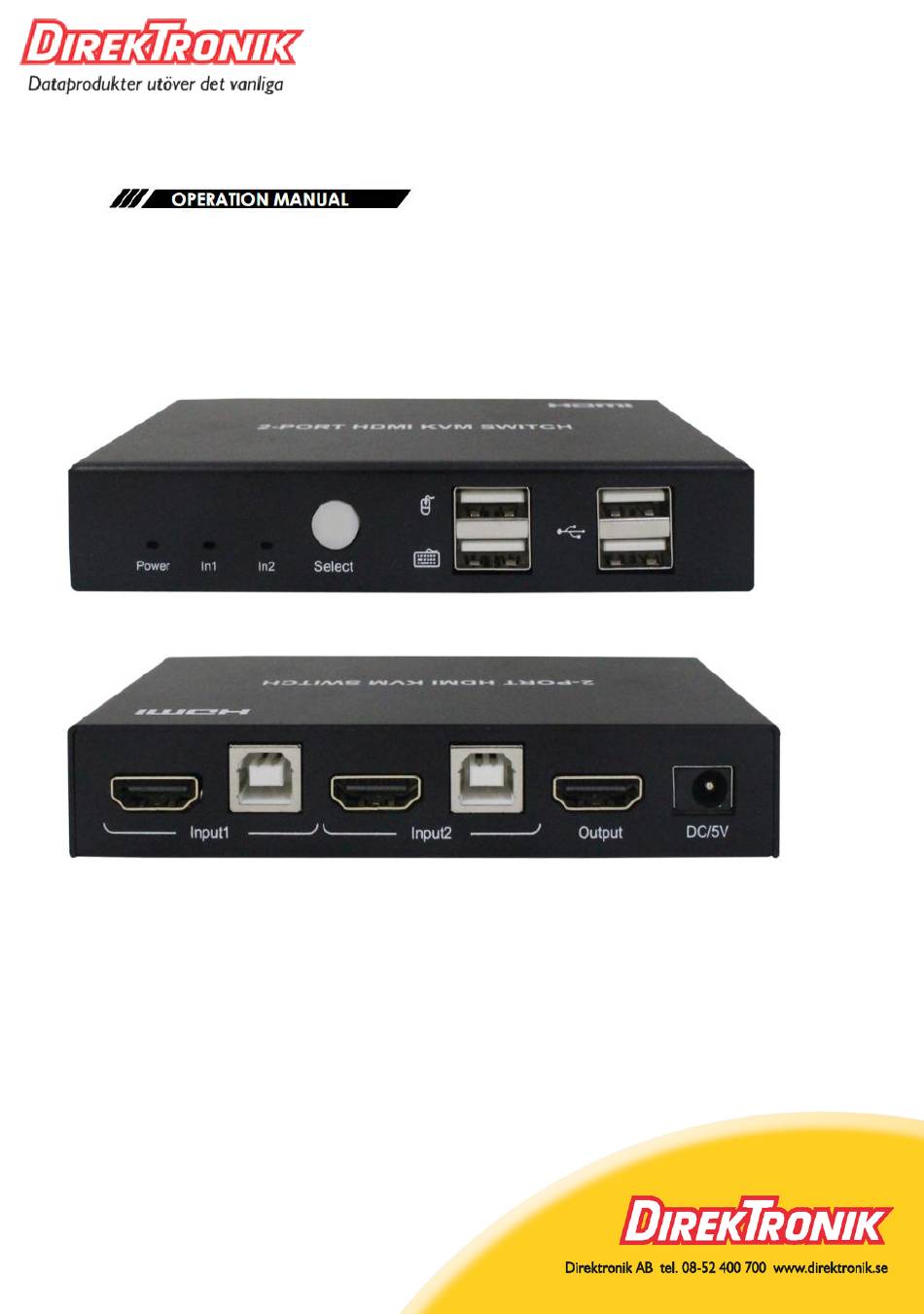

  • Page 5: Panel Descriptions

    Operating Instructions PANEL DESCRIPTIONS Front Panel 1) Indicator light: POWER & IN 1,2 Note: The red and green dual-color indicator indicates the status of the input port. The green light indicates the input HDMI connection, and the red light indicates the USB Type B cable connect to the computer.

  • Page 6: Connection Diagram

    Operating Instructions CONNECTION DIAGRAM SPECIFICATIONS 1). Input resolution list Resolution Resolution Color Space Support 720*576 √ √ 50Hz 1280*720 √ √ 1920*1080 √ √ 720*480 √ √ 59.97/60Hz 1280*720 √ √ 1920*1080 √ √ 1280*720 √ √ 29.97/30Hz 1920*1080 √ √...

  • Page 7: Maintenance

    Operating Instructions Problems Solutions Try below ways: 1. Unplug and plug the USB keyboard and mouse 2. Make sure the USB cable connections from KVM Keyboard and mouse don’t work at all no switch to host devices are all correct matter which input port is switched to 3.

  • Page 8: Warranty

    Operating Instructions WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
