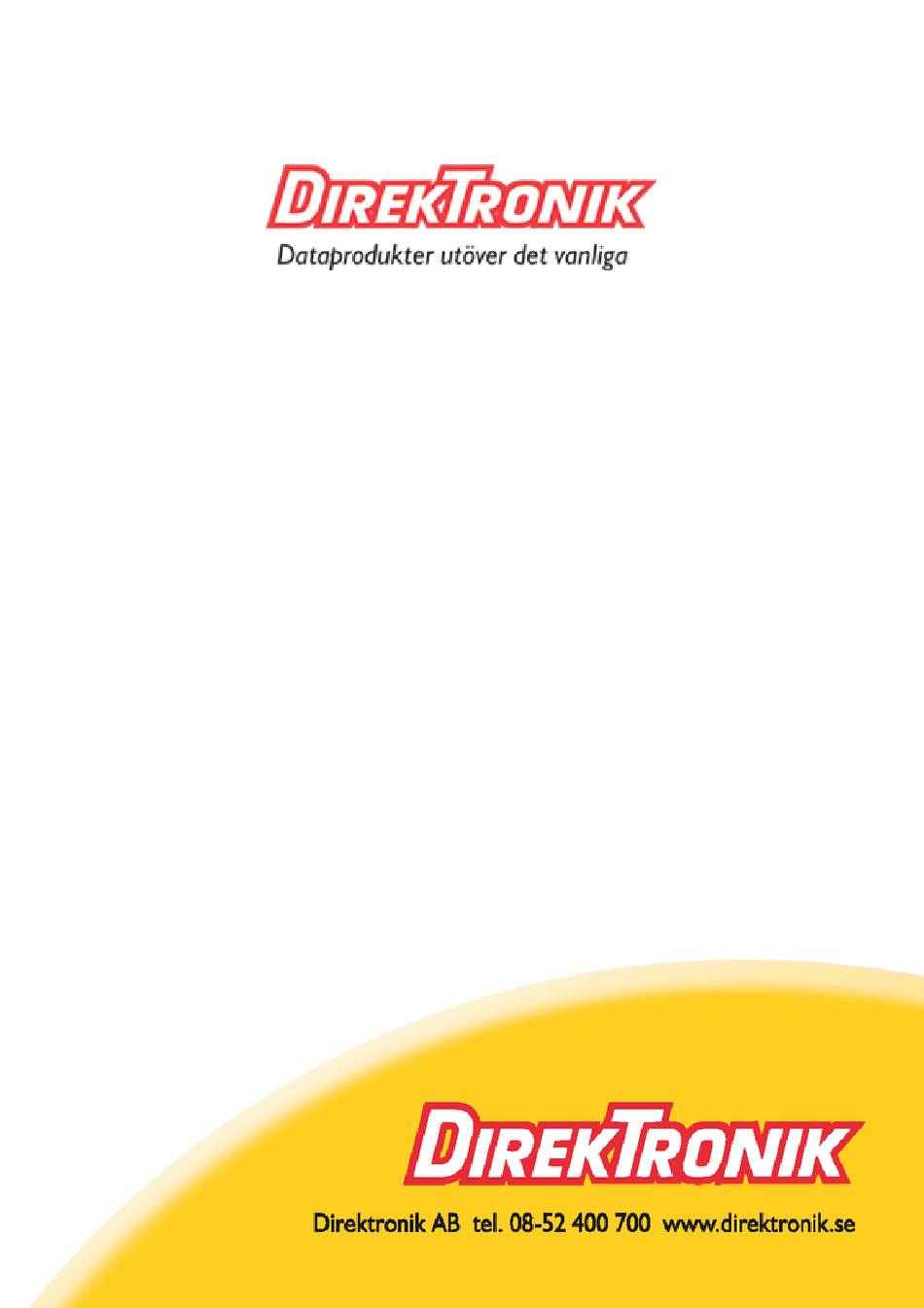

- Page 1 User Guide Direktronik Connect Omanagerad 4+4xPoE...

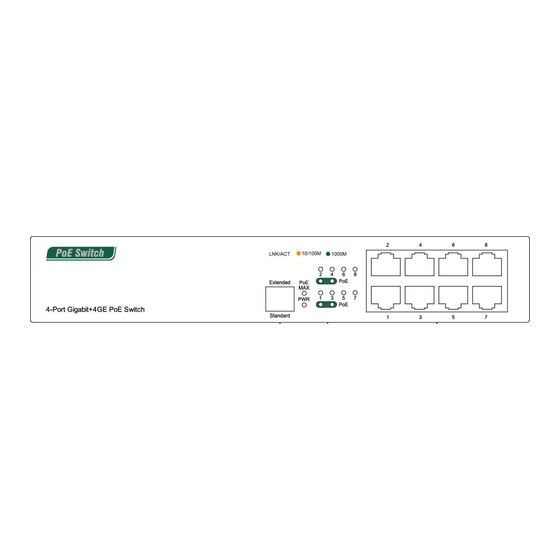

- Page 2 Package Contents Check the following contents of your package: ⚫ PoE Switch *1 ⚫ User Guide *1 ⚫ Power Cord *1 ⚫ Accessories(Rubber Feet*4) If any part is lost and damaged, please contact your local agent immediately. Introduction 20117389 is Fast uplink Switch which provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps.
-
Page 3: Led Indicator
LED indicator Color Function Off: No Power supply. Green Light: Indicates the switch has power. PoE MAX Green Light: Indicates the PoE usage is 85%~100% Off: No device is connected to the corresponding port. Light:：Indicates the link through that port is successfully Established Orange at 10/100Mbps. -
Page 4: Desktop Installation
Installation the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. ⚫ Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid; ⚫... -
Page 5: Turn On The Switch
Wall-mounted installation In the first two fixed screw on the wall as shown in the figure below Aim at the two fixed hole switches, and the machine smoothly on the screw Turn on the switch Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded). When the switch is power on, the LED indicators flash momentarily for one second, which represents a resetting of the system. -
Page 6: Specifications
Specifications Model Direktronik Connect Omanagerad 4+4xPoE IEEE802.3, IEEE802.3u, IEEE802.3ab ,IEEE802.3az, IEEE802.3x,IEEE802.3af, Standard IEEE802.3at 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 Network Media cable (≤100m) 1000BASE-T: UTP category 5e cable (≤100m) MAC Address Table 4K, Auto-learning, Auto-aging Transfer mode...
