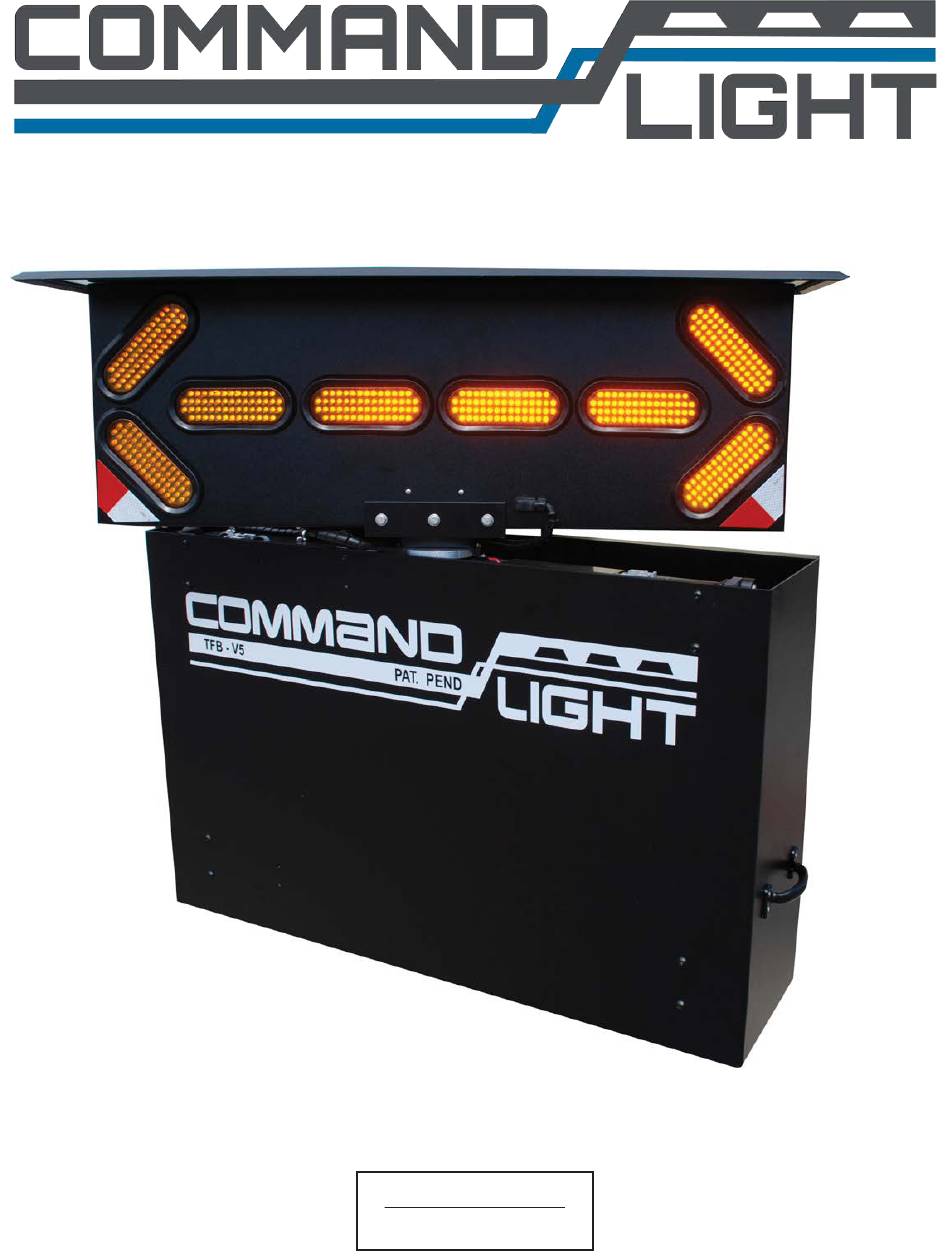

- Page 1 TRAFFIC FLOW BOARD TRAFFIC FLOW BOARD Effective June 2024 This guide supersedes all previous versions MODEL COVERED: 3842 Redman Drive 1-800-797-7974 TFB-V5 Fort Collins, CO 80524 www.CommandLight.com...
- Page 3 TFB-V5 THANK YOU Please allow us to express a simple thank you for investing in a COMMAND LIGHT product. As a company, we are dedicated to producing the very best and most versatile flood lighting package available. We take great pride in the quality of our work and hope that you will find many years of satisfaction from the use of this equipment.
- Page 4 USER GUIDE...
-
Page 5: Table Of Contents
TFB-V5 Read this manual before installing or operating the TRAFFIC FLOW BOARD. Save this guide for future reference. Contents LIMITED WARRANTY ..........................4 BREAKAGE OR DAMAGE DURING SHIPMENT ................. 5 GENERAL DESCRIPTION AND SPECIFICATIONS ................6 PRODUCT SAFETY PRECAUTIONS ....................6-7 ANGLE OF OPERATION ........................... -
Page 6: Limited Warranty
Hourly rates for service are to be determined at the time of authorization by COMMAND LIGHT, travel time is paid at a maximum of 50% of the authorized service rate. -
Page 7: Breakage Or Damage During Shipment
Any unauthorized service voids this warranty. No work is authorized until written consent is provided by COMMAND LIGHT. Contact Us Early — before any work is done — We’d love to help! *Excludes light producing components (bulbs, lasers, LEDs) These components may come with their own manufacturer warranty. -
Page 8: General Description And Specifications
USER GUIDE General Description and Specifications The COMMAND LIGHT TRAFFIC FLOW BOARD LIFT is designed to provide the means to elevate a high-intensity arrow board for emergency scene traffic direction with quick precision. As with any electromechanical device, take precautionary steps to assure safe operation Never operate the TRAFFIC FLOW BOARD near overhead power lines. -
Page 9: Angle Of Operation
TFB-V5 [ Do not use a TRAFFIC FLOW BOARD that has been damaged or is not fully functional, including non-working indicator lamps. [ Never hold any part of the TRAFFIC FLOW BOARD with a hand or foot while it is in motion. -
Page 10: Operation
USER GUIDE Operation Raising the TRAFFIC FLOW BOARD from the nested position: Use the control box to raise the TRAFFIC FLOW BOARD to the maximum height. Control unit switches are of momentary action style and must be held in the “ON” position to activate the unit. Once motion has started, the switch may be released. -
Page 11: Installation
Failure to provide access to at least one of the service panels on the side of the TRAFFIC FLOW BOARD may result in extended service time and may require removal of the unit. This additional time is not covered under the COMMAND LIGHT 5 year limited warranty. -
Page 12: Mounting
USER GUIDE Mounting The TRAFFIC FLOW BOARD is packaged with lift brackets mounted to each side. These are only used for installation and will be removed before after installation is complete. Attach any necessary lifting attachments to the unit. Lift and place the TRAFFIC FLOW BOARD into position above the installation pocket. -
Page 13: Warning Device Installation
TFB-V5 Electrical Wiring Run the control wire from the TRAFFIC FLOW BOARD to the Control Box Holster. Run the power wire from the vehicle 12VDC power source or generator to the TRAFFIC FLOW BOARD. A 15 Amp breaker is recommended for the TRAFFIC FLOW BOARD. -
Page 14: Technical Specifications
Weight: 150 pounds Wiring: 12 VDC 50 ft 6/2 cable Control wiring 50 ft 22/20 cable Command Light recommends using 6 gauge wire for input power. Relay protection: Electrical Cole-Hersee 3055 15 Amp Current Draw / Power Requirements: Full load current draw 15 amps at 12VDC... - Page 15 TFB-V5...
-
Page 16: Exploded View And Parts List
USER GUIDE Exploded Views and Parts List: Arrow Board... -
Page 17: Control Array
TFB-V5 Control Array... -
Page 18: Surround
USER GUIDE Surround: Parts List PARTS LIST ITEM PART NUMBER DESCRIPTION 076-30043 COVER, FRONT, LOWER, TFBV5 076-30047 BASE, SURROUND, TFBV5 076-30048 SURROUND, FRAME, TFBV5 076-30049 COVER, FRONT, SURROUND, TFBV5 076-30075 PAN, INSTALLATION, LOWER, TFBV5 076-30044 COVER, ACCESS, CONTROL ARRAY, TFBV 076-30056 MOUNT, ANGLE, FRONT-REAR, TFBV5 076-30059... - Page 19 TFB-V5 Surround: Exploded View...
-
Page 20: Carriage
USER GUIDE Carriage Assembly : Parts List... - Page 21 TFB-V5 Carriage Assembly : Exploded View...
-
Page 22: Carriage Frame
USER GUIDE Carriage Frame: Parts List PARTS LIST ITEM PART NUMBER DESCRIPTION 076-30009 BRACE, SIDE RAIL, TFBV2 076-30008 EXTRUSION, MAIN RAIL, TFBV5 076-30021 NUT, DOUBLE HOLE, RAIL, TFBV2 076-30036 BRACKET, CENTERING BLOCK, TFBV 069-01107 SCREW, BH, HEX, 8x1.25x16, SS 069-01116 SCREW, FHSH, M8x1.25x16 069-01119 WASHER, LOCK, SPRING, REGULAR, M8, SS... - Page 23 TFB-V5 Carriage Frame: Exploded View FRAME, CARRIAGE, TFB-...
-
Page 24: Wiring
USER GUIDE Wiring... - Page 25 TFB-V5...
