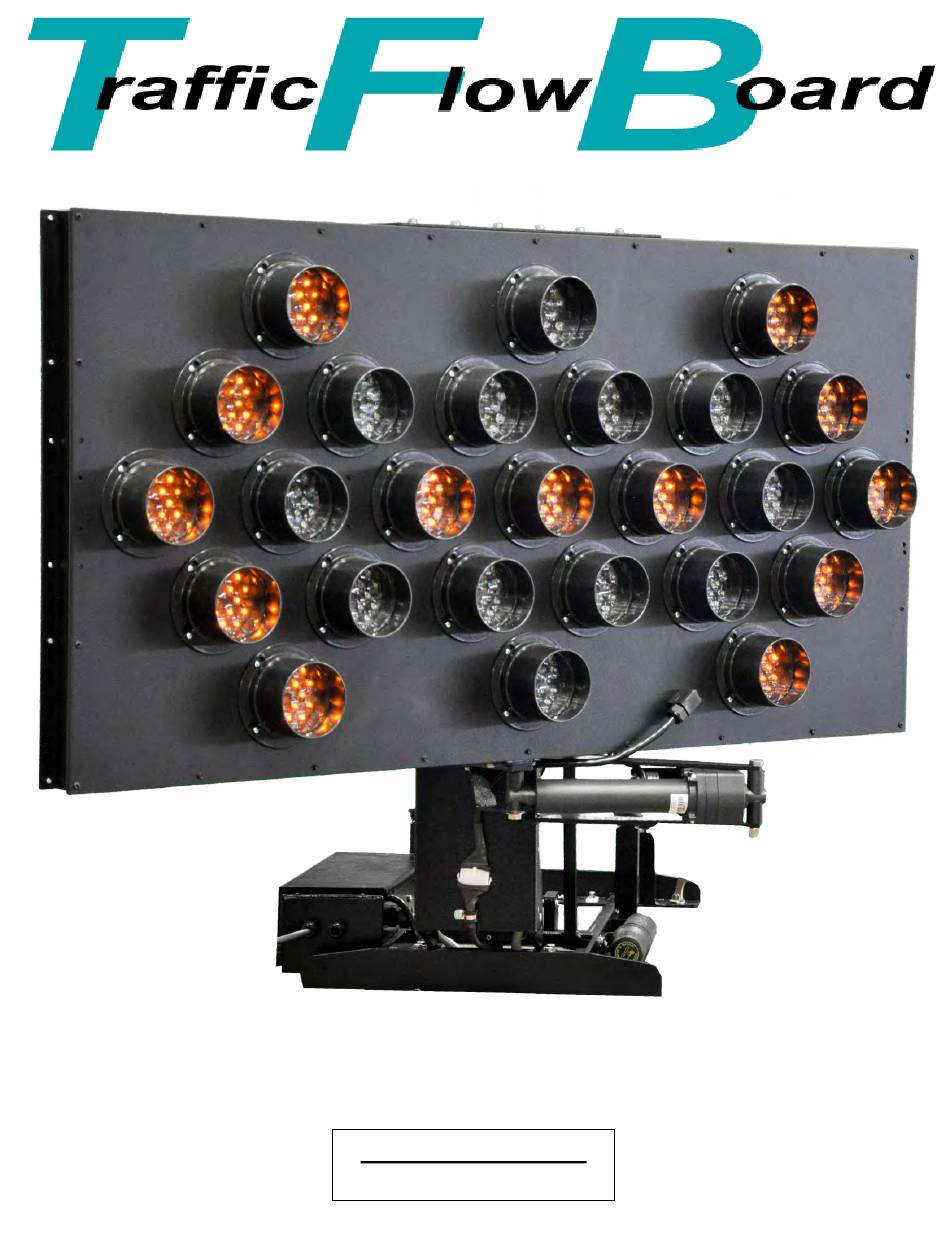

- Page 1 Effective October 2024 This guide supersedes all previous versions MODEL COVERED: TFB-H7 3842 Redman Drive 1-800-797-7974 Fort Collins, CO 80524 www.CommandLight.com...
- Page 3 TFB-H7 THANK YOU Please allow us to express a simple thank you for investing in a COMMAND LIGHT product. As a company we are dedicated to producing the very best and most versatile flood lighting package available. We take great pride in the quality of our work and hope that you will find many years of satisfaction from the use of this equipment.
- Page 4 USER GUIDE...
-
Page 5: Table Of Contents
TFB-H7 Read this manual before installing or operating the TFB-H7. Save this guide for future reference. Contents Breakage or Damage During Shipment ....................7 Product Safety Precautions ........................8 General Description and Specifications ....................9 Operation ..............................9 Raising the tower from the nested position ....................9 Returning the tower to the nested position .................... -
Page 6: Limited Warranty
COMMAND LIGHT warrants that the equipment is free from defects in materials and workmanship when used and operated for a period of five years. The responsibility of COMMAND LIGHT under this limited warranty is limited to the repair and replacement of any parts found defective. Parts must be returned to COMMAND LIGHT at 3842 Redman Drive, Ft Collins, Colorado 80524 with transportation charges prepaid (C.O.D. -
Page 7: Breakage Or Damage During Shipment
TFB-H7 Breakage or Damage During Shipment The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it correctly. Please read these instructions carefully. Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a description on the freight or express bill describing the damage and the number of pieces. -
Page 8: Product Safety Precautions
• Never use the Command Light TFB-H7 as a lifting device or mobile arm. • Do not use a Command Light TFB-H7 that has been damaged or is not fully functional, including non-working indicator lamps. • Never hold any part of the Command Light TFB-H7 with a hand or foot while it is in motion. -
Page 9: General Description And Specifications
“on” position to actuate the stages. The TFB-H7 has an override system that precludes rotation of the flow board until the lower stage has elevated substantially enough from the nested position. When the lower stage is below this safety limit, the following conditions exist: •... -
Page 10: Installation
USER GUIDE Installation The TFB-H7 must be installed by a designated installation facility or by an EVT certified Level FA4 Technician. All safety precautions must be thoroughly understood before installation. Please consult the factory for additional installation information assistance. Improper installation can cause overheating of electrical power wires that could catch fire and void the warranty. -
Page 11: Installation Notes
When routing the connecting electrical wires take care to avoid sharp bends, hot components or other hazards to the wire. The TFB-H7 is not designed to be operated in a raised position while the vehicle is in motion. The TFB-H7 includes warning circuit wiring to enable a warning device. -
Page 12: Mounting
Control Box Holster Mounting Using the holster as a template, mark locations of holes. Drill ” mounting holes. Drill any holes required to route the control wire from the control box to the TFB-H7. Mount holster box with provided hardware. -
Page 13: Electrical Wiring
Run the control wire from the control box holster to the TFB-H7. Run the power wire from the breaker box or generator to the TFB-H7. A 30 Amp breaker is recommended on a TFB-H7. Make the control cable connections in the TFB-H7 relay box by matching each control wire to its same color on the connector block of the TFB-H7 relay box. -
Page 14: Maintenance
Power Failure The TFB-H7 can be retracted manually if power to the unit is lost. If power loss is temporary, reestablishing power may be easier than manually retracting the tower. -
Page 15: Troubleshooting
Override Circuit The TFB-H7 has an override circuit to allow the user to lower the tower no matter what state the sensors or rotation actuator are in. This is a failsafe for if a sensor fails in the field and the tower still has power. -
Page 16: Technical Specifications - Standard H7 Model
USER GUIDE Technical Specifications – Standard H7 Model Dimensions (with strobe and ½” mounting spacers) – May vary by model and options: Height(Depth) Length Width Retracted 16” 47” 60” Extended 44” 51” 60” Recessed installation 18” 60” 66” Minimums Weight: 136 pounds Wiring: Main Power VDC... -
Page 17: Specifications
TFB-H7 Specifications... -
Page 18: Parts Lists - Exploded Views
USER GUIDE Parts Lists - TFB-H Base Assembly... - Page 19 TFB-H7 Exploded Views - TFB-H Base Assembly...
-
Page 20: Wiring Schematics
USER GUIDE Wiring Schematics... - Page 21 TFB-H7...
