TRIDENT TRIPOD
Effective November 2022
This guide supersedes all previous versions
MODELS COVERED:
T40D T50D
3842 Redman Drive
1-800-797-7974
Fort Collins, CO 80524
www.CommandLight.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRIDENT TRIPOD and is the answer not in the manual?

Questions and answers

Summary of Contents for Command Light TRIDENT TRIPOD

  • Page 1 TRIDENT TRIPOD Effective November 2022 This guide supersedes all previous versions MODELS COVERED: T40D T50D 3842 Redman Drive 1-800-797-7974 Fort Collins, CO 80524 www.CommandLight.com...
  • Page 2: Table Of Contents

    COMMAND LIGHT TRIDENT TRIPOD THANK YOU Please allow us to express a simple thank you for investing in a COMMAND LIGHT product. As a company we are dedicated to producing the very best and most versatile flood lighting package available. We take great pride in the quality of our work and hope that you will find many years of satisfaction from the use of this equipment.
  • Page 3: Limited Warranty

    Hourly rates for service are to be determined at the time of authorization by COMMAND LIGHT, travel time is paid at a maximum of 50% of the authorized service rate.
  • Page 4: Breakage Or Damage During Shipment

    COMMAND LIGHT TRIDENT TRIPOD WARRANTY CONTINUED Please contact us as soon as problems arise in order to execute our warranty. We must have knowledge of the issue and provide a work authorization in order to pay or reimburse labor or travel time.
  • Page 5: Installation

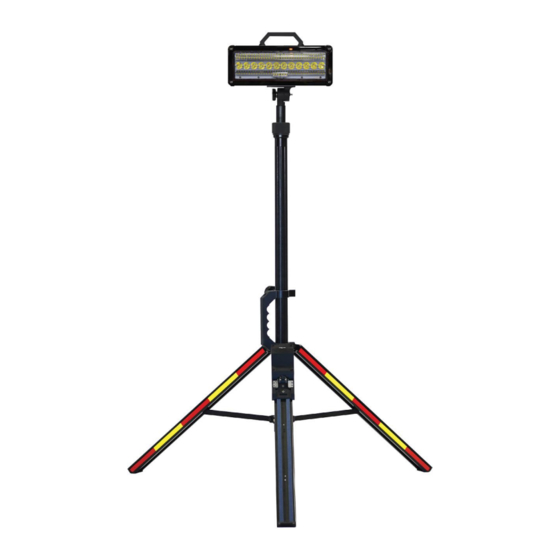

    Mount the quick disconnect using (4) ¼” bolts, (4) ¼” flat washers, (4) ¼” nylock nuts, and and the include gasket. General Description and Specifications The Trident Tripod is specifically designed to provide convenient and portable high intensity emergency scene lighting. As with any electromechanical device, take precautionary steps to ensure safe operation.
  • Page 6 COMMAND LIGHT TRIDENT TRIPOD Estimated Battery Run Time Milwaukee Milwaukee HURST HURST DeWalt DeWalt Makita Makita Model EWXT EWXT 12Ah TXXD-FN min. min. min. min. min. min. TXXD-FS min. min. min. min. min. min. TXXD-W1 min. min. min. min. min.
  • Page 7: Operation

    USER GUIDE Operation • Loosen the main knob and extend the legs as far as possible for the best stability and height, tighten the knob to lock the legs in place. • The rear leg can be extended for use on uneven surfaces. Loosen the extension leg knob and extend the foot out to the desired length, keeping the mast of the tripod as vertical as possible, then tighten the knob.
  • Page 8: Charging The Battery Packs

    COMMAND LIGHT TRIDENT TRIPOD Charging the Battery Packs DeWalt Remove the DeWalt FlexVolt battery from the tripod. Insert in DeWalt Charger. Use only DeWalt brand battery chargers. Using DeWalt AC Fast Charger, batteries will recharge in 60-120 minutes, depending on Amp- Hour rating.
  • Page 9 USER GUIDE Charging the Battery Packs HURST Remove the battery from the tripod. Insert in HURST brand chargers only. When the battery pack temperature is outside the charging range (25-105°F or 4-40°C), the red light on the charger will flash and the battery will not charge. Once the battery pack is within the acceptable temperature range, normal charging will take place.
  • Page 10: Parts Lists/Exploded Views

    COMMAND LIGHT TRIDENT TRIPOD Parts Lists...
  • Page 11 USER GUIDE Exploded Views...
  • Page 12: Wiring Schematics

    COMMAND LIGHT TRIDENT TRIPOD Wiring Schematic...
