ControlByWeb WebRelay X-WR-441 Quick Start Manual page 2

WebRelay
Power
Supply
+5V
50mA Max
(X-WR-441)
C:
NO:
NC:
V IN+:
V IN-:
INPUT-:
INPUT+: Optically-Isolated Input (+)
+5V OUT: 5VDC Output

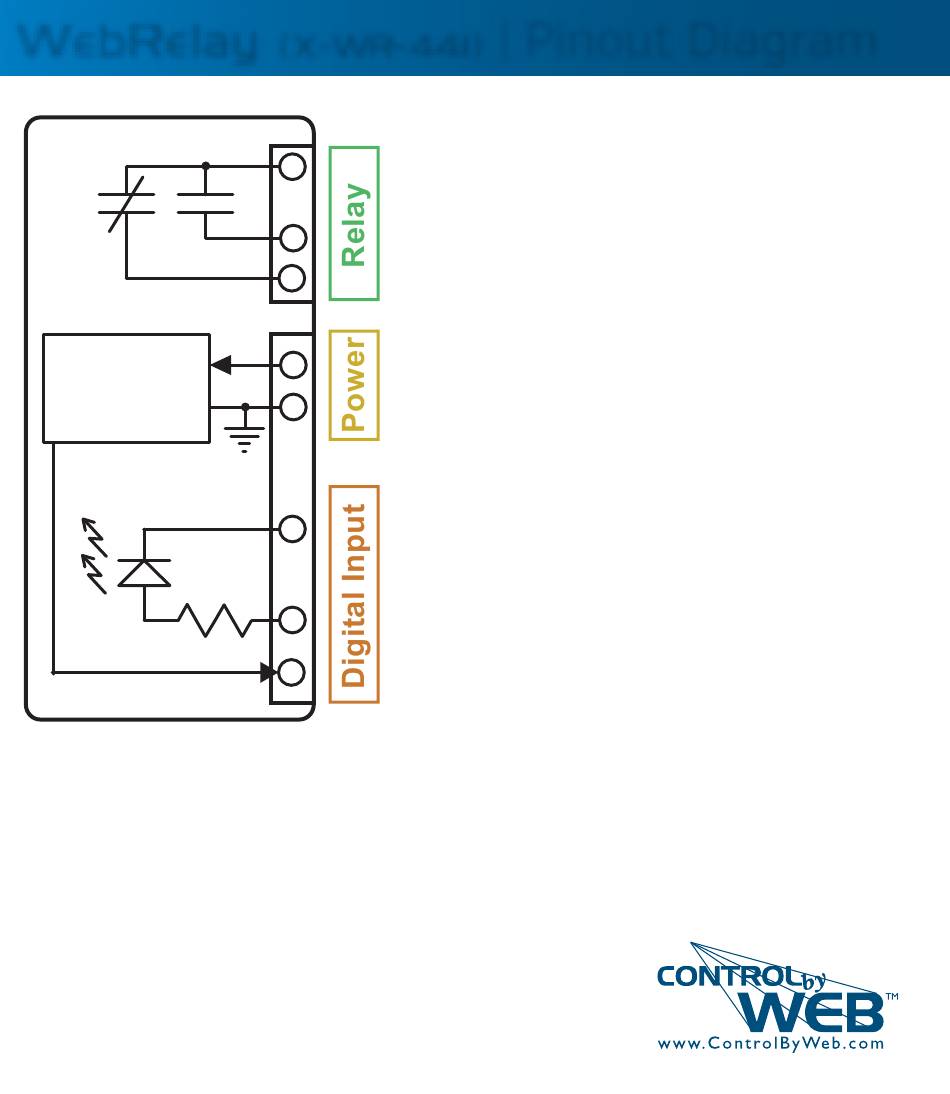

| Pinout Diagram
Relay Contact Common
Relay Contact Normally Open
Relay Contact Normally Closed
Power Supply Input (9-28VDC)
Power Supply Input (Ground)
Optically-Isolated Input (-)
