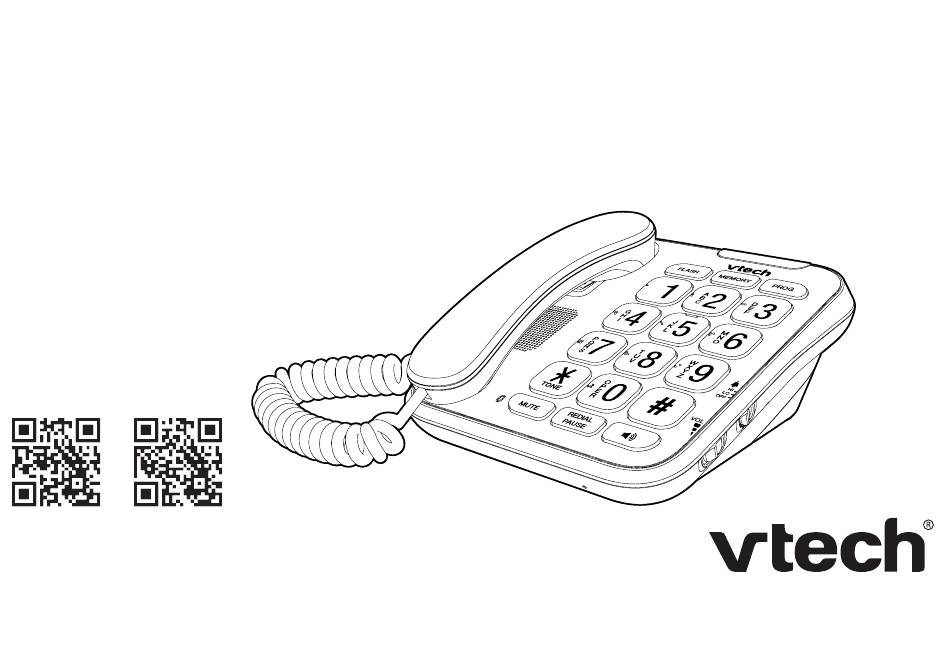

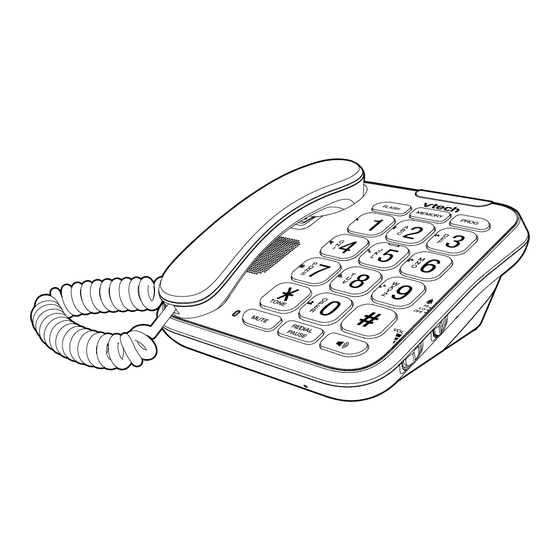

- Page 1 SN1107 Go to www.vtechphones.com (US) to register your product for enhanced warranty Amplified Corded with support and latest VTech product news. Go to phones.vtechcanada.com (Canada) for Big Buttons latest VTech product news. Scan the QR code for support information User’s manual...
- Page 2 Congratulations on purchasing your new VTech product. Before using this telephone, please read Important safety instructions. This quick start guide provides you with basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online user’s manual for a full set of installation and operation instructions at www.vtechphones.com or...
- Page 3 Important safety or shower. proper ventilation is not 6. Do not place this product on provided. instructions an unstable table, shelf, stand 9. This product should be or other unstable surfaces. operated only from the type When using your telephone Avoid placing the telephone of power source indicated equipment, basic safety precautions...
- Page 4 handset other than specified result in damage and mode. access doors may expose often requires extensive 16. The applied nameplate is you to dangerous voltages work by an authorized located at the bottom or near or other risks. Incorrect technician to restore of the product.
- Page 5 le socle téléphonique à les sources d’humidité, la Si vous ne connaissez pas une hauteur supérieure à 2 poussière, les vapeurs et les le voltage de votre maison, mètres. liquides corrosifs. consultez votre marchand ou 5. N’utilisez pas ce produit 8.
- Page 6 FCC Part 15 département de service à la que le socle et/ou le combiné NOTE: This equipment has been clientèle de VTech dans les a été endommagé. tested and found to comply with cas suivants : • Si le produit affiche une the requirements for a Class B •...
- Page 7 the instructions, may cause technician for help. FCC Part 68 and ACTA harmful interference to radio WARNING: Changes or This equipment complies with communications. However, there modifications to this equipment Part 68 of the FCC rules and with is no guarantee that interference not expressly approved by the technical requirements adopted will not occur in a particular...
- Page 8 An RJ11 jack should normally be questions about what will disable the problem and the telephone used for connecting to a single alarm equipment, consult your service provider is required to line. See the installation instructions telephone service provider or a inform you of your right to file in the user’s manual.
- Page 9 Perform such activities in off-peak Canada technical specifications use of this user’s manual. hours, such as early morning or were met. VTech Communications, Inc. late evening. and its suppliers assume no The Ringer Equivalence Number responsibility for any loss or...
-
Page 10: Table Of Contents
What’s in the box Operate Make a call Connect and install Answer a call / End a call Speakerphone Connect the telephone base Volume - Speaker / Ringer Mount the telephone base (optional) Call waiting Overview Redial Product care | Need Setup help? Speed dial... -
Page 11: What's In The Box
What’s in the box User’s manual... -
Page 12: Connect And Install
Connect and install Connect the telephone base If you subscribe to digital subscriber line (DSL) high- speed Internet service through your telephone line, make sure you connect a DSL filter (not included) to the telephone wall jack. The base is line- powered. -
Page 13: Mount The Telephone Base (Optional)
Connect and install Mount the telephone base (optional) On the rear side of the telephone base, press the tabs of the wall-mount bracket to release it from the tabletop orientation. - Page 14 Connect and install Flip the wall-mount bracket down and push it into the telephone base until it clicks into place.
- Page 15 Connect and install Slide the handset Rotate it upside Slide the handset tab back into the tab upward. down. slot. The protruding edge of the handset tab holds the corded handset in place when the telephone is mounted on the wall.
- Page 16 Connect and install Align and mount the bracket to the telephone wall mount plate.
-
Page 17: Overview
Overview 1 Handset earpiece Slot for handset tab • For optional wall mounting. 3 Handset microphone 4 Coiled handset cord... - Page 18 Overview Visual ringer • Flashes to indicate an incoming call. indicator / Line in use • On when the telephone is in use.
- Page 19 Overview • Store the number to the selected memory key location . • Press to dial the numbers. 7 Dial keys (0-9) • Press to dial the preset numbers. • Adjust the base ringer volume while in idle. • Adjust the listening volume during a call. •...
- Page 20 Overview • Mute the microphone during a call MUTE LED • The light flashes when MUTE is on. • Switch to tone dialing temporarily during a call. 16 Speaker 17 Handset tab • For optional wall mounting. • During a call, press to answer an incoming call when you receive a call waiting alert.
-
Page 21: Setup
Setup Speed dial You can store the telephone numbers you wish in desired memory locations (0-9) and to make speed dial calls. The phone can store up to 10 contacts. We recommend to store contacts that you may need to call them more often. Add/ Store/ Change/ Remove a speed dial number 1. -
Page 22: Talking Digits
Setup Dial a speed dial number while offhook Press and desired memory location number (0-9). • The stored number will dial out automatically. • If there is no number stored in that memory location, an error tone will be emitted. Talking digits At the base bottom, you can turn on or off the Talking digits feature. -
Page 23: Dial Mode
Setup Dial mode At the base bottom, you can select the dial mode by sliding the switch - Pulse dialing [PULSE] or Touch tone [TONE]. • If you need to temporarily switch to Touch tone mode, you can press in offhook mode. -
Page 24: Operate
Operate Make a call Answer a call / End a call -OR- -OR- To answer a call, press or lift the corded Press or lift the handset. corded handset. To end a call, press again or hang up the corded handset. Speakerphone While using the corded Dial the telephone... -
Page 25: Volume - Speaker / Ringer
Operate Volume - Speaker / Ringer Slide the Ringer control to Slide the VOL control adjust the ringer volume to adjust the corded level. handset or the speaker volume level when in idle • You cannot change the and on a call. ringer tone. -
Page 26: Call Waiting
Operate Call waiting Redial The last dialed telephone number is When you subscribe to call waiting stored in the telephone base. service from your telephone service provider, you hear an alert tone if there is an incoming call while you are already on -OR- a call. -
Page 27: Product Care | Need Help
Product care | Need help? Taking care of your telephone Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. - Page 28 FAQs. Use your smartphone or mobile device to access our online help. • Go to https://help.vtechphones.com/sn1107 (US); OR https://phones.vtechcanada.com/en/ support/general/manuals?model=sn1107 (Canada) •...
-
Page 29: Limited Warranty
America and Canada. water or other liquid intrusion; What will VTech do if the Product is not free from defects in Product that has been damaged due to repair, alteration or materials and workmanship during the limited warranty period modification by anyone other than an authorized service (“Materially Defective Product”)? - Page 30 Transportation, delivery or handling charges are prepaid. There are no other express warranties. No one is authorized VTech assumes no risk for damage or loss of the Product in to make modifications to this limited warranty and you should transit. If the Product failure is not covered by this limited not rely on any such modification.
- Page 31 Limited warranty above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this Product.
