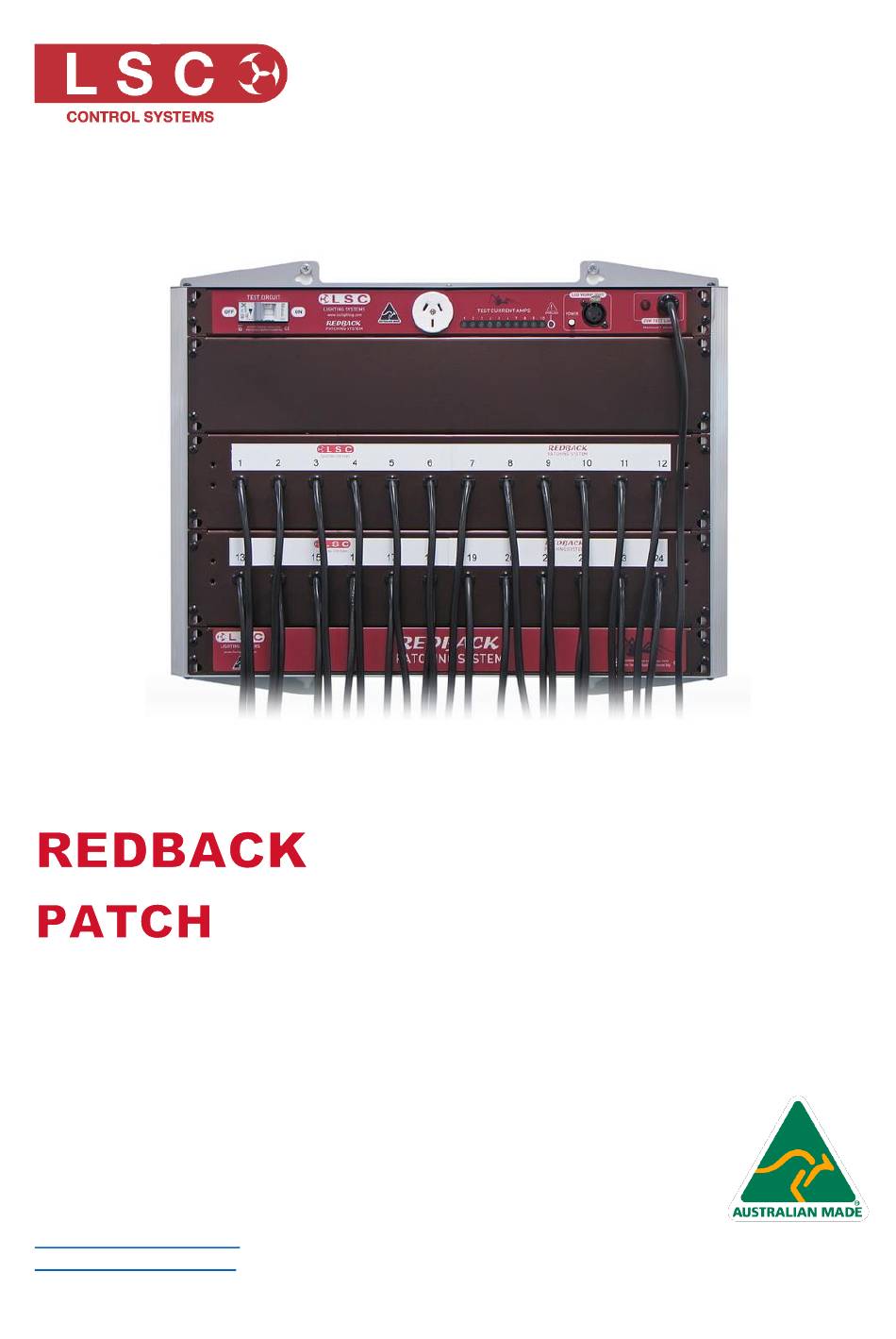

- Page 1 User Manual LSC Control Systems © +61 3 9702 8000 info@lsccontrol.com.au Version 1.0 www.lsccontrol.com.au July 2024...
- Page 2 Information contained in this manual is subject to change without notice. In any event, LSC Control Systems Pty Ltd cannot be held liable for any direct, indirect, special, incidental, or consequential damages or loss whatsoever (including, without limitation, damages...
-
Page 3: Table Of Contents
Redback Patch Bay User Manual Contents Redback Patch System ................4 About this Manual ....................... 4 Redback Patch Bay Overview ..................4 Patching ........................4 Frame and Module Sizes .................... 5 Cable Management ....................5 Test Module ....................6 Self Test ........................6 Installation ....................7... -
Page 4: Redback Patch System
Instead, each outlet is wired back to a Redback Patch Bay located next to the dimmer/switches. Therefore, depending on the show, the lights required can be chosen from the patch bay and plugged into the dimmers/switches offering a degree of flexibility that could not be achieved easily in any other way. -
Page 5: Frame And Module Sizes
Redback Patch Bay User Manual 1.4 Frame and Module Sizes Four frame sizes of Redback Patch Bay are available. Frames are fitted with 12 circuit patch modules allowing for systems up to 36, 72, 144 or 240 circuits. Frame Size... -
Page 6: Test Module
Pin 2 - 0v Pin 3 - +12v DC This wiring is the same for all LSC products and many brands of LED work lights however some brands use a different wiring configuration and might need to be modified. 2.1 Self Test To test both the “Test Circuit”... -
Page 7: Installation
Redback Patch Bay User Manual Installation Note: All electrical work must be carried out by suitably qualified persons. 12 Dim/Switch Channels Patch Points 72 Patch 72 Patch Points Points 12 Dim/Switch Channels Patch Points Typical Installation. 144 Patch Points and 24 Dim/Switch channels 3.1 Step 1... -
Page 8: Step 3
Redback patch chassis. 3.5 Step 5 An optional test circuit panel can be installed at the top of the Redback patch chassis. This panel requires a 240VAC/10 Amp mains source which provides power to connected test loads. A three terminal screw header allows for Active (A), Neutral (N) and Earth (E) screw termination. -
Page 9: Specifications
User Manual Specifications 4.1 Mounting Frame Side aluminium extrusions and powder-coated metal end plates similar in construction to LSC's REDBACK wallmount dimmers. Cable access via open rear entry or knock-out panels in top and bottom end plates. Easy-access mounting holes for quick installation. -
Page 10: Compliance Statements
Redback Patch Bay User Manual Compliance Statements The Redback Patch Bay range from LSC Control Systems Pty Ltd meets all required CE (European), RCM (Australian) and UKCA (United Kingdom) standards. CENELEC (European Committee for Electrotechnical Standardization). Australian RCM (Regulatory Compliance Mark).
