- Page 1 Expansion Wing for the MantraLite User Manual LSC Control Systems © +61 3 9702 8000 info@lsccontrol.com.au Version 3.0 www.lsccontrol.com.au August 2021...
- Page 2 Information contained in this manual is subject to change without notice. In any event, LSC Control Systems Pty Ltd cannot be held liable for any direct, indirect, special, incidental, or consequential damages or loss whatsoever (including, without limitation, damages...

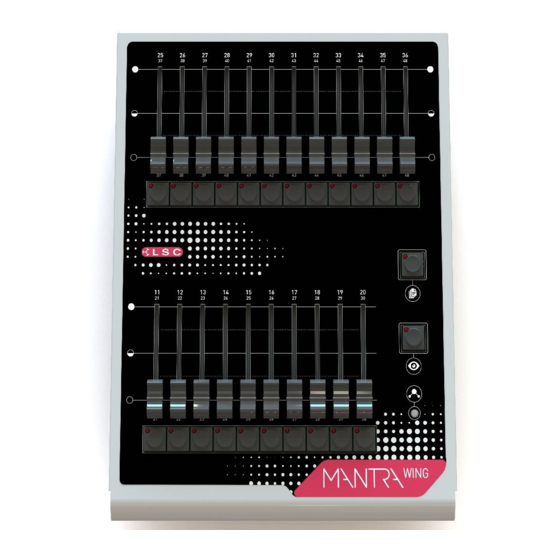

- Page 3 Page Button ......................5 DMX Universes......................5 1.1 Overview The Mantra Wing is an accessory for the Mantra Lite lighting console. It can only be operated when it is connected to a Mantra Lite console. • A Mantra Lite console can control up to 24 lighting fixtures with 10 playbacks (with 10 pages of memory) and has a single DMX512 universe output •...
- Page 4 USB-B Kensington Output socket lock point Mantra Wing Rear Panel Fixtures can be patched to the DMX512-A output in the Mantra Lites patch screen. 1.5 Front Panel 1.5.1 Status LED When a single wing is connected the Mantra Lite console the wings “Status” LED turns Green.
- Page 5 Mantra Lite WING User Manual If the console has had two wings connected it remembers the wing assignments (Green or Blue) when the console is switched off. If the console is switched on with the two wings already connected it will keep the original assignments. If the console is switched on without any wings connected it will assign Green status to the first...
