SECTION 578-200-100

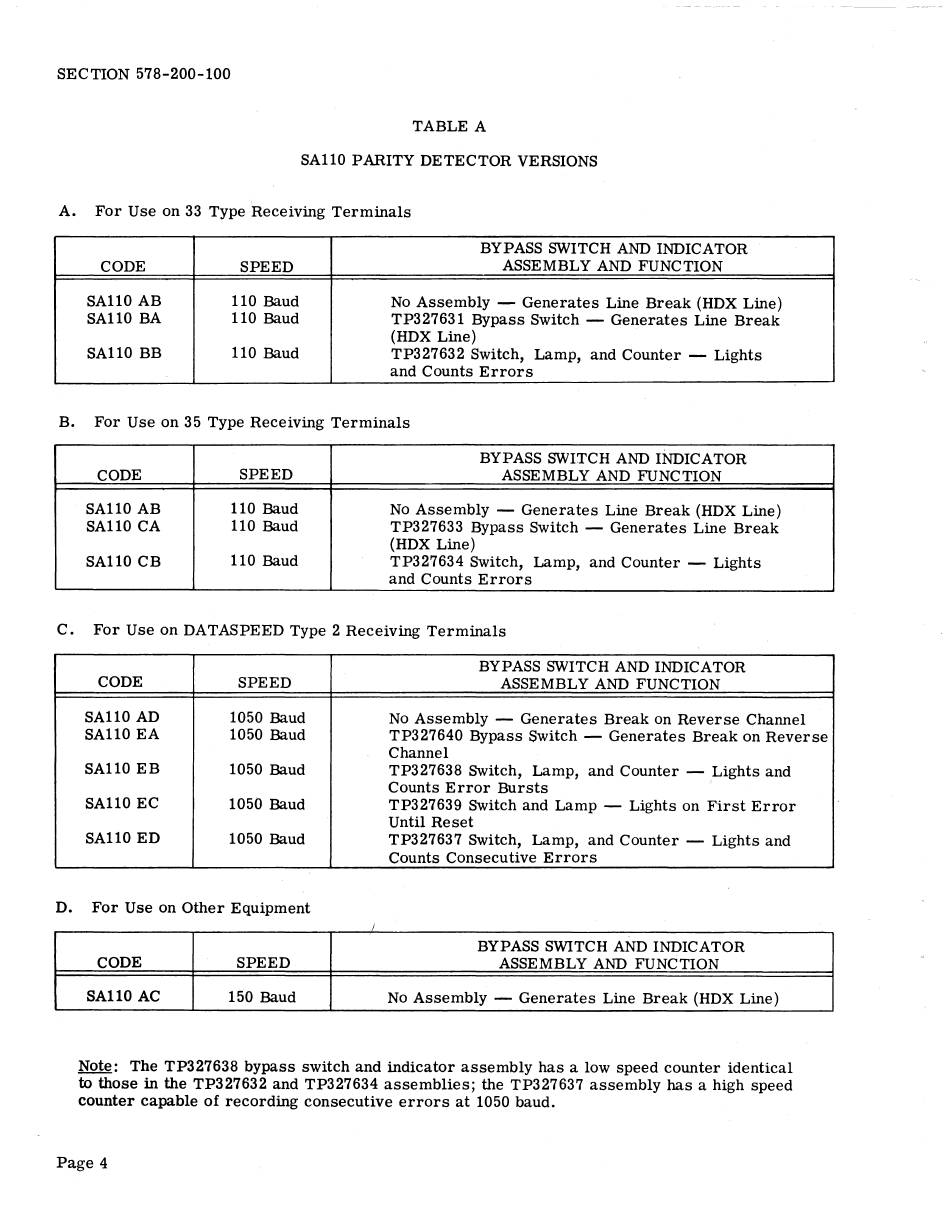

TABLE A
SAll0 PARITY DETECTOR VERSIONS
A. For Use on 33 Type Receiving Terminals
BYPASS SWITCH AND INDICATOR
CODE SPEED ASSEMBLY AND FUNCTION
SAllO AB 110 Baud
No Assembly - Generates Line Break (HDX Line)
SAllO BA 110 Baud
TP327631 Bypass Switch - Generates Line Break
(HDX Line)
SAllO BB 110 Baud TP327632 Switch, Lamp, and Counter -
Lights
and Counts Errors
B. For Use on 35 Type Receiving Terminals
BYPASS SWITCH AND INDICATOR
CODE
SPEED
ASSEMBLY AND FUNCTION
SAllO AB 110 Baud
No Assembly - Generates Line Break (flDX Line)
SAll0 CA 110 Baud
TP327633 Bypass Switch - Generates Line Break
(HDX Line)
SAll0 CB
110 Baud
TP327634 Switch, Lamp, and Counter -
Lights
and Counts Errors
C. For Use on DATASPEED Type 2 Receiving Terminals
BYPASS SWITCH AND INDICATOR
CODE
SPEED
ASSEMBLY AND FUNCTION
SAll0 AD
1050 Baud
No Assembly - Generates Break on Reverse Channel
SAll0 EA 1050 Baud
TP327640 Bypass Switch - Generates Break on Reverse
Channel
SAll0 EB
1050 Baud
TP327638 Switch, Lamp, and Counter - Lights and
Counts Error Bursts
SAll0 EC 1050 Baud
TP327639 Switch and Lamp - Lights on First Error
Until Reset
SAll0 ED 1050 Baud
TP327637 Switch, Lamp, and Counter - Lights and
Counts Consecutive Errors
D. For Use on Other Equipment
i
BYPASS SWITCH AND INDICATOR
CODE
SPEED
ASSEMBLY AND FUNCTION
SAll0 AC 150 Baud
No Assembly - Generates Line Break (HDX Line)
Note: The TP327638 bypass switch and indicator assembly has a low speed counter identical
to those in the TP327632 and TP327634 assemblies; the TP327637 assembly has a high speed
counter capable of recording consecutive errors at 1050 baud.
Page 4
