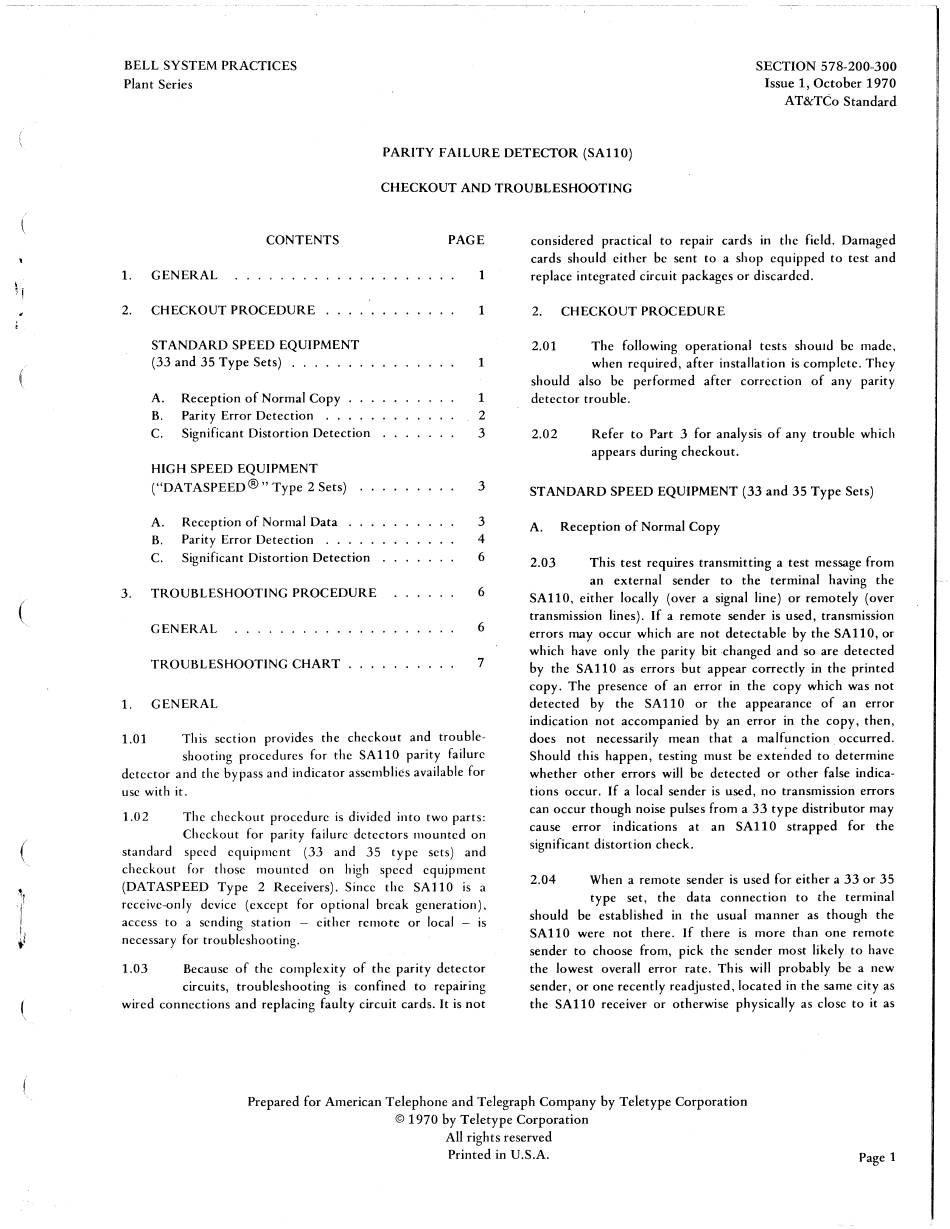

BELL SYSTEM PRACTICES
Plant Series
SECTION 578-200-300
Issue 1, October 1970
AT&TCo Standard
PARITY FAILURE DETECTOR (SA110)
CHECKOUT AND TROUBLESHOOTING
CONTENTS
1.
GENERAL
2.
CHECKOUT PROCEDURE
3.
STANDARD SPEED EQUIPMENT
(33 and 35 Type Sets) .....
A.
Reception of Normal Copy
B.
Parity Error Detection
. .
C.
Significant Distortion Detection
HIGH SPEED EQUIPMENT
("DATASPEED®"
Type 2 Sets)
A.
Reception of Normal Data
.
8.
Parity Error Detection
. . .
C.
Significant Distortion Detection
TROUBLESHOOTING
PROCEDURE
GENERAL
TROUBLESHOOTING
CHART
1.
GENERAL
PAGE
1
1
1
1
2
3
3
3
4
6
6
6
7
1.01
This section provides the checkout
and trouble-
shooting procedures for the SA110 parity failure
detector and the bypass and indicator assemblies available for
use with it.
1.02
The checkout procedure is divided into two parts:
Checkout
for parity failure detectors mounted on
standard
speed
equipment
(33 and 35 type
sets) and
checkout
for those
mounted
on high speed equipment
(DATASPEED
Type 2 Receivers). Since the SAllO
is a
receive-only device (except for optional break generation),
access to a sending station - either remote or local - is
necessary for troubleshooting.
1.03
Because of the complexity
of the parity detector
circuits, troubleshooting
is confined
to repairing
wired connections and replacing faulty circuit cards. It is not
considered
practical to repair cards in the field. Damaged
cards should either be sent to a shop equipped to test and
replace integrated circuit packages or discarded.
2.
CHECKOUTPROCEDURE
2.01
The following operational
tests shou1J be made,
when required, after installation is complete. They
should also be performed
after correction
of any parity
detector trouble.
2.02
Refer to Part 3 for analysis of any trouble which
appears during checkout.
STANDARD SPEED EQUIPMENT (33 and 35 Type Sets)
A.
Reception of Normal Copy
2.03
This test requires transmitting
a test message from
an external
sender
to the terminal
having the
SA110, either locally (over a signal line) or remotely (over
transmission lines). If a remote sender is used, transmission
errors may occur which are not detectable by the SAll0,
or
which have only the parity bit -changed and so are detected
by the SAll0
as errors but appear correctly in the printed
copy. The presence of an error in the copy which was not
detected
by the SAll0
or the appearance
of an error
indication not accompanied
by an error in the copy, then,
does not necessarily
mean that a malfunction . occurred.
Should this happen, testing must be extended to determine
whether other errors will be detected or other false indica-
tions occur. If a local sender is used, no transmission errors
can occur though noise pulses from a 33 type distributor may
cause error
indications
at an SAll0
strapped
for the
significant distortion check.
2.04
When a remote sender is used for either a 33 or 35
type
set, the data connection
to the terminal
should be established
in. the usual manner as though the
SAll0
were not there. If there is more than one remote
sender to choose from, pick the sender most likely to have
the lowest overall error rate. This will probably be a new
sender, or one recently readjusted, located in the same city as
the SAl 10 receiver or otherwise physically as close to it as
Prepared for American Telephone and Telegraph Company by Teletype Corporation
©
1970 by Teletype Corporation
All rights reserved
Printed in U.S.A.
Page 1
