Printed Matter No. 9836 8198 01
Valid from Serial No. A0812
2017-05-02
EBL25 (1.0-2.5 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8431017023
WARNING

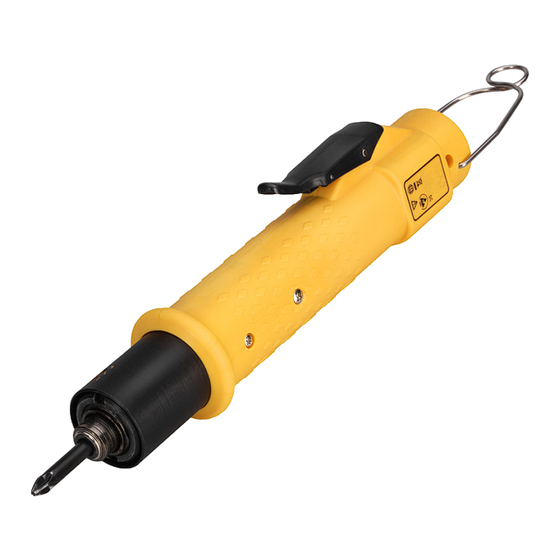

EBL25
Electric screwdriver
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco EBL25
Summary of Contents for Atlas Copco EBL25
- Page 1 Printed Matter No. 9836 8198 01 Electric screwdriver Valid from Serial No. A0812 Product Instructions 2017-05-02 EBL25 (1.0-2.5 Nm) 8431017023 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Operating instructions ............ 8 Service .................. 10 Preventing ESD problems ............. 10 Maintenance instructions............ 10 Service recommendations ........... 10 Service instructions............ 10 Lubrication................ 10 Recycling .................. 12 Recycling instruction ............. 12 © Atlas Copco Industrial Technique AB - 9836 8198 01... -
Page 3: Product Information
• To avoid damage or destruction of tool parts, service the tool according to the recommended maintenance schedules and follow the correct instruc- tions. • Warranty repairs are only performed in Atlas Copco workshops or by Certi- fied Service Partners. Atlas Copco offers extended warranty and state of the art preventive mainte- nance through its ToolCover contracts. -
Page 4: Servaid
ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Website Log in to Atlas Copco: www.atlascopco.com. -
Page 5: Overview
Torque range 8.8–22.1 in lb Motor voltage 20/ V d.c. Motor power 20 W Vibration standard ISO28927-2 Vibration uncertainty 1.0 m/s² Vibration value <2.5 m/s² Weight 0.8 kg Weight 1.8 lb © Atlas Copco Industrial Technique AB - 9836 8198 01... -
Page 6: Operation
Adapt the torque setting to the operator's strength and posture and use a torque arm or reaction bar if the torque is too high. • Use dust extraction system or mouth protection mask in dusty environments. © Atlas Copco Industrial Technique AB - 9836 8198 01... -
Page 7: Testing Of Tightening Torque
Each clutch spring gives a certain torque range. Do not adjust the torque over the maximum recommendation as that might result in improper func- tion and faster wear of the clutch. © Atlas Copco Industrial Technique AB - 9836 8198 01... -
Page 8: Operating Instructions
Start mode is easily reconfigured by changing the switch position under the lever of the tool. © Atlas Copco Industrial Technique AB - 9836 8198 01... - Page 9 EBL25 Operation Operating procedure © Atlas Copco Industrial Technique AB - 9836 8198 01...
-
Page 10: Service
Clean all parts and replace any defective or worn out parts during overhaul or maintenance. Lubrication Lubricate the planetary gears with grease of type Molykote Longterm 00. If needed, a complementary lubrication (see fig.) of grease could be made, max- imum 0.2 cm © Atlas Copco Industrial Technique AB - 9836 8198 01... - Page 11 EBL25 Service No further regular lubrication is required. © Atlas Copco Industrial Technique AB - 9836 8198 01...
-
Page 12: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 8198 01... - Page 16 Original instructions Atlas Copco Industrial © Copyright 2017, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
