Printed Matter No. 9836 7941 01
Publication Date 2024-08-20
Valid from Serial No. A0609
Valid to Serial No. A6569999
EBL03-RE (0.05-0.3 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8431017055
WARNING

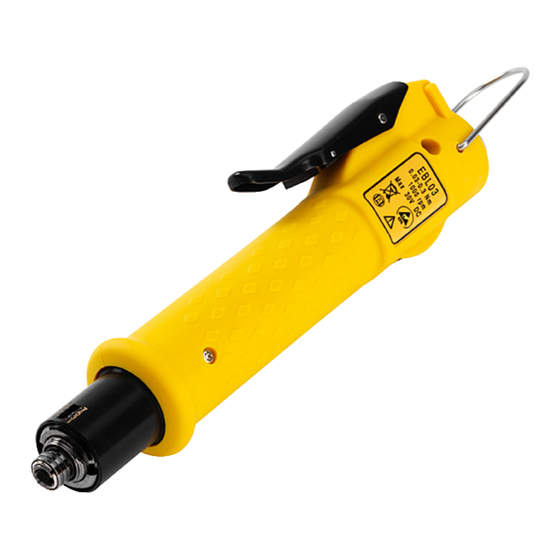

EBL03-RE
Electric screwdriver
Product Instructions
Advertisement
Related Manuals for Atlas Copco EBL03-RE
Summary of Contents for Atlas Copco EBL03-RE
- Page 1 Electric screwdriver Publication Date 2024-08-20 Valid from Serial No. A0609 Product Instructions Valid to Serial No. A6569999 EBL03-RE (0.05-0.3 Nm) 8431017055 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Verification of tightening torque ............. 7 Torque range of the clutch springs ............ 7 Service ........................ 8 Preventing ESD problems ................ 8 Maintenance instructions .................. 8 Service recommendations .............. 8 Service instructions ................ 8 Recycling ......................... 9 Recycling instruction.................. 9 © Atlas Copco Industrial Technique AB - 9836 7941 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Website Log in to Atlas Copco: www.atlascopco.com. - Page 5 EBL03-RE Product information Vibration standard ISO28927-2 Vibration uncertainty 1.0 m/s² Vibration value <2.5 m/s² Weight 0.3 kg Weight 0.7 lb © Atlas Copco Industrial Technique AB - 9836 7941 01...
-
Page 6: Operation
Adapt the torque setting to the operator's strength and posture and use a torque arm or reaction bar if the torque is too high. ■ Use dust extraction system or mouth protection mask in dusty environments. © Atlas Copco Industrial Technique AB - 9836 7941 01... -
Page 7: Testing Of Tightening Torque
After the adjustment, turn the protective ring back again. Verification of tightening torque Recommended equipment for verification if tightening torque are an Atlas Copco Torque Analyser plus an appropriately-sized transducer together with the available test joints. Torque range of the clutch springs Each clutch spring gives a certain torque range. -
Page 8: Service
Service instructions Clean all parts and replace any defective or worn out parts during overhaul or maintenance. © Atlas Copco Industrial Technique AB - 9836 7941 01... -
Page 9: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 7941 01... - Page 12 Original instructions © Copyright 2024, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
