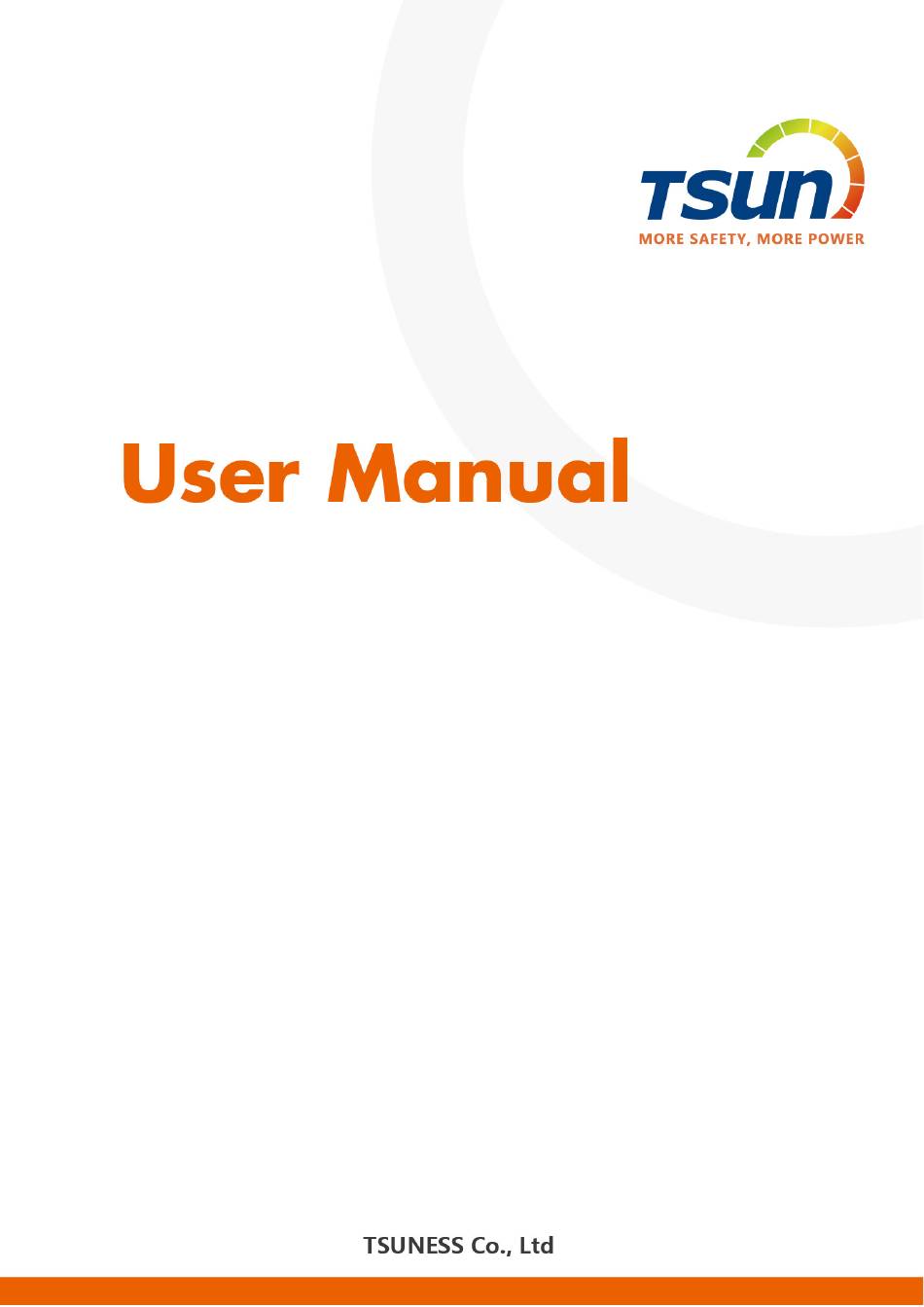

- Page 1 TSOL-MG3-MP TSOL-MG3-MP V1.0 - 1 -...
-
Page 2: Trademarks And Permissions
TSOL-MG3-MP Trademarks and Permissions TSUN and other TSUNESS trademarks are trademarks of TSUNESS Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. TSUNESS Co., Ltd makes no representations express or implied, concerning this... -
Page 3: Table Of Contents
TSOL-MG3-MP Content Trademarks and Permissions ............................- 1 - Audience ................................... - 2 - Content ....................................- 3 - Read This First .................................. - 4 - Important Safety Information ..................................- 4 - Product Label ........................................ - 4 - System Introduction ................................- 5 - Product Description ...................................... -
Page 4: Read This First
TSOL-MG3-MP Read This First Dear customer, thank you for choosing TSUN products. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. Data Transfer Unit (DTU) is a communication device for the TSUN RS485 microinverter system. -
Page 5: System Introduction
TSOL-MG3-MP System Introduction The TSOL-MG3-MP DTU is used in grid-tied applications which is comprised of three key elements: TSUN RS485 Microinverter. TSOL-MG3-MP DTU. Monitoring System: TSUN Portal Website and TSUN Smart APP . The microinverter converts the DC electricity generated by solar panels into AC electricity which is in accordance with the requirements of the public grid and sends the AC into the grid, reducing the load pressure of the grid. -
Page 6: Product Description
TSOL-MG3-MP Product Description Object Description Object Description Power LED Communication LED (Dispatch) Communication LED (Inverter) Communication LED (Router) Communication LED (Meter) SIM Card Slot (Reserve) Alarm LED * These ports are reserved. Pls contact TSUN for more details if you need. Object Description Object... -
Page 7: Datasheet
Dimension 200 * 100 * 29 mm Weight 232g Protection IP20 TSUNESS Co., Ltd declares that the radio equipment (DTU) is in complies with Directive 2014/53/EU. OPERATING FREQUENCY (the maximum transmitted power) 2412MHz—2472MHz(EIRP ＜20dBm) 2402MHz—2480MHz(EIRP ＜10dBm) V1.0 - 7 -... -
Page 8: Installation
TSOL-MG3-MP Installation Pre-installation Check Check the Package DTU * 1 Antenna * 1 Adaptor * 1 Bracket * 1 Expansion Screw * 4 User Manual * 1 Check the Installation Environment and Position When choosing the position of installation, comply with the following conditions: ... - Page 9 TSOL-MG3-MP Step 2. Install the bracket and fix the DTU Use at least two screw holes (one from each side) to fix the bracket (the M4 screws need to be prepared by installer). Match the bracket’s upper buckle with monitor device. Then match the bracket’s lower buckle by gently press the lower side of the monitor device until hear the “Click”.
- Page 10 TSOL-MG3-MP The definition of microinverter RS485 connector can be found in the Quick Installation Guide or User Manual of TSUN RS485 microinverter. Step 4. Connect the Ethernet port Connect the Ethernet Port to the WiFi router or network switch. Step 5. (Optional) Connect the Meter port Connect the RS485 Port (Meter) A3 and B3 to the power meter.
- Page 11 TSOL-MG3-MP Step 6. (Optional) Connect the Dispatch port Connect the RS485 Port (Dispatch) A2 and B2 to the power control device. More information can be found in Annex I SunSpec Modbus Profile V1.2. Step 7. Power on the DTU Power on the DTU. Step 8.
- Page 12 TSOL-MG3-MP Add the SN of DTU. Tips: The 10-digts SN can be found in the backside of DTU. V1.0 - 12 -...
- Page 13 TSOL-MG3-MP Step 11. Create an end-user account and authorize the solar plant. Create an end-user account and finish the details.Authorize the solar plant to this end-user account. Step 12. Config the DTU. button in “Device List” page to configure DTU. Click V1.0 - 13 -...
- Page 14 TSOL-MG3-MP Download template and fill in the SN and phase relationship in the template. V1.0 - 14 -...
- Page 15 TSOL-MG3-MP Upload the module version and complete the configuration. Step 13. Download the website. Download “TSUN Smart” APP in Google Play or Apple Store. End user can visit this solar plant by TSUN Smart. V1.0 - 15 -...
-
Page 16: Maintenance Guide
TSOL-MG3-MP Maintenance Guide Routine Maintenance Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies. Always use the personal protective equipment provided by the employer when carrying out maintenance. During normal operation, check that the environmental and logistic conditions are appropriate. Make sure that the conditions have not changed over time and that the equipment is not exposed to adverse weather conditions and has not been covered with foreign bodies. -
Page 17: Recycling And Disposal
Exclusions (a) TSUNESS makes no warranties, either expressed or implied, orally, or in writing, concerning any other warranty coverage except those expressly stated in this limited Factory Warranty. (b) The Factory Warranty does not cover damages that occur due to: ... -
Page 18: Distributor Responsibility
NOT covered by this Factory Warranty. (e) In no event will TSUNESS Co., Ltd be held responsible or liable for any personal injuries resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or consequential;... -
Page 19: Annex I: Sunspec Modbus Profile V1.2
TSOL-MG3-MP Annex I: SunSpec Modbus Profile V1.2 Modbus Register SunSpec-Name Description / Number code(s) Type Access Remark Number A well-known value 0x53756e53. Uniquely 40001 identifies this as a SunSpec Modbus Map: uint32 1400204883 A well-known value 1. Uniquely identifies this as a 40003 uint16 SunSpec Common Model... - Page 20 TSOL-MG3-MP V1.0 - 20 -...
