- Page 1 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 TSOL-MS800 TSOL-MS700 TSOL-MS600 TSOL-MS400 TSOL-MS350 TSOL-MS300 V1.0 - 1 -...
-
Page 2: Trademarks And Permissions
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Trademarks and Permissions TSUN and other TSUNESS trademarks are trademarks of TSUNESS Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. TSUNESS Co., Ltd makes no representations, express or implied, with respect to this... -
Page 3: Table Of Contents
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Content Trademarks and Permissions ............................- 1 - Audience ................................... - 2 - Content ....................................- 3 - Read This First .................................. - 4 - Important Safety Information .................................. - 4 - Product Label ......................................- 4 - System Introduction ................................- 6 - Product Description .................................... -
Page 4: Read This First
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Read This First Dear customer, thank you for choosing the TITAN series microinverter from TSUN. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. A solar microinverter, or simply microinverter, is a plug-and-play device used in photovoltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC). - Page 5 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 CAUTION · CAUTION indicates that the described operation must not be carried out. The reader should stop use and fully understand the operations explained before proceeding. The symbols on the microinverter are list below and illustrated in detail. Symbol Description This device is directly connected to public grid, thus all work to the inverter shall only be carried out by qualified personnel.
-
Page 6: System Introduction
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 System Introduction The TSOL- MS800/MS700/MS600/MS400/MS350/MS300 microinverter is used in grid-tied applications, comprised of two key elements: TSOL- MS800/MS700/MS600/MS400/MS350/MS300 Microinverter. Talent web-based monitoring and analysis system. The microinverter converts the DC electricity generated by solar panels into AC electricity which is in accordance with the requirements of public grid and send the AC into the grid, reduce the load pressure of the grid. -

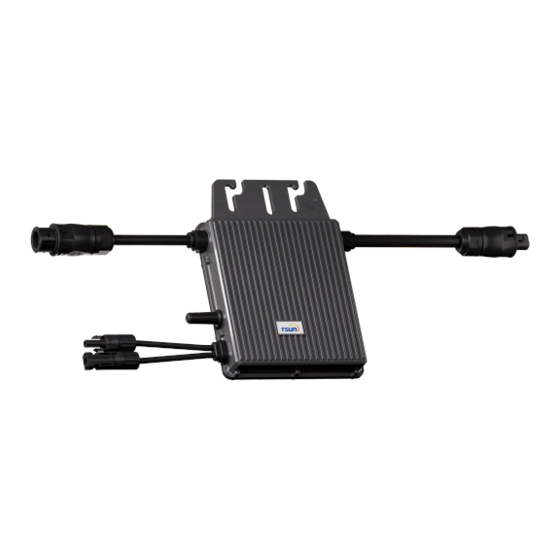

Page 7: Product Description
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Product Description TSOL- MS800/MS700/MS600 TSOL- MS400/MS350/MS300 DC Cables Status Light AC Cable (Female Connector) Mounting Hole AC Cable (Male Connector) Antenna V1.0 - 7 -... -
Page 8: Datasheet
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Datasheet Model TSOL-MS800 TSOL-MS700 TSOL-MS600 Input Data (DC) Recommended Module Power (W) 300 ~ 550 300 ~ 550 300 ~ 550 Start-up Voltage per Input (V) Rated Input Voltage (V) MPPT Voltage Range per Input (V) 16~60 Max. Input Voltage per Input (V) Max. - Page 9 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Communication built-in WiFi module; 4G module (Optional) Type of Isolation Galvanically Isolated HF Transformer Type of Enclosure IP67 Cooling Natural convection Operating Ambient Temperature -25 ~ +65 (derating of over 50°C Ambient Temperature) Range Relative Humidity 100% Max. Operating Altitude Without 2000 Derating [m] ※...
-
Page 10: Microinverter Installation
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 AC overcurrent protection Integrated AC short-circuit protection Integrated AC overvoltage protection Integrated Over-heat protection Integrated Mechanical Data Dimensions (W×H×D mm) 178 * 153 * 28 Weight [kg] 1.98 General Data Display LED indicators; TSUN APP+WEB Communication built-in WiFi module; 4G module (Optional) Type of Isolation Galvanically Isolated HF Transformer Type of Enclosure... -
Page 11: Installation Steps
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Use a mobile phone to check the Wi-Fi signal strength at the installation position. If the Wi-Fi signal is bad, try to install the microinverter at another position or move the Wi-Fi router. Installation Steps DANGER ·Only qualified personnel should install, troubleshoot, or replace TITAN micro inverters or the cable and accessories. - Page 12 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 TSOL- MS800/MS700/MS600 Step 2. Fix the microinverter. DANGER ·Do not install the equipment in adverse environment conditions such as flammable, explosive, corrosive, extreme high or low temperature, and humid. WARNING ·Choose installation location carefully and adhere to specified cooling requirements. Micro-inverter should be installed in a suitable position with good ventilation and no directly sunshine.
- Page 13 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Step 2. Connect the AC cable of two microinverters WARNING ·According to the max current of the AC cables, there is a max installation quantity for the micro-inverter in each cable section. Model Quantities for each cable section TSOL-MS800 TSOL-MS700 TSOL-MS600 TSOL-MS400...
- Page 14 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Use Nylon cable ties to fix the AC cables onto the frame. Use a Connector Protective Cap to make sure the unused AC connector to be closed. Step 3. Connect the AC end cable of each cable section DANGER ·Do not install the AC junction box without first removing AC power from the system.
- Page 15 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Get the AC cable through the shell of AC connecter and connect the cable to the right port. The definition of the port is shown below: Live (Brown/Red) Neutral (Blue/Black) Ground (Yellow-Green) If the microinverter is connected to 120/240V split-phase power grid, connect two live lines to port L and port N.
- Page 16 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 If the microinverter is connected to 127/220 V three-phase power grid, connect one live line to port L and connect another live line to port N. Reassemble the AC connector as shown below. Plug the AC connector into the microinverter and connect the AC cable to the AC distribution box. V1.0 - 16 -...
- Page 17 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Step 4. Connect the DC cable DANGER ·When the photovoltaic array is exposed to light, it supplies a DC voltage to the inverter. WARNING ·Ensure that all DC cables are correctly wired and that none of the wires are pinched or damaged.
- Page 18 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Step 5. Start the System DANGER ·Only qualified personnel should connect this system to the utility grid. CAUTION ·Do not connect micro-inverters to the grid or energize the AC circuit(s) until you have completed all the installation procedures and have received prior approval from the electrical utility company.
-
Page 19: Talent Monitoring Configuration
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Talent Monitoring Configuration TITAN microinverter has integrated monitoring module inside. The microinverter will directly connect the router (Wi-Fi Version). Users can use the Talent APP or enter the Talent website to monitor the microinverter. Visit www.tsun-ess.com to find the Talent monitoring platform and download the Talent APP. Got an Account Distributor Account Distributors must contact the superior distributor or TSUN to get a distributor account. - Page 20 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Distributors can create a sub organization account for internal department or external organization (sub distributor or installer). Visit Organization → “…” → Add the Sub Organization. The default password is “123456”. Installer Account Installers must contact the distributor to get an account. The default password is “123456”. Each organization has an Organization Code.
-
Page 21: Create A Solar Plant
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Create a Solar Plant Use the end user account to login the Talent App. Enter the “Plants” page. Find the “…” in the up-right corner and click “Create Plant”. Finish the information of the solar plant. V1.0 - 21 -... -
Page 22: Add A Microinverter
The “Organization Code” should be provided by installer. This code will has a huge influence on the after-sales service. The “Organization Code” of TSUNESS is “365A7F” The solar plant can only be deleted on the website platform. -
Page 23: Wi-Fi Configuration
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Find the “…” in the up-right corner and click “Unbind”. Wi-Fi Configuration Connect the home Wi-Fi first. Enter the “Me” page. Click “Config Network”. Scan or enter the monitoring SN. Choose the WIFI and enter the password. Click “Start Config”. V1.0 - 23 -... -
Page 24: Remote Active Power Control
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 The networking operation will be done automatically. Remote Active Power Control In some countries, it might be required that the generating plants should be equipped with a logic interface (input port) to cease the output of active power or limit active power to a regulated level. This logic input can be the RS485 port, Ethernet port, and so on. -
Page 25: Fault Code And Troubleshooting
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Fault Code and Troubleshooting Code Fault Information Troubleshooting Check the voltage of PV module and make sure that the PV1VoltOver_Fault voltage is below the maximum DC input voltage of the microinverter. If this fault appears continuously, please contact the TSUN PV2VoltOver_Fault service. -
Page 26: Routine Maintenance
TSOL-MS800/MS700/MS600/MS400/MS350/MS300 Maintenance Guide Routine Maintenance Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies. Always use the personal protective equipment provided by the employer when carrying out maintenance. During normal operation, check that the environmental and logistic conditions are appropriate. Make sure that the conditions have not changed over time and that the equipment is not exposed to adverse weather conditions and has not been covered with foreign bodies. -
Page 27: Recycling And Disposal
Exclusions (a) TSUNESS makes no warranties, either expressed or implied, orally, or in writing, with respect to any other warranty coverage except those expressly stated in this limited Factory Warranty. (b) The Factory Warranty does not cover damages that occur due to: ... -
Page 28: Distributor Responsibility
NOT covered by this Factory Warranty. (e) In no event will TSUNESS Co., Ltd be held responsible or liable for any personal injuries resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or consequential;... - Page 29 TSOL-MS800/MS700/MS600/MS400/MS350/MS300 V1.0 - 29 -...
