Summary of Contents for TSUNESS TSUN TSOL-MP3000

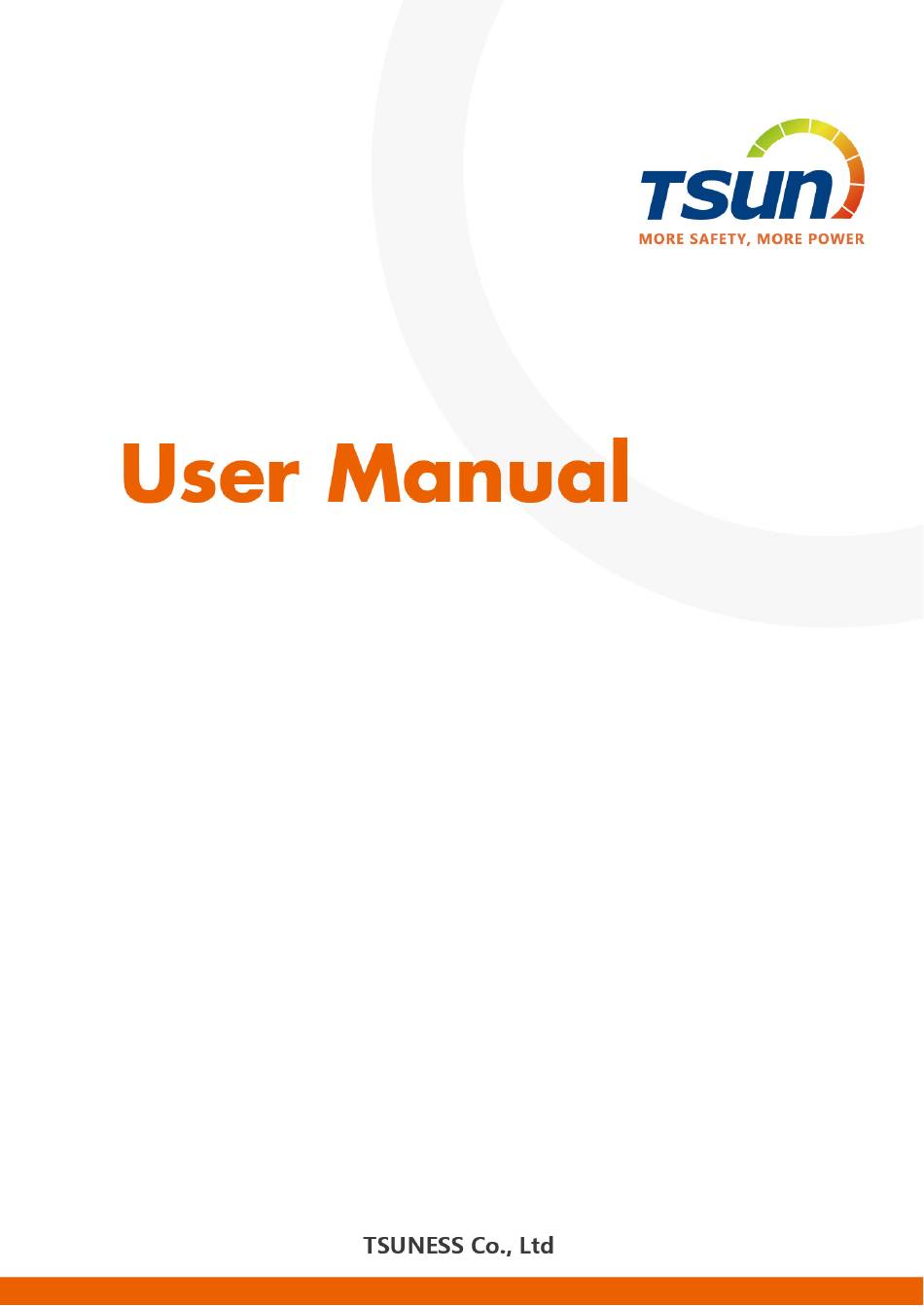

- Page 1 TSOL-MP3000/MP2250/MS3000 TSOL-MP3000 TSOL-MP2250 TSOL-MS3000 V1.4 - 1 -...
-
Page 2: Trademarks And Permissions
TSOL-MP3000/MP2250/MS3000 Trademarks and Permissions TSUN and other TSUNESS trademarks are trademarks of TSUNESS Co., Ltd All other trademarks and trade names mentioned in this document are the property of their respective holders. TSUNESS Co., Ltd makes no representations, express or implied, with respect to this... -
Page 3: Table Of Contents
TSOL-MP3000/MP2250/MS3000 Content Trademarks and Permissions ............................- 1 - Audience ................................... - 2 - Content ....................................- 3 - Read This First .................................. - 4 - Important Safety Information .................................. - 4 - Product Label ......................................- 4 - System Introduction ................................- 6 - Product Description .................................... -
Page 4: Read This First
TSOL-MP3000/MP2250/MS3000 Read This First Dear customer, thank you for choosing the TITAN series microinverter from TSUN. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. A solar microinverter, or simply microinverter, is a plug-and-play device used in photovoltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC). - Page 5 TSOL-MP3000/MP2250/MS3000 CAUTION · CAUTION indicates that the described operation must not be carried out. The reader should stop use and fully understand the operations explained before proceeding. The symbols on the microinverter are list below and illustrated in detail. Symbol Description This device is directly connected to public grid, thus all work to the inverter shall only be carried out by qualified personnel.
-
Page 6: System Introduction
TSOL-MP3000/MP2250/MS3000 System Introduction The TSOL-MP3000/MP2250/MS3000 microinverter is used in grid-tied applications, comprised of two key elements: TSOL-MP3000/MP2250/MS3000 Microinverter. Talent web-based monitoring and analysis system. The microinverter converts the DC electricity generated by solar panels into AC electricity which is in accordance with the requirements of public grid and send the AC into the grid, reduce the load pressure of the grid. -
Page 7: Datasheet
TSOL-MP3000/MP2250/MS3000 Datasheet Model MP2250 MP3000 MS3000 Input Data (DC) 4 Connectors 6 Connectors 4 Connectors Quantity of Input 4 Panels 5 - 6 Panels 7 - 8 Panels Recommended Module Power (W) 480 ~ 700+ 480 ~ 700+ 440 ~ 600+ Start-up Voltage per Input (V) Rated Input Voltage (V) MPPT Voltage Range per Input (V) -
Page 8: Microinverter Installation
TSOL-MP3000/MP2250/MS3000 Over-heat protection Integrated Mechanical Data Dimensions (W×H×D mm) 354 * 294 * 60 Weight [kg] General Data Display LED indicators; TSUN APP+WEB Communication built-in WiFi module; 4G module (Optional) Type of Isolation Transformerless Type of Enclosure IP67 Cooling Natural convection Operating Ambient Temperature -25 ~ +65 (derating of over 50°C Ambient Temperature) Range... -
Page 9: Installation Steps
TSOL-MP3000/MP2250/MS3000 Check the Installation Environment and Position When choosing the position of installation, comply with the following conditions: To avoid unwanted power derating due to an increase in the internal temperature of the inverter, do not expose it to direct sunlight. ... - Page 10 TSOL-MP3000/MP2250/MS3000 Microinverter can also be installed on the wall. Using the bracket (optional) and fix it on the wall. Then using two pairs of screws and nuts to fix the microinverter on the bracket. Make sure that the label of microinverter should be outside. Step 2.
- Page 11 TSOL-MP3000/MP2250/MS3000 ·Use AWG 12 (4 mm²) cable for AC end cable. CAUTION ·The installation technician is responsible for selecting a kind of AC cable and connecting the micro-inverter system into the home distribution network correctly. Take out the AC connector from the package. Get the AC cable through the shell of AC connecter and connect the cable to the right port.
- Page 12 TSOL-MP3000/MP2250/MS3000 port L and connect the neutral line to port N, as the connection of single-phase power grid. If the microinverter is connected to 127/220 V three-phase power grid, connect one live line to port L and connect another live line to port N. Reassemble the AC connector as shown below.
- Page 13 TSOL-MP3000/MP2250/MS3000 Plug the AC connector into the microinverter and connect the AC cable to the AC distribution box. Step 3. Connect the DC cable DANGER ·When the photovoltaic array is exposed to light, it supplies a DC voltage to the inverter. WARNING ·Ensure that all DC cables are correctly wired and that none of the wires are pinched or damaged.
- Page 14 TSOL-MP3000/MP2250/MS3000 Step 4. Make an installation map CAUTION ·If there are more than one installation site, please make the installation map separately and give a clear description about the installation site. ·The row of the table corresponds the shorter side of PV module and the column of the table corresponds the longer side of PV module.
- Page 15 TSOL-MP3000/MP2250/MS3000 Step 5. Start the System DANGER ·Only qualified personnel should connect this system to the utility grid. CAUTION ·Do not connect micro-inverters to the grid or energize the AC circuit(s) until you have completed all the installation procedures and have received prior approval from the electrical utility company.
-
Page 16: Talent Monitoring Configuration
TSOL-MP3000/MP2250/MS3000 Talent Monitoring Configuration TITAN microinverter has integrated monitoring module inside. The microinverter will directly connect the router (Wi-Fi Version) or the mobile network (4G Version). Users can use the Talent APP or enter the Talent website to monitor the microinverter. Visit www.tsun-ess.com to find the Talent monitoring platform and download the Talent APP. - Page 17 TSOL-MP3000/MP2250/MS3000 Distributors can create a sub organization account for internal department or external organization (sub distributor or installer). Visit Organization → “…” → Add the sub Organization. The default password is “123456”. Installer Account Installers can contact the distributor to get an account. The default password is “123456”. Each organization has an Organization Code.
-
Page 18: Create A Solar Plant
TSOL-MP3000/MP2250/MS3000 Create a Solar Plant Use the end user account to login the Talent App. Enter the “Plants” page. Find the “…” in the up-right corner and click “Create Plant”. Finish the information of the solar plant. V1.4 - 18 -... -
Page 19: Add A Microinverter
TSOL-MP3000/MP2250/MS3000 Pay attention that: The “Business Type” should be “PVS”. The “Organization Code” should be provided by installer. This code will has a huge influence on the after-sales service. The solar plant can only be deleted on the website platform. Add a Microinverter Enter the “Overview”... -
Page 20: Wi-Fi Configuration
TSOL-MP3000/MP2250/MS3000 Find the “…” in the up-right corner and click “Unbind”. Wi-Fi Configuration Connect the home Wi-Fi first. Enter the “Me” page. Click “Config Network”. Scan or enter the monitoring SN. Choose the WIFI and enter the password. Click “Start Config”. V1.4 - 20 -... - Page 21 TSOL-MP3000/MP2250/MS3000 The networking operation will be done automatically. V1.4 - 21 -...
-
Page 22: Fault Code And Troubleshooting
TSOL-MP3000/MP2250/MS3000 Fault Code and Troubleshooting Code Fault Information Troubleshooting Check the PV module’s insulation to ground and make sure that the insulation resistance to ground is greater than 200K Ω. IsoFault Make sure the grounding connection of the inverter is reliable. -
Page 23: Maintenance Guide
TSOL-MP3000/MP2250/MS3000 This is an internal fault. Disconnect the AC power to restart the microinverter. 24-29 Fault24 - 29 If this fault appears continuously, please contact the TSUN service. This is an internal fault. 30-61 Fault30 - 61 If this fault appears continuously, please contact the TSUN service. -
Page 24: Recycling And Disposal
Exclusions (a) TSUNESS makes no warranties, either expressed or implied, orally, or in writing, with respect to any other warranty coverage except those expressly stated in this limited Factory Warranty. (b) The Factory Warranty does not cover damages that occur due to: ... -
Page 25: Distributor Responsibility
NOT covered by this Factory Warranty. (e) In no event will TSUNESS Co., Ltd be held responsible or liable for any personal injuries resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or consequential;... - Page 26 TSOL-MP3000/MP2250/MS3000 V1.4 - 26 -...
