Summary of Contents for TSUNESS TSOL-B100E-S

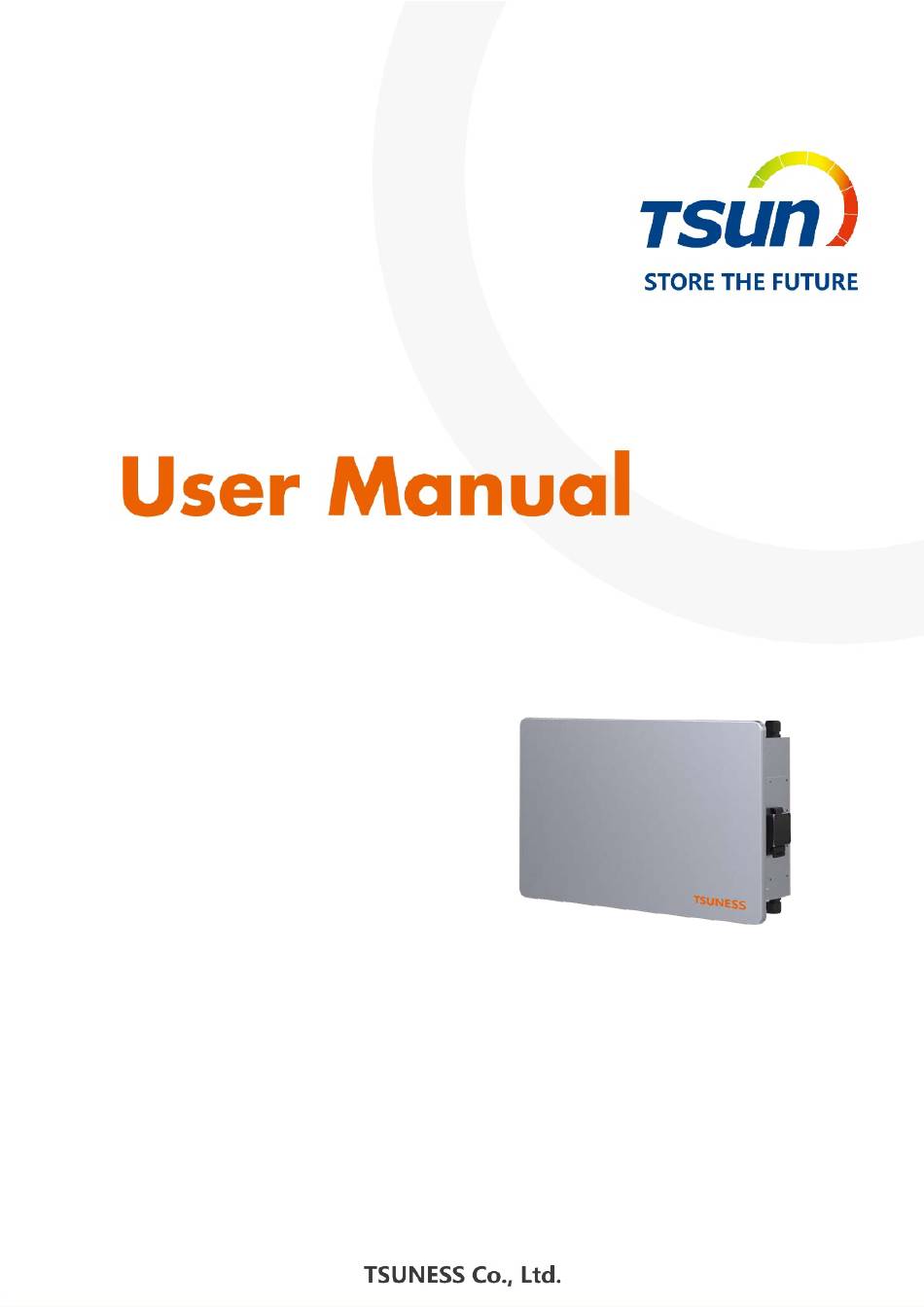

  • Page 1 TSOL-B100E-S...

  • Page 2: Table Of Contents

    Content 1 Notes on this Manual ..........................1 1.1 Scope of Validity ......................... 1 1.2 Target Group ..........................1 1.3 Symbols Used ..........................1 2 Safety ..............................2 2.1 Important Safety Instructions ..................... 2 2.2 Explanation of Symbols ......................3 2.3 Emergency situation ........................

  • Page 3: Notes On This Manual

    1.1 Scope of Validity The User Manual describes system configuration and detailed procedures for installation, operation and maintenance of TSOL-B100E-S Series Inverter Battery. However, this manual does not include any information about inverters that the battery may be applied to. Please read the User Manual before using this product.

  • Page 4: Safety

    Note！  During installation of the battery, circuit breaker must be disconnected from the battery pack wiring.  The battery can only be used as a set with TSUNESS ACU series AC Coupled Unit, otherwise it cannot be used normally.

  • Page 5: Explanation Of Symbols

    2.2 Explanation of Symbols This section gives an explanation of all the symbols shown on the inverter and on the type label. CE mark. The inverter complies with the requirements of the applicable CE guild lines. Dangerous electrical voltage The device is directly connected to public grid, thus all work to the battery shall only be carried out by qualified personnel.

  • Page 6: Introduction

    Use Heptafluoropropane (FM-200) or carbon dioxide (CO ) fire extinguisher for battery fire, If a fire breaks out in the place where the battery pack is installed Use an ABC fire extinguisher, if the fire is not caused by battery and not spread to it yet.

  • Page 7: Datasheet

    3.3 Datasheet Type TSOL-B100E-S Electrical Characteristics Total Energy Capacity[Wh] 5120 Usable Capacity [Wh] 4600 Rated Voltage [V] 51.2 Voltage range [V] 42~58.4 ≤90% Depth Of Discharge[DOD] ≥4000 Cycle Life Max.Charge Current [A] Max.Discharge Current [A] Physical Parameters Battery Type Lithium ion...

  • Page 8: Installation Position

    4.2 Installation Position The battery size shown as follows: This device is cooled by natural convention and suggests an indoor installation or an installation under a sheltered place to prevent the battery from exposure to direct sun, rain and snow erosion. Vertical ground mounting method is recommended and it’s allowed to be installed by maximum tilting 15°...

  • Page 9: Mounting Procedure

    √ √ × × × Please make sure the battery pack is at all times exposed to the ambient air. Poor air circulation will affect the performance of internal electronic components and shorten the service life of inverter. 50CM 50CM 50CM 4.3 Mounting Procedure The battery uses free-standing installation and its position is determined by the drilled...

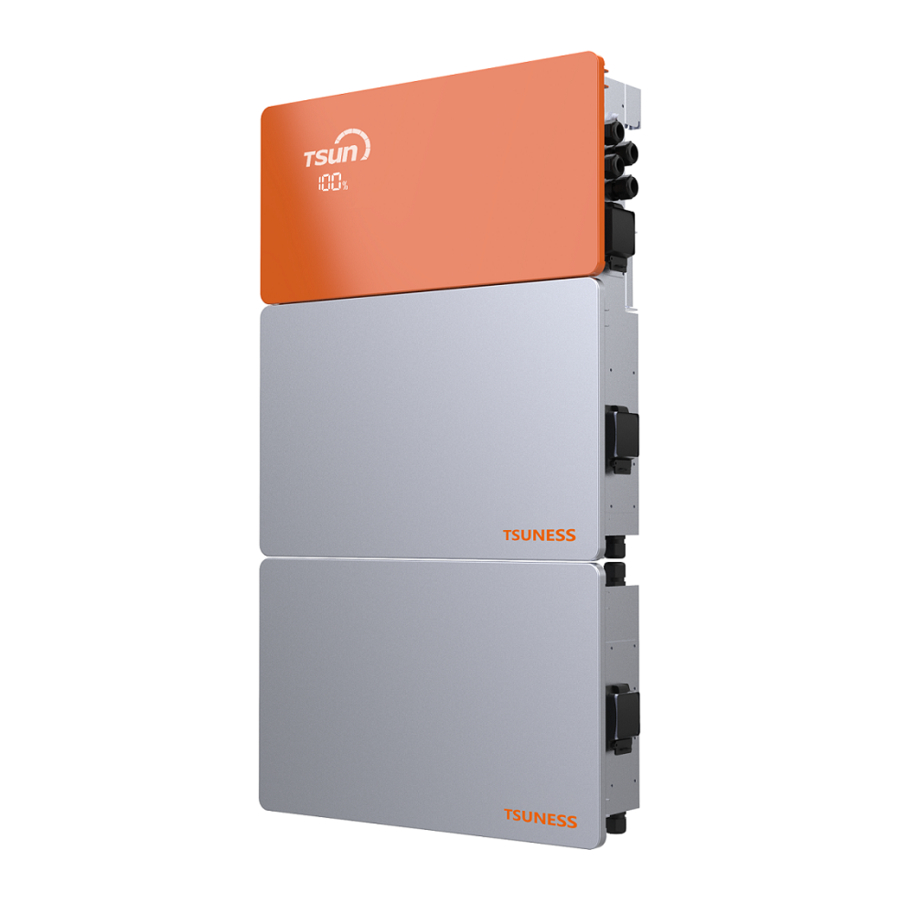

  • Page 10 Mark the location of bracket's holes on the wall and drill the holes. Then use a rubber hammer to drive screws into the holes. TSOL-ACU3.0K is a master machine while TSOL-B100E-S is a slave machine. To ensure the installation of the device, the distance between master and slave machine,...
  • Page 11 Fix the brackets in the marked position with hex screws.
  • Page 12 During installation of the device, please install the slave machines first then the master machines, in order to avoid a failure of installation due to a lack of space between the master machine and the salve machines. Carefully mount the device onto the brackets and make sure the bottom of the device is attached to the brackets.

  • Page 13: Electrical Connections

    5 Electrical Connections 5.1 Electrical Interface Description Object Description BMS switch Battery switch BAT+port C、c BMS LINK port D、d BAT-port E、e 5.2 Slave connection Make sure that the circuit breaker is off, remove the right wiring cover screw and pull out the BMS switch cable then place the cover aside.
  • Page 14 Remove the flange nut head counterclockwise, and remove it when there is a hole plug, as shown in the figure below. Then pass the original cable through the waterproof jacket. Only 3 cables are required (BAT+-BAT, BAT--BAT-, LINK-LINK) to connect a slave. Be careful when connect.

  • Page 15: Communication Interface

    5.3 Communication interface Take out the Ethernet cable fromthe battery packaging. Note: First pass the cable through the waterproof jacket and then crimp the RJ45 plug. Object Description blank blank blank blank blank blank RS485A RS485B Note！  Please use the original matching battery cable ...

  • Page 16: Install The Right Cover

    5.4 Install the right cover Use the M4 screw originally removed to lock the cover plate. Torque is recommended 14kgf.cm. 6 Debugging Instructions 6.1 System commissioning After the wiring is completed, please refer to the ACU series manual for system operation.

  • Page 17: Battery Maintenance

    The battery cannot be disposed of as household refuse. When the service life of the battery reaches to the limit, it is not required to return it to the dealer or TSUNESS, but it must be recycled to the special waste lithium battery recycling station in the area.
