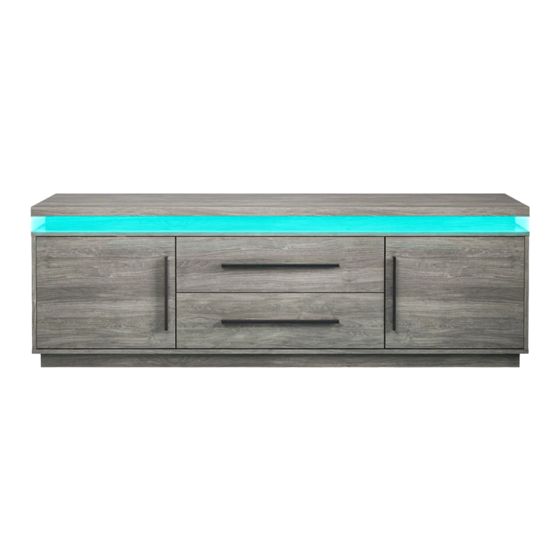

Studio lighted entertainment stand
Hide thumbs

Advertisement

Table of Contents

Studio Lighted Entertainment Stand
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-41026
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 014-HG-41026 and is the answer not in the manual?

Questions and answers

Related Manuals for Belleze 014-HG-41026

Summary of Contents for Belleze 014-HG-41026

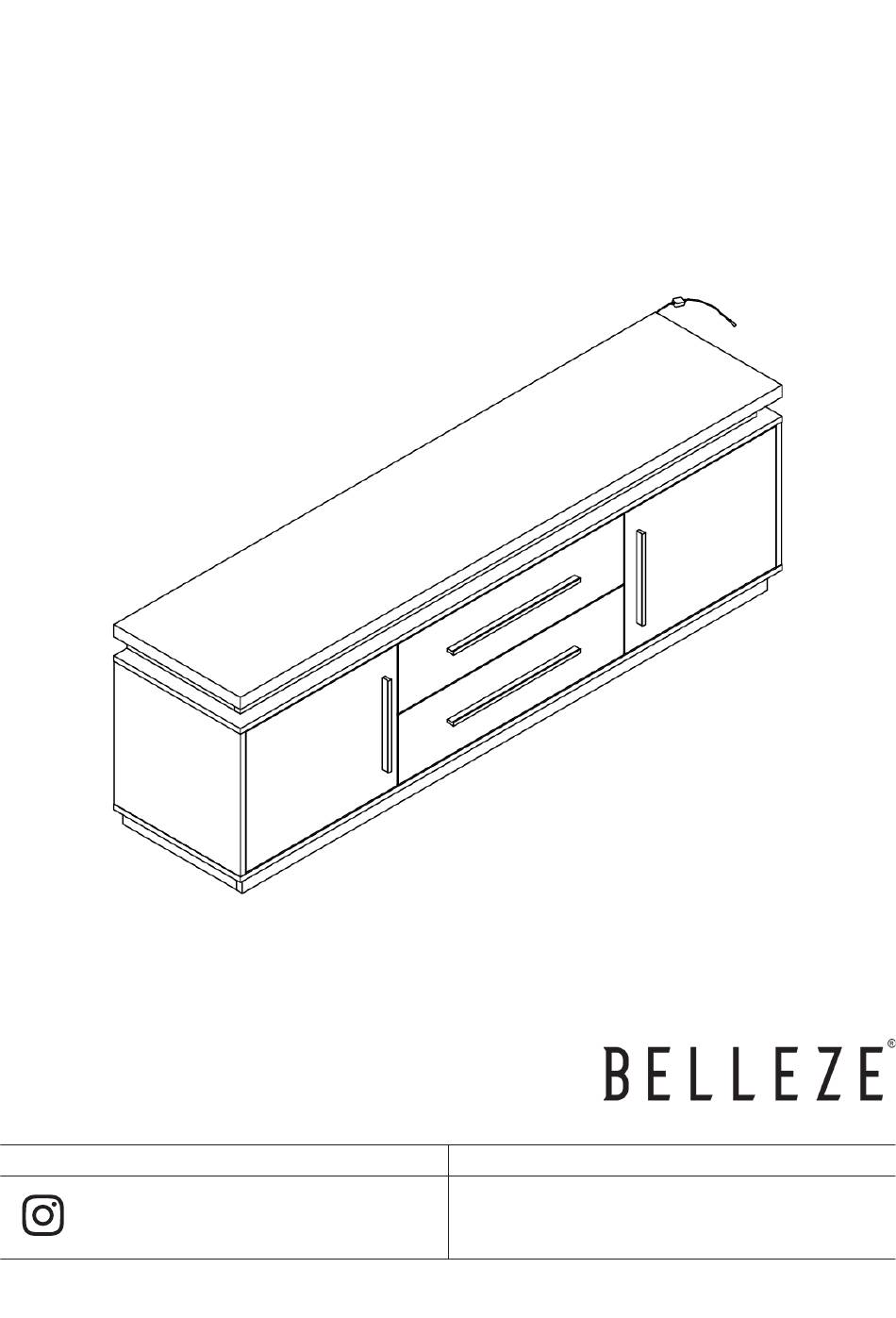

  • Page 1 Studio Lighted Entertainment Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41026 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
