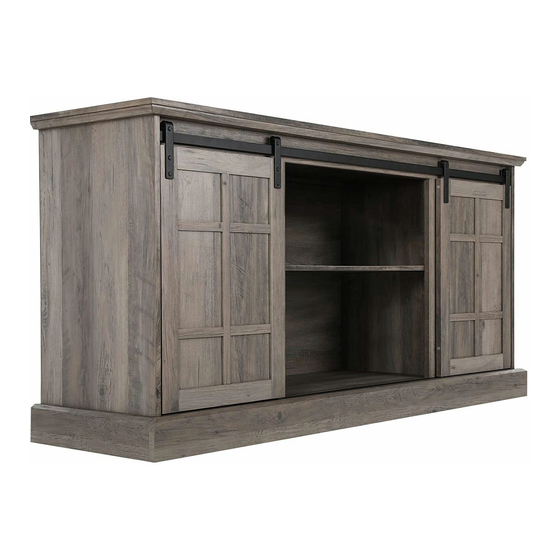

- Page 1 Truman TV Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41000 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Crossbar Left Side Panel Left Medial Panel Right Medial Panel Right Side Panel Center Storage Shelf Panel Side Storage Shelf Panel Side Back Panel Center Back Panel Bottom Panel Long Base Support Short Base Support Left Cabinet Door Right Cabinet Door v.08192022...
- Page 6 PACKAGE CONTENTS 26x + 2x 26x + 2x 33x + 3x 14x + 1x Install all hardware perpendicular to the opening.
- Page 7 PACKAGE CONTENTS 12x + 1x Install all hardware perpendicular to the opening. v.08192022...
- Page 8 Required tools for assembly (Not included) Attach cam bolts to the long base supports.
- Page 9 Assemble the shorts base support between the long base supports Insert wood dowels to the underside of the bottom panel. v.08192022...
- Page 10 Assemble the base support underneath the bottom panel. Attach cam bolts to the left and right medial panels.
- Page 11 Insert wood dowels to the center storage shelf panel. Assemble the center storage shelf panel between the left and right medial panels. v.08192022...
- Page 12 Attach cam bolts to the bottom panel. Insert wood dowel to the bottom panel.
- Page 13 Assemble the center shelf assembly on the bottom panel. v.08192022...
- Page 14 Attach the cabinet door rail to the crossbar. Attach cam bolts to the left and right side panels.
- Page 15 Insert wood dowels to the side of the crossbar. Assemble the crossbar between the left and right side panels. v.08192022...
- Page 16 Assemble the left and right side panels to the bottom panel.
- Page 17 Slide the back panels to the TV stand. Insert shelf pegs to the TV stand and put on the side storage shelf panels. v.08192022...
- Page 18 Attach slide stoppers to the cabinet doors. Attach the sliding guides to the cabinet doors.
- Page 19 Attach door handles to the cabinet doors. Put the cabinet doors to the TV stand, make sure the sliding guides are insert into the sliding grooves. v.08192022...
- Page 20 Attach the sliding roller on top of the cabinet doors Attach cam bolts to the underside of the top panel.
- Page 21 Assemble the top panel on top of the TV stand. v.08192022...
- Page 22 Attach anti-tipping strap behind the TV stand.
- Page 23 Affix the TV stand to a wall. Furniture must permanently fixed to the wall stud with included anti-tipping device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. •...
- Page 24 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 25 ⚠ WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 26 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 27 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.08192022...
-
Page 28: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Encounter any difficulties or missing parts? Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
