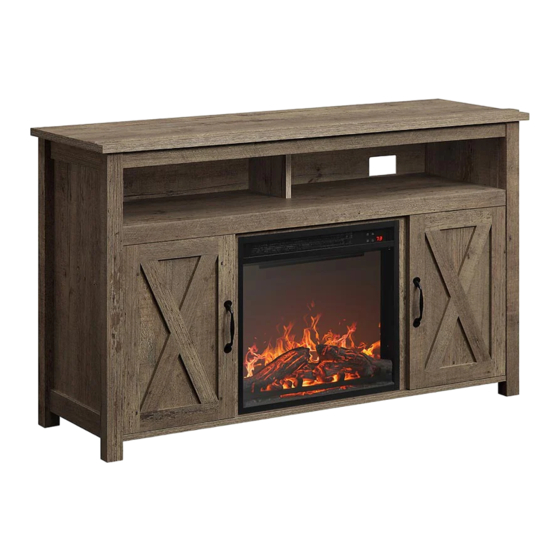

Corin TV Stand w/ Fireplace
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-41008-HT
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.
Advertisement
Related Manuals for Belleze Corin 014-HG-41008-HT
Summary of Contents for Belleze Corin 014-HG-41008-HT
- Page 1 Corin TV Stand w/ Fireplace FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41008-HT The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS (A) CODE DESCRIPTION Top Panel Center Panel Bottom Panel Left Surround Panel Right Surround Panel Center Surround Panel Support Leg Top Divider Panel Top Crossbar Center Crossbar Top Back Panel Cabinet Door PACKAGE CONTENTS (B) CODE DESCRIPTION Left Side Panel Right Side Panel Left Medial Panel Right Medial Panel...
- Page 6 PACKAGE CONTENTS 37x + 2x 37x + 2x 48x + 3x 11x + 1x 12x + 1x 12x + 1x 24x + 2x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Attach cam bolts to the center crossbars (14) and all the legs (20, 21, 22, 23). v.05222023U...
- Page 8 Assemble the center crossbar (14) to the center panel (2). Attach cam bolts to the center panel (2), left surround panel (8), and right surround panel (9).
- Page 9 Assemble the center surround panel (10) between the left and right surround panels (8, 9). Then assemble it to the left and right medial panels (6, 7). Assemble the left and right medial panels (6, 7) to the underside of the center panel (2).
- Page 10 Secure the center top surround panel to the center panel. Assemble the bottom panel (3) to the left and right medial panels (6, 7).
- Page 11 legs (11) to the bottom panel (3). Attach cam bolts to the side panels (4, 5). v.05222023U...
- Page 12 Assemble the left legs (20, 21) to the left panel (4) and the right legs (22, 23) to the right panel (5). and right panels (4, 5). attach oor protectors under legs.
- Page 13 Attach the top divider panel (12) on top of the center panel (2). Slide in the top back panel (18) from the top. v.05222023U...
- Page 14 Note:Screws are provided in the heater package. ⚠ CAUTION The heater has a glass front panel. Careful when handling glass to prevent injury or damage. Set the unit from the back of the fireplace mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the mantel.
- Page 15 Assemble the top panel (1) on top of the stand. v.05222023U...
- Page 16 Secure the top crossbar to the top panel. Secure the back panels in place...
- Page 17 Attach anti-tipping straps to the back of the stand. v.05222023U...
- Page 18 Attach door hinges to the cabinet doors (19). Attach door handles to the cabinet doors.
- Page 19 Attach cabinet doors to the stand. Adjust the position of the cabinet doors. Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm.
- Page 20 Insert shelf pegs into the stand, then put on the storage shelf panels (16).
- Page 21 device to prevent the furniture from tipping over. • Mark drill positions on the wall with a pencil. • Drill a small hole on the marked position. • Insert wall anchors into the drilled holes. • Fixed the anti-tipping strap to the wall with provided screws. v.05222023U...
- Page 22 Attach the top garnishing strip(N) on top of the TV stand. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling off. YOU’RE FINISHED!
- Page 23 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 24 ⚠ WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 25 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 27 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.05222023U...
-
Page 28: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
