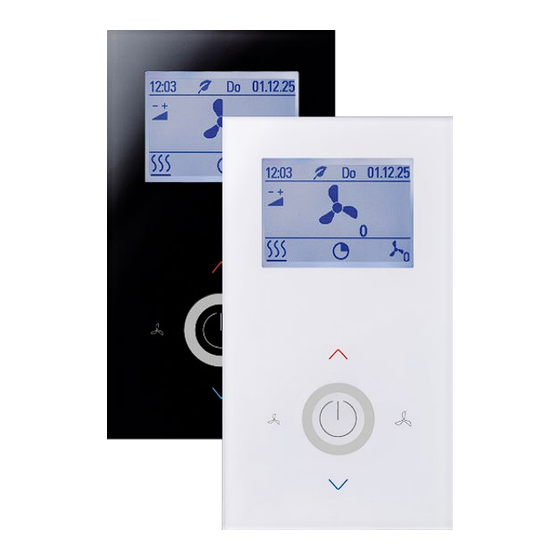

Thermokon JOY Fancoil 5DO Quick Start Manual

JOY Fancoil 5DO | JOY Fancoil EC AO2DO | JOY Fancoil EC 3AO
Mounting Advice
The Accuracy of the room sensors are influenced by the technical specifications as well as the
positioning and the installation type.
During Assembly:
Seal mounting box (if present).
•
Installation type, air draught, heat source, radiation heat or direct sunlight can affect the
•
measurement.
• Bulding material specific properties of the installation place (brick-, concrete-, partition
wall, cavity wall, ...) can affect the measurement.
Assembly not recommendet in...
• Air draught (e.g.: close to windows / doors / fans ...)
• Near heating sources,
• Direct sunlight
• Niches / between furniture / ...
Plasterboard boxes shall be covered by wall paper or paint to avoid that the
plasterboard box's front rim will be partially visible underneath JOY. Maybe consider
using white plasterboard boxes (i.e. Kaiser 9063-77).

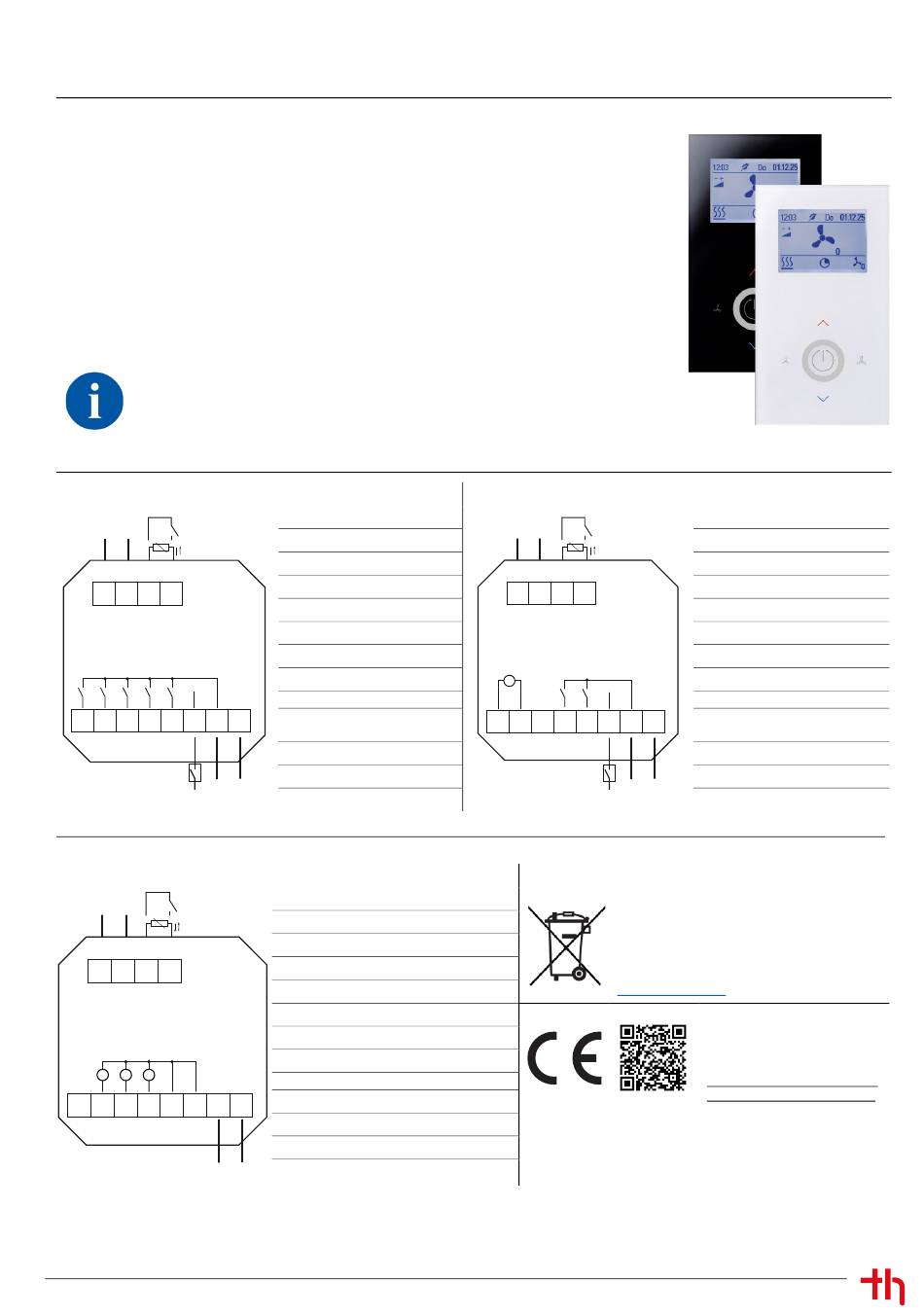

Electrical Connection plan
JOY FC 5DO KNX (85..260 V ~)
ϑ
KNX KNX
- +
GND DI1
9
12 11 10
230V
2 4 5 6 7
1 3
ST3 ST2 ST1 C H
L
L
JOY FC EC 3AO KNX (24 V ~/=)
ϑ
KNX
KNX
-
+
GND DI1
12 11 10 9
U U U
0-10V
0-10V 0-10V
7
1 2 3 4 5 6
DI2 C
FAN H GND GND
+
24VAC/DC
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Deutschland • Tel: +49 2778/6960-0 • www.thermokon.de • email@thermokon.de
1 fan stage 3
2 fan stage 2
3 fan stage 1
4 cooling
5 heating
6 digital input 2 (230 V)
7 L
8 N
9 digital input 1
8
(or NTC10K)
10 GND DI 1
11 (A) KNX
N
12 (B) KNX
1 digital input 2
2 0..10 V (EC fan)
3 cooling (0..10 V) or 6-way walve
4 heating (0..10 V) or 6-way walve
5 GND DI 2
6 GND
7 24 V = (±10%) or 24 V ~ (±10%)
8 GND
9 digital input1 (or NTC10K)
8
10 GND DI 1
11 (A) KNX
-
12 (B) KNX
© Technische Änderungen vorbehalten • A140 - 10.07.2024
JOY FC EC AO2DO KNX (85..260 V ~)
ϑ
KNX KNX
- +
GND DI1
12 11 10 9
U
0-10V
1 2 4 5 6 7
-
+
C H
FAN
L
L
the product or removable batteries must not be
disposed of with household or commercial
waste. Dispose of the product separately and
appropriately. Alternatively, please contact your
supplier or Thermokon Sensortechnik GmbH.
Further
www.thermokon.de
1 GND
2 0..10 V (EC fan)
4 Cooling
5 Heating
6 digital input 2 (230V)
7 L
8 N
9 digital input 1
8
(or NTC10K)
10 GND DI 1
11 (A) KNX
N
12 (B) KNX
information can be found
Declaration of conformity
The declaration of conformity
of the products are available
on our website:
https://www.thermokon.de/dire
ct/en-gb/categories/joy-fancoil
Seite 1 / 2
at:
