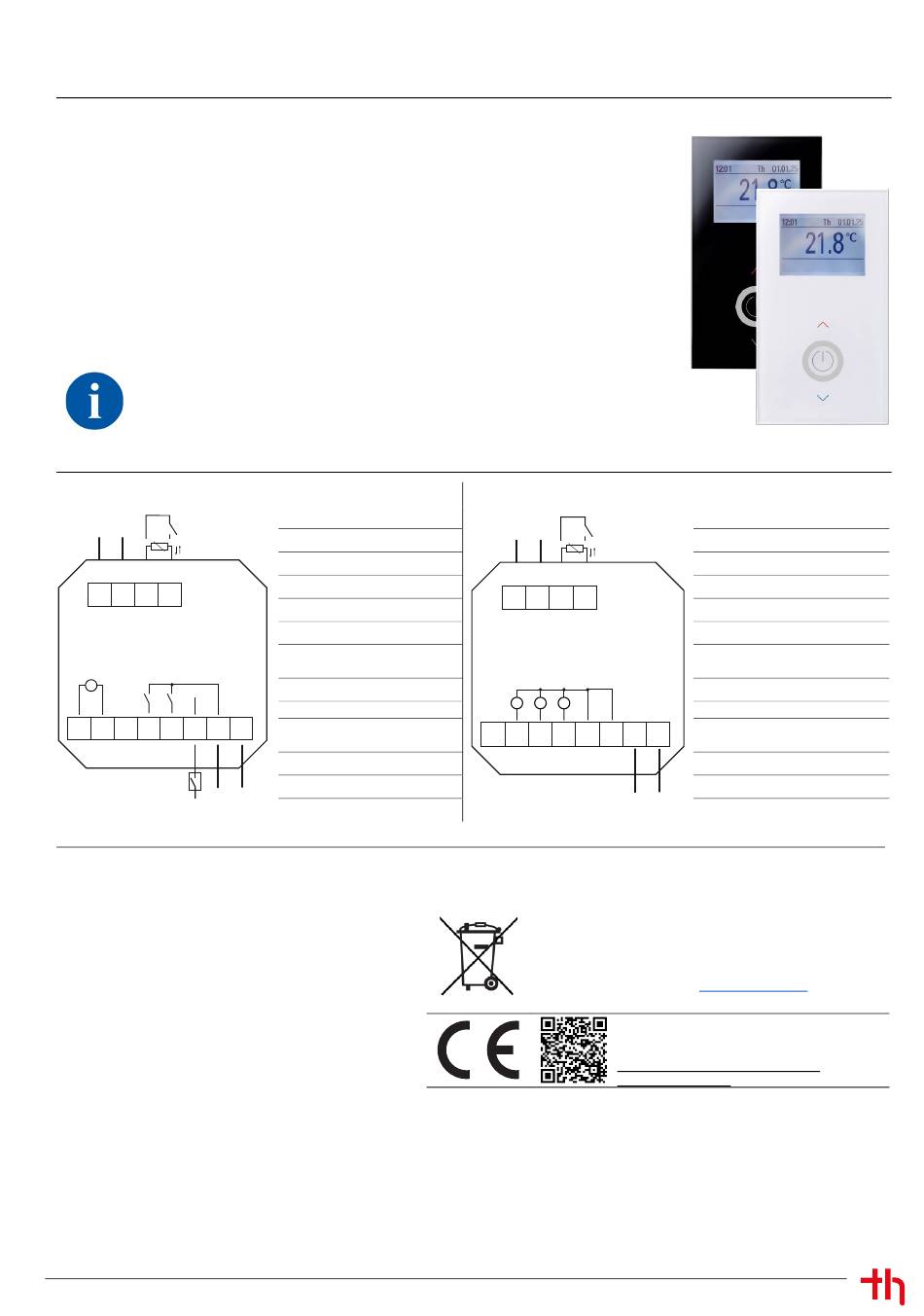

Thermokon JOY HC AO2DO Quick Start Manual

JOY HC AO2DO | JOY HC 3AO
Mounting Advice
The Accuracy of the room sensors are influenced by the technical specifications as well as the
positioning and the installation type.
During Assembly:
Seal mounting box (if present).
•
Installation type, air draught, heat source, radiation heat or direct sunlight can affect the
•
measurement.
• Bulding material specific properties of the installation place (brick-, concrete-, partition
wall, cavity wall, ...) can affect the measurement.
Assembly not recommendet in...
• Air draught (e.g.: close to windows / doors / fans ...)
• Near heating sources,
• Direct sunlight
• Niches / between furniture / ...
Plasterboard boxes shall be covered by wall paper or paint to avoid that the
plasterboard box's front rim will be partially visible underneath JOY. Maybe consider
using white plasterboard boxes (i.e. Kaiser 9063-77).
Electrical Connection plan
JOY HC AO2DO (85..260 V ~)
ϑ
KNX KNX
- +
GND DI1
9
12 11 10
U
0-10V
1 2 4 5 6 7
-
+
C H
6WV
L
L
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Deutschland • Tel: +49 2778/6960-0 • www.thermokon.de • email@thermokon.de
1 GND (6-way valve)
2 0..10 V (6-way valve)
4 Cooling
5 Heating
6 digital input 2 (230V)
7 L
8 N
9 digital input 1
8
(or NTC10K)
10 GND DI 1
11 (A) KNX
N
12 (B) KNX
© Technische Änderungen vorbehalten • A140 - 10.07.2024
JOY HC 3AO (24 V ~/=)
ϑ
KNX KNX
-
+
GND DI1
9
12 11 10
U U U
0-10V
0-10V 0-10V
7
1 2 3 4 5 6
DI2 6WV C H GND GND
+
24VAC/DC
The product or removable batteries must not be disposed of
with household or commercial waste. Dispose of the product
separately and appropriately. Alternatively, please contact
your supplier or Thermokon Sensortechnik GmbH. Further
information can be found at:
Declaration of conformity
The declaration of conformity of the products
are available on our website
https://www.thermokon.de/direct/en-
gb/categories/joy-hc
1 digital input 2
2 0..10 V (6-way valve)
3 cooling (0..10 V)
4 heating (0..10 V)
5 GND DI 2
6 GND
7 24 V = (±10%) or 24
V ~ (±10%)
8 GND
9 digital input1
8
(or NTC10K)
10 GND DI 1
11 (A) KNX
-
12 (B) KNX
www.thermokon.de
Seite 1 / 2
