JOY HC AO2DO | HC 3AO
Room Regulator (from Version 2.6.x)
Datasheet
Subject to technical alteration
Issue date: 01.05.2023 • A125
»
APPLICATION
JOY HC AO2DO (85..260 V ~)

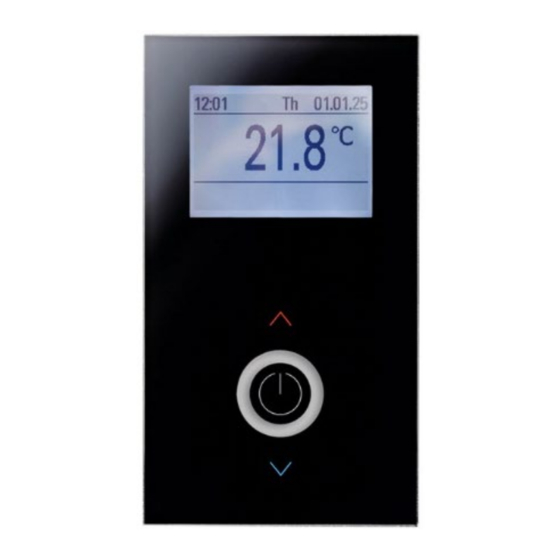

Room thermostat in an appealing design for heating/cooling (230 V) and controlling a 6-way valve. Used for individual control of temperature in
commercial and residential buildings. The device combines a modern design with a 2,5" touch surface, which enables the single room controller to
be used intuitively. 3 time channels with 4 periods of time can be configured via the menu. This device is suitable for a flush mount box.
JOY HC 3AO (24 V ~/=)
Modern design, flush mounting room thermostat. Used for individual control of temperature in commercial, industrial and residential buildings. It is
tailored for two-pipe and four-pipe units with two-wire electric valves and controlling a 6-way valve. The device combines a modern design with a
2,5" LCD and a touch-sensitive surface, 3 time program options each with 4 time periods options.
»
SECURITY ADVICE – CAUTION
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product must not be used
in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in danger to
human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating equipment.
CAUTION! Risk of electric shock due to live components within the enclosure, especially devices with mains voltage supply
(usually between 90..265 V).
Please comply with:
•
Local laws, health & safety regulations, technical standards and regulations
Condition of the device at the time of installation, to ensure safe installation
•
•
This data sheet and installation manual
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com
JOY_HC_Datasheet_en © 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thermokon JOY HC AO2DO
Summary of Contents for Thermokon JOY HC AO2DO
- Page 1 Condition of the device at the time of installation, to ensure safe installation • • This data sheet and installation manual Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023...
- Page 2 NOTES ON DISPOSAL As a component of a large-scale fixed installation, Thermokon products are intended to be used permanently as part of a building or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act (WEEE) is not applicable. However, most of the products may contain valuable materials that should be recycled and not disposed of as domestic waste.
-
Page 3: Technical Data
Inputs DI 1 DI 2 | DI 3 1 input for NTC10K or floating contact 2 inputs for floating contact Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023... - Page 4 Heating/ The symbol „Timechannel active“ Cooling is only shown when a time channel is active. Time- channel active Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023...
-
Page 5: Diagnostics Menu
Press buttons for 3 seconds simultaneously If no entry is made for 8 minutes, the parameter menu is left automatically. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023... - Page 6 MENU → SENSOR SETTINGS Offset correction for internal and external sensor value. The temperature display can also be changed from °C to °F. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023...
-
Page 7: Connection Plan
(DI2, only possible with the 230V version). It must be ensured that the same phase is used for jointly switched devices. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023... -
Page 8: Dimensions (Mm)
Decorative frame pure white for JOY Item No. 681452 Decorative frame black for JOY Item No. 740951 MicroSD card 2GB Item No. 500098 Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 · fax:-400 www.thermokon.com email@thermokon.com JOY_HC_Datasheet_en © 2023...
