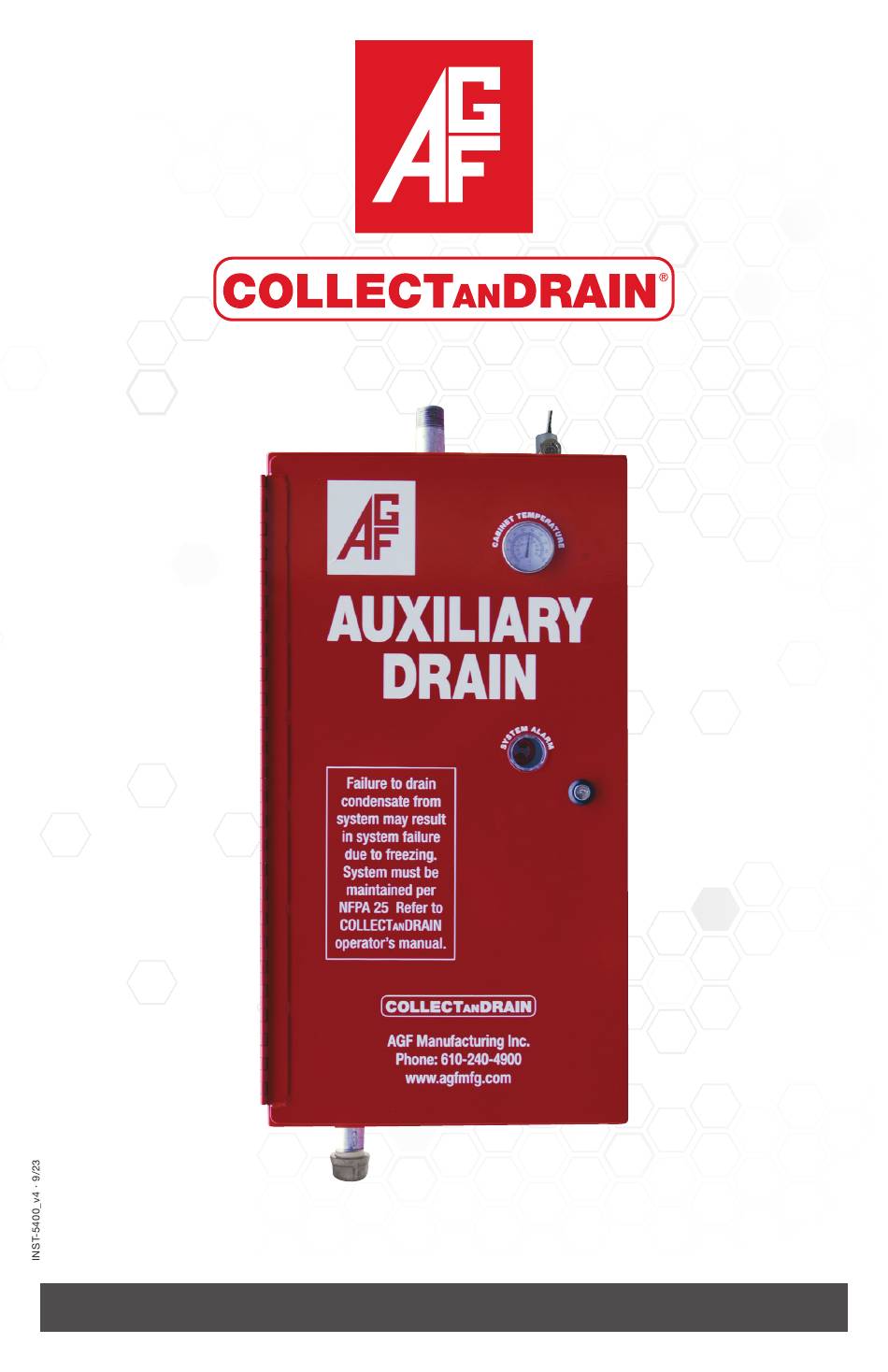

- Page 1 Model 5400 Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual for Models with Serial Number 5400-1000 and Higher www.agfmfg.com...
-
Page 2: Table Of Contents
Maintenance Instructions Verify Alarm Operation ..............10 Verify Heater Operation (M5400A/B) ..........10 Verify Heater and HOT Monitor Operation (M5400H) .....10 Change Timer Setting (M5400H) ............11 Change Thermostat Setting ............11 AGF Manufacturing 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 techsupport@agfmfg.com www.agfmfg.com... -
Page 3: Model 5400 Collect An Drain
The Model 5400 maintains a comfortable temperature above freezing while minimizing power consumption. CAUTION: The heater and its deflector bracket may be hot. Use care when accessing the main cabinet for any reason. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... - Page 4 Model 5400 Owner’s Manual The 150W heater is controlled by a user-set thermostat. The factory default setting of 60° F is recommended for temperatures down to 0° F. Consult AGF for thermostat settings if operating in an environment below 0° F. The thermostat controls the heater operation to within approximately ±10°...
-
Page 5: Installation Instructions Unpacking
Mounting Instructions. 1. Isolate the zone where the COLLECT DRAIN will be installed. 2. Relieve air pressure from the branch line. 3. Remove the existing auxiliary drain. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 6: Mounting Instructions
1. Install a low-point junction box within reach of the provided power leads. 2. Run conduit to the ½” fitting on the top of the unit. Pull power leads through conduit and connect leads to wiring from the main electrical panel. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 7: Verify Correct Operation
3. Push and hold the “TEST” button on the front of the control panel for five (5) seconds to verify that the audible alarm sounds and the LED blinks. 4. Turn thermostat set-point dial (red) clockwise until the heater turns on. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... - Page 8 The default setting of 60° F (the dot between the 50 and 70) is recommended for outside temperatures down to 0° F. If operating below 0° F the set point should be increased. Consult AGF for set point guidelines.
-
Page 9: Operating Instructions To Collect Condensate
The system must be maintained per NFPA 25. It is especially important to keep the unit maintained during the winter season when temperatures are near, or below freezing. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 10: Verify Alarm Operation
7. Reset the time band (top dial) to the previous setting. The leg of the cross with the arrow points to the band. 8. Install the control panel cover and tighten the screws. www.agfmfg.com AGF Manufacturing • Phone: 610-240-4900 • techsupport@agfmfg.com •... -
Page 11: Change Timer Setting (M5400H)
The default setting of 60° F (the dot between 50 and 70) is adequate for outside temperatures down to 0° F. If operating below this temperature the set point should be increased. Consult AGF for set point guidelines. -
Page 12: Agf Manufacturing
AGF Manufacturing 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 techsupport@agfmfg.com www.agfmfg.com...
