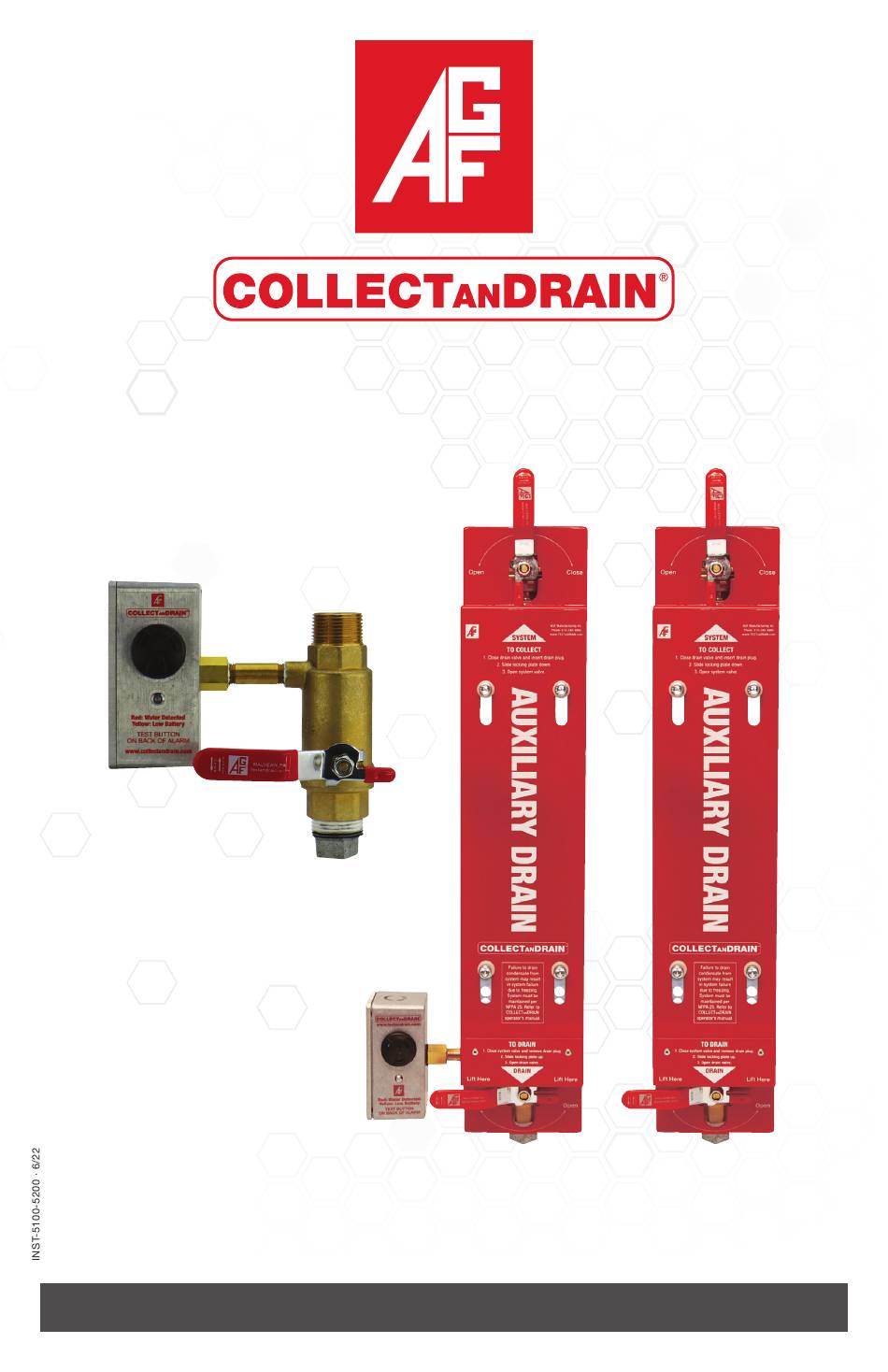

- Page 1 Models 5100ALBV ∙ 5100 ∙ 5200 Model 5100ALBV Model 5100A Model 5200A Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual www.agfmfg.com...
- Page 2 NFPA standards to avoid accidental tripping, improper maintenance, and acts of vandalism. The 5100ALBV Water Detection Alarm detects the presence of water in the COLLECT DRAIN and alerts personnel when maintenance DRAIN Models 5100 and 5200 are NOT designed is needed.
- Page 3 The COLLECT DRAIN must be completely drained to silence the alarms. If the Model 5100ALBV is wired directly to a fire panel or BMS call or email AGF for instructions on silencing the water detector’s local alarms. Model 5100/5200 OPERATING INSTRUCTIONS To Collect Condensation per NFPA 25: 1.
- Page 4 Then, remove the existing drain valve (lower) from the auxiliary drain 3. Apply a proper sealant to the Model 5100ALBV threads and install it on the auxiliary drain where the existing drain valve was just removed. Then, apply a proper sealant to the drain plug threads and make sure it is secured tightly into the bottom of the 5100ALBV.
- Page 5 Quality Components for Fire Sprinkler Systems Model 5100ALBV OPERATING INSTRUCTIONS Power is supplied to the Model 5100ALBV by a 9V battery (default) or by installing a 12-24VDC external hard wire (See page 6). Optional 110V plug is also available. NOTE: The 5100ALBV can draw up to 100mA during operation. Ensure the power supply is sized appropriately for this and any other loads on the same circuit.
- Page 6 When the Temperature Sensing Function is enabled and water is present in the auxiliary drain the Model 5100ALBV will not activate the audible and visual alerts if the ambient temperature is above 45° F. When water is present and the ambient temperature falls below 45°...
- Page 7 Alarm functions at all times (disengaged) 3. Replace the cover with the four screws. NOTE: If the Temperature Jumper only utilizes two pins call or email AGF for instructions on how to engage/disengage the Temperature Sensing Function. REMOTE NOTIFICATION FUNCTION The Model 5100ALBV Water Detection Alarm also features a Remote Notification Function.
