Summary of Contents for AGF COLLECTanDRAIN 5450

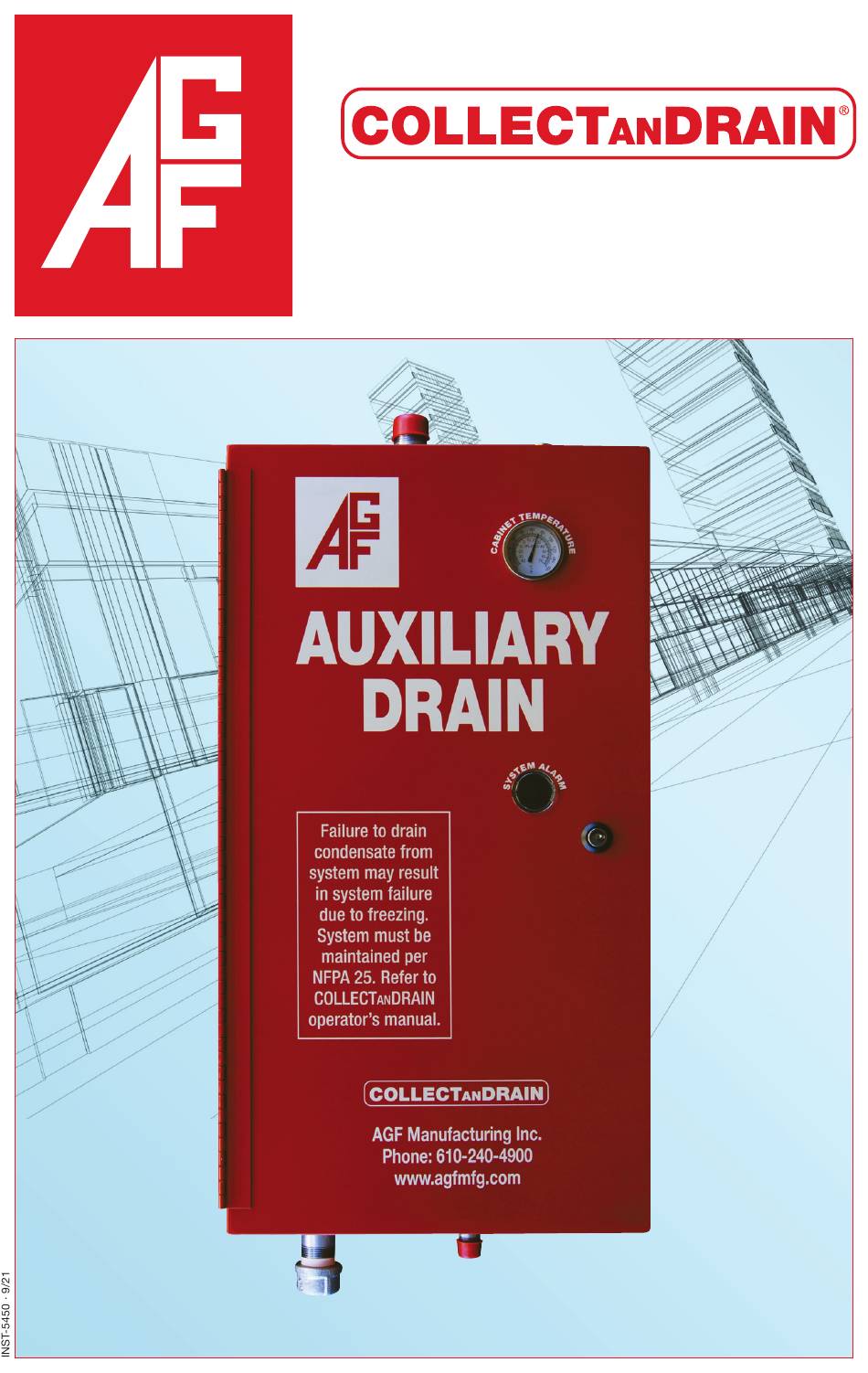

- Page 1 AGF Manufacturing Inc. Model 5450 Owner’s Manual...
-
Page 2: Table Of Contents
AGF Manufacturing Inc. TABLE OF CONTENTS Introduction ..................3 Installation Instructions ............... 4-7 Unpacking ..................4 Sprinkler System Preparation ............4 Mounting ...................4 Wiring ....................5 Verify Correct Operation ............... 6-7 Operating Instructions ..............7-9 To Collect Condensate ..............8 To Drain Condensate ..............8-9 Maintenance Instructions ............ -
Page 3: Introduction
System Supply Pipe Float Switch Electrical Connection System Supply Valve “TEST” Button Alarm Light Y-Strainer Heater Drain Trap Drain Trap Drain Pipe System Drain Valve System Drain Pipe Drain Pipe Cap AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmfg.com... -
Page 4: Installation Instructions
Model 5450 COLLECT DRAIN Owner’s Manual ® INSTALLATION INSTRUCTIONS Unpacking: 1. Unpack the COLLECT DRAIN M5450 unit and carefully inspect for any damages from shipping. 2. Verify box contents: • COLLECT DRAIN M5450 unit • Four (4) Rubber Mounting Washers •... -
Page 5: Wiring
2. Connect one wire to the AC1 (auxiliary contact) terminal. 3. Connect the other wire to the AC2 (auxiliary contact) terminal. 4. Connect these wires to the appropriate place in the Remote Panel. AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmfg.com... -
Page 6: Verify Correct Operation
60° F (the dot between 50 & 70) is adequate for outside temperatures down to 0° F. If operating below this temperature, the set-point should be increased. Consult AGF for set-point guidelines. 6. Install the Alarm Panel cover and tighten the four screws. -
Page 7: Operating Instructions
The factory default setting of 60° F is suitable for conditions down to 0° F. Consult with AGF for recommended settings if operating the M5450 in an area below 0° F. The thermostat controls the heater operation to within approximately ±... -
Page 8: To Collect Condensate
Model 5450 COLLECT DRAIN Owner’s Manual ® The M5450 features a thermometer on the cabinet door for measuring the ambient temperature inside the unit. This thermometer is for checking the operating status of the internal heater. The reading on the thermometer, based on its location in the cabinet, may range from 40°... -
Page 9: Maintenance Instructions
4. Reinstall the screen and tighten the hex cap. 5. Close the Drain Valve and install the 1” Pipe Cap on the pipe at the bottom of the cabinet. AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmfg.com... -
Page 10: Verify Heater Operation (M5450)
Model 5450 COLLECT DRAIN Owner’s Manual ® 6. Open the Supply Valve and check for any leaks. 7. Close and lock the cabinet using the supplied keys. M5450 Verify Heater Operation: CAUTION: Always take the necessary precautions when entering the Alarm Panel when 120V power is present. -
Page 11: Change Timer Setting (M5450H)
The default setting of 60° F (the dot between 50 & 70) is adequate for outside temperatures down to 0° F. If operating below this temperature the set-point should be increased. Consult AGF for set-point guidelines. -
Page 12: Agf Manufacturing Inc
AGF Manufacturing Inc. 100 Quaker Lane • Malvern, PA 19355 Phone: 610-240-4900 Fax: 610-240-4906 www.agfmfg.com...
