Omron D40A-2 Series Instruction Manual

Original instructions 3644254-3B (Side-A)

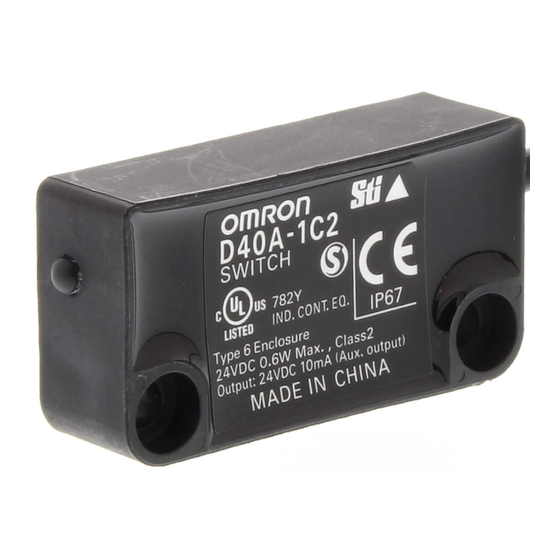

Model D40A-2
Safety Door Switch
The D40A-2 safety door switch provides a safety-related
interruption at a specified proximity position of its actuator
through a safety controller.
EN INSTRUCTION MANUAL
Thank you for purchasing D40A-2 Safety Door Switch.
Please read and understand this manual before using the
products. Keep this manual ready to use whenever
needed. Only qualified person trained in professional
electrical technique should handle D40A-2. Please
consult your OMRON representative if you have any
questions or comments. Make sure that information
written in this document are delivered to the final user of
the product.
© OMRON Corporation 2024 All Rights Reserved.
Instructions in the EU languages and a signed EU Declaration of
Conformity are available on our website at
http://www.industrial.omron.eu/safety.
Declaration of Conformity
OMRON declares that D40A-2 is in conformity with the
requirements of the following EU Directives and UK Legislation:
EU: Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU,
RoHS Directive 2011/65/EU
UK: 2008 No. 1597 Machinery (Safety), 2016 No. 1091 EMC,
2012 No. 3032 RoHS
Safety Standards
D40A-2 is designed and manufactured in accordance with the
following standards:
ISO/EN ISO 13849-1: Cat. 4 PL e*
IEC/EN 61508 SIL3*
IEC/EN 60947-5-3 PDDB*
EN 55011, ISO/EN ISO 14119 (Low level coded)
UL 508, CAN/CSA C22.2 No. 14
* D40A-2 complies with these standards when connected to
the following OMRON Safety Controllers:
Non-Contact Door Switch Controller: G9SX-NS Series
Safety Controller: G9SP Series or NX Series Safety Control Unit
Safety Precautions
Indicates a potentially hazardous situation
which, if not avoided, will result in minor or
moderate injury, or may result in serious
WARNING
injury or death.
Additionally there may be significant property
damage.
Alert Statements
WARNING
Use only appropriate components or devices complying
with relevant safety standards corresponding to the
required performance level and category. Conformity to
requirements of the performance level category must be
determined as an entire system. It is recommended to
consult a certification body regarding assessment of
conformity to the required safety level.
Serious injury may occur in an accident. Make sure to use
the dedicated actuator D40A-A2, and install the switch
and actuator at an appropriate distance so that they do
not create a gap that provides access to the hazard.
Available Not available
Serious injury may occur in an accident. When complying
with safety standards, install the product in accordance
with ISO/EN ISO 14119 with due consideration of the risk
of the operator deactivating it.
Auxiliary output is NOT a safety output. Do not use the
Auxiliary output individually for any safety function. Such
incorrect use causes loss of the safety function of the
product and its relevant systems.
Serious injury may possibly occur in an accident.
Do not put the actuator or magnet close to the switch
when the door is opened.
Be sure to inspect the product daily and every 6 months.
Otherwise, serious injury may possibly occur due to the
system malfunction.
Precautions for Safe Use
(1) Dispose of the product in accordance with the laws set by each
country.
(2) Wire the input and output terminals correctly and verify the
correct operation of the product before using the system in
which the product is incorporated. Incorrect wiring may lead to
loss of the safety function.
(3) After the installation of the product, responsible personnel must
ensure that the installation, inspection, and maintenance are
carried out correctly. These personnel must be qualified and
authorized to ensure safety throughout each phase of design,
installation, running, maintenance, and disposal of the system.
(4) Tighten each screw with specified torque by using M4 screws
with a screw head diameter of up to 7mm or less for the
installation of the switch and actuator. After installation and
commissioning, the fixing screws for the switch and actuator
should be coated with tamper-proof varnish or a similar
compound to prevent loosening. Using anaerobic locking
compounds can damage the plastic case of each switch and
actuator if the compounds come into contact with the case.
(5) Serious injury may occur in an accident. Do not apply DC
voltages exceeding the rated voltages, nor any AC voltages to
the product.
Precautions for Correct Use
(1) The contents of Precautions for Safe Use: Paragraph 16 Series
Connection, Section 5. Connection Example, and Troubleshoot-
ing in this instruction manual are based on the assumption that
the product will be used in combination with the G9SX-NS
series. Refer to the D40A-2 data sheet (Cat. No. F133) for use
in combination with other OMRON safety controllers.
(2) Do not drop the product to the ground or expose to vibration or
mechanical shocks out of the rated values. Doing so may
damage the product and cause failure.
(3) Do not store or installation the product in the following places.
Doing so may result in product failure, or incorrect operation.
1) Places subject to direct sunlight
2) Operation in the range exceeding -25°C to 70°C
Storage at temperatures exceeding -25°C to 75°C
3) Operation in the range of relative humidity exceeding 25% to
85%
Storage at relative humidity exceeding 25% to 95%
Places subject to condensation due to sudden temperature
changes
4) Places subject to corrosive or flammable gases
5) Places subject to vibration or mechanical shocks exceeding
the rated values to the product
6) Operation in locations subject to exposure to oil, or chemicals
Storage in locations subject to exposure to water, oil, or
chemicals
7) Places subject to dust, salt, or iron particles
8) Places subject to iron cuttings or particles, etc. are directly
exposed
(4) Do not mount the switch and actuator on magnetic materials,
otherwise it may affect the operating distance.
Refer to the chart below for the estimated influence.
Distance from magnetic
Operating distance
materials
Operates approximately
Less than 5 mm
90% of the original value
5 mm Min. Operation is not affected
(5) Wiring
1. Use the following wire sizes for wiring.
-Stranded wire: 0.2 to 2.5 mm AWG24 to AWG12
2
-Solid wire: 0.2 to 2.5 mm 2 AWG24 to AWG12
2. When not using the auxiliary output, cut and insulate the
unused wires to prevent contact with other terminals.
3. If laying an additional cable of 20 m or longer, bundle the
white, black, brown and blue lines together.
(6) Do not use the product as a stopper. Keep the distance
between switch and actuator at least 1 mm.
(7) Handling the Cables:
1) When bending cables for wiring, the bending radius shall be
6 times or more than the cable outer diameter.
2) Do not apply a tensile strength of 50 N or greater to the cables.
(8) When two or more Switches are mounted side-by-side, they
must be no closer than the following distance.
25 mm*
25 mm*
* When mounting side-by-side with a D40Z Switch: 50 mm min.
(9) Do not use the product at an altitude of 2,000 m or higher.
(10) The degree of protection does not guarantee performance in
environments with continuous water exposure. Do not use the
product in water. Doing so may lead to water entered into the
product.
Conditions for the degree of protection
- Temperature range: 15 to 35°C, Humidity: 25 to 75%,
Atmospheric pressure: 86 to 106 kpa
(11) Never disassemble, repair, or modify the product. Doing so may
cause loss of the safety function.
(12) Do not use the product in magnetic fields greater than 1.0 mT.
The product may not function properly.
(13) Insert the surge absorber as follows:
- D40A-2C: Between the blue wire and the white, black,
brown, and yellow wires
- D40A-2D: Between the blue wire and the white, black, and
brown wires, and between the yellow wire and the gray wire
The recommended surge absorber specifications are as follows:
- Peak pulse power: 600 W (10/1000 μs) or more (Per IEC
61000-4-5 (surge immunity))
- Breakdown voltage: 30 to 35 V
(14) Do not allow the product to come into contact with oil or solvents.
The oil or solvents can cause the markings on the product to
become illegible and lead to deterioration of certain parts.
(15) In a residential environment, this product may cause radio
interference, in which case the user may be required to take
adequate measures.
(16) Use the product under the following conditions for in-series
connection.
1. Connect up to 30 units of the product.
2. Wire the product in series according to the following
conditions for the total wiring length. The supply voltage to
the product may decrease due to voltage drop depending on
the cables or the wiring configuration.
Make sure the power supply voltage for the product is within
the rated range.
 30 or less the D40A-1  Auxiliary output load
series, D40A-2 series
The auxiliary output load current
or D40Z connected.
of the D40A-2C must be
met the following conditions.
When using G9SX-NS202
(Note)
Possible for up 50 mA max.
(Note)
to 15 Units
16 to 20 Units 30 mA max.
Total wiring length
200 m max.
21 to 30 Units 20 mA max.
When using G9SX-NSA222
(Note)
D1 D2 D3 D4
Possible for up 50 mA max.
to 30 Units
G9SX-NS202
G9SX-NSA222
Note. The wiring length between the products must be 100 m max.
3. The D40A-2 series connected in series can be used together
with the D40A series (D40A-1C) or the D40Z series.
However, the D40A series (D40A-1C) and the D40Z series
cannot be used together.
1 Detection Ranges
5 mm 15 mm
Note. Refer to the D40A-2 data
sheet (Cat No. F133) for
details on the engineering
Unstable
ON OFF
range data examples.
2 Switch and actuator operation
 Switch and Actuator Mounting Directions
The switch and actuator
Match the target marks
will not operate properly
with each other.
if the target marks do
not match.
Label Label
printing printing
surface surface
Label
Match the target marks
printing
with each other.
surface
Switch
Actuator
Actuator Switch Actuator
Available Available Not available
 Switch and Actuator Operating Directions
Available Available Available Not available
 Indicators
LED color Status
Red Sensor does NOT detect actuator
Yellow Sensor detect actuator
3
Internal connection
 D40A-2C  D40A-2D
1. Brown Brown
3. Blue Blue
2. White White
4. Black Black
Yellow
5. Yellow
Gray
4 Ratings and Specifications
 Ratings
Item D40A-2
Supply voltage 24 VDC +10%/-15% (class 2 or LVLC)
Rated power consumption 0.6 W max. (See note 1.)
D40A-2C: 24 VDC, 50 mA
(PNP transistors output)
Auxiliary output
D40A-2D: 24 VDC, 20 mA
(Photocoupler output)
 Specifications and Performance
Item
D40A-2
OFFON 5 mm min. (See note 2.)
ONOFF 15 mm max. (See note 2.)
Assured
Differential travel 2.5 mm max.
operating
±20% of operating distance at 23°C,
and
Temperature
within temperature range of -25 to
release
influence
70°C
distance
Repeat accuracy ±10% of operating distance at 23°C
(max.)
Switching frequency 1 Hz
-25 to 70°C
Ambient temperature
(No freezing or condensation)
25% to 85%
Ambient humidity
Insulation resistance
50 M ohm min.
(Between all conductive parts and
(by 500 VDC megger)
switch case)
Dielectric strength
(Between all conductive parts and 1000 VAC for 1 min
switch case)
25 mm*
Rated impulse withstand
1 kV
voltage
Frequency: 10 to 55 Hz
Vibration resistance
Amplitude: 0.75 mm half amplitude
Mechanical shock resistance 300 m/s min.
2
Pollution degree 3
Electromagnetic compatibility As per IEC/EN 60947-5-3
IEC 60529 IP66/IP67
Degree of
protection
UL 50E Enclosure Type 5
Material Molded PBT (case)/ PVC (cable)
Terminal tightening torque
1 N·m
for M4 screws
Switch (D40A-2C5): approx. 215 g
Weight Switch (D40A-2D5): approx. 225 g
Actuator (D40A-A2): approx. 25 g
Note 1. Power consumption of loads is not included.
Note 2. Operating distance means the distance of sensing surfaces between
switch and actuator.
5 Connection Example
 Multiple switch connection
Maximum 30 switches can be connected in series.
D1 D2 D3 D4
G9SX-NS202
G9SX-NSA222
 Wiring
Signal Name Wiring color
+ Brown
Safety door switch
power input
- Blue
Safety door switch signal input White
Safety door switch output Black
Yellow
Auxiliary output
Gray
Indicator (See note.)
Expected causes of the faults
D40A-2 G9SX-NS
Failures involving the wiring of power supply
input
Light off NS Light off
Failures of the parts of the circuits of D40A-2
Sensor does NOT detect actuator
Red
NS Light off Magnetic forces other than the D40A-A2
Light on
actuator were detected
Failures of the parts of the circuits of D40A-2
Failures involving the wiring of D40A-2 input
Yellow NS Light off
Failures involving the wiring of D40A-2 outputs
Light on or NS Blink
Failures of the parts of the circuits of D40A-2
Note. When the switch and actuator are within the ON area.
Some of the main causes are listed above. Refer to the D40A-2 data sheet (Cat No. F133) for others.
Performance Level and Category
The D40A-2 together with OMRON safety controllers listed in the
Safety Standards can construct the condition conforming to PL e
and Category 4 required by EN ISO 13849-1 European standard.
Refer to the following link to the reliability data for safety of
machinery:
https://www.ia.omron.com/support/sistemalibrary/index.html
Switch
However, this system configuration is based on the example circuit
provided by OMRON and may not apply to your system. The
performance level of the D40A-2 is determined by the entire safety
control system, so make sure that it applies to your system.
The D40A-2 device is not provided UL certification for any functional
safety rating or aspects.
Suitability for Use
Omron Companies shall not be responsible for conformity with any
standards, codes or regulations which apply to the combination of
the Product in the Buyer's application or use of the Product. At
Buyer's request, Omron will provide applicable third party
certification documents identifying ratings and limitations of use
which apply to the Product. This information by itself is not sufficient
for a complete determination of the suitability of the Product in
combination with the end product, machine, system, or other
application or use. Buyer shall be solely responsible for determining
appropriateness of the particular Product with respect to Buyer's
application, product or system.
Buyer shall take application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING
SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE
QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A
WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND
THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL
EQUIPMENT OR SYSTEM.
6
Dimensions
(Unit: mm)
Switch
 D40A-2C/D40A-2D
7.2 dia.
Indicator
(1.5) 38
48
Target mark
Actuator
 D40A-A2
7.2 dia.
Target mark
38
48
 Single switch connection
D40A-2C
(See note.)
auxiliary
output load
D1 D2 D3 D4 A2
G9SX-NS202
G9SX-NSA222
Pin number Description of operation
1
Power supply for D40A-2.
Connect to D3 terminal and D4 terminal on G9SX-NS.
3
Input designated signal from G9SX-NS.
2
To set safety door switch output in ON state, safety door switch input must be in ON state.
4 Output status depends on actuator status and safety door switch input state.
5
Output when sensor detect actuator.
—
Troubleshooting
Checking points and measures to take
Make sure the brown and blue power input wires of the
D40A-2 are properly connected to the D3 and D4 terminals
of the G9SX-NS ,respectively.
Replace with a new D40A-2
Make sure to use the correct actuator D40A-A2, and install the
product in the correct mounting direction.
Keep the D40A-2 actuator away from the magnetic force
generating object such as a magnet catch.
Replace with a new D40A-2
Make sure the white input signal wire of the D40A-2 is
correctly wired.
Make sure the black output signal wire of the D40A-2 is
correctly wired.
Replace the switch or controller.
Inspection & Maintenance
 Daily inspection
Check every guard door to see that machine stops when guard
door is opened.
 Periodic inspection
In addition to daily inspection, be sure to conduct inspections
every 6 months.
1. Isolate all power.
2. Check the switch and actuator for proper alignment.
3. Check terminals for proper connections.
4. Check wiring for signs of damage.
5. Before resuming normal machine operation, check every guard
door to see that machine stops when the guard door is opened.
Based on ISO 14119, if the system requires a hands-on functional
test, also consider the following inspection frequencies:
· SIL3/ PL e at least once a month
· SIL2/ PL d at least once a year
OMRON Corporation
(Manufacturer)
Shiokoji Horikawa, Shimogyo-ku, Kyoto, 600-8530 JAPAN
Regional Headquarters
OMRON EUROPE B.V. (Importer in EU)
Wegalaan 67-69, 2132 JD Hoofddorp
The Netherlands
Tel: (31)2356-81-300/Fax: (31)2356-81-388
OMRON ELECTRONICS LLC
2895 Greenspoint Parkway, Suite 200
Hoffman Estates, IL 60169 U.S.A.
Tel: (1) 847-843-7900/Fax: (1) 847-843-7787
OMRON ASIA PACIFIC PTE. LTD.
438B Alexandra Road, #08-01/02
Alexandra Technopark,
Singapore 119968
Tel: (65) 6835-3011/Fax: (65) 6835-3011
OMRON (CHINA) CO., LTD.
Room 2211, Bank of China Tower,
200 Yin Cheng Zhong Road,
PuDong New Area, Shanghai, 200120, China
Tel: (86) 21-6023-0333/Fax: (86) 21-5037-2388
Cable diameter : 5
Cross section
of conductor:
7.2 dia.
0.2mm 2 (AWG24)
(1.4)
13
Sensing surface
7.2 dia.
Sensing surface
Note. D40A-2D
The auxiliary output of D40A-2D
supports the input polarity of both
PNP and NPN.
24 VDC
PNP
Yellow COM
PLC,
Gray etc
IN
NPN
IN
Yellow
PLC,
etc
Gray COM
24 VDC
Contact: www.ia.omron.com
