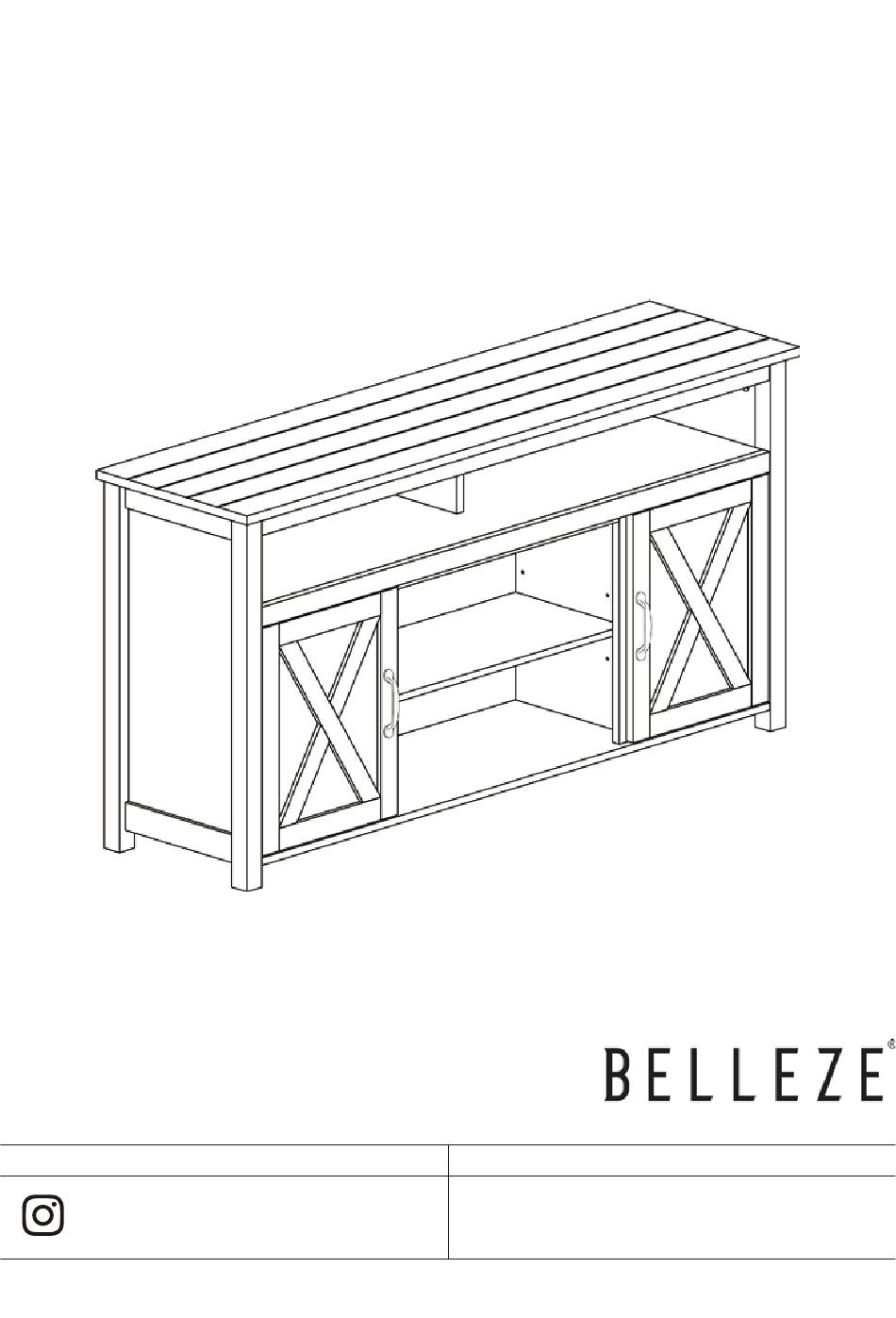

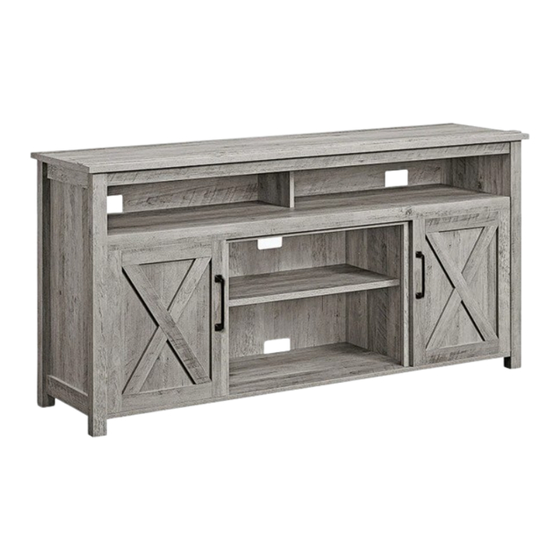

- Page 1 Corin TV Stand FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41007 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 30 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Middle Shelf Panel Bottom Panel Left Side Panel Right Side Panel Left Medial Panel Right Medial Panel Short Crossbar Support Leg Top Shelf Divider Top Crossbar Middle Crossbar Center Storage Shelf Panel Side Shorage Shelf Panel Side Back Panel Top Back Panel Cabinet Door...
- Page 6 PACKAGE CONTENTS 37x + 3x 37x + 3x 49x + 4x 7x + 1x 22x + 2x 22x + 2x 6x + 1x 37x + 3x 12x + 1x 24x + 2x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Attach cam bolts on the middle crossbar (14) and the legs (20,21,22,23). v.02082023...
- Page 8 Attach the middle crossbar (14) to the middle shelf panel (2). Attach cam bolts to the middle shelf panel (2).
- Page 9 v.02082023...
- Page 10 Attach the medial panels (6,7) to the middle shelf panel (2).
- Page 11 Secure the short crossbar (10) to the middle shelf panel (2). Option 1 (TV Stand) Option 2 (Fireplace Mantel) The replace needs to be purchased separately from us. v.02082023...
- Page 12 TV STAND ASSEMBLY (OPTION 1) Slide the center back panel (25) between the left and right medial panels (6, 7).
- Page 13 Attach the bottom panel (3) to the assembly. v.02082023...
- Page 14 Attach support legs (11) to the bottom panel and slide in the side back panels (17). Warning label should be facing outward. Attach cam bolts to the side panels (4,5).
- Page 15 Attach legs (20, 21, 22, 23) to the side panels (4, 5). Assemble the shelf assembly and the top crossbar (13) between the side panels. (4, 5). Direction arrow pointing upward. v.02082023...
- Page 16 Rotate the unit and have it stands on its legs, then attach top shelf divider (12) on the middle shelf panel.
- Page 17 Slide in the top back panel (18). Attach cam bolts to the top panel (1). v.02082023...
- Page 18 Assemble the top panel (1) on top of the TV stand.
- Page 19 Secure the top crossbar to the top panel. Secure the back panels to the TV stand. v.02082023...
- Page 20 Attach anti-tipping straps behind the TV stand.
- Page 21 Attach door hinges to the cabinet doors (19). Attach door handles to the cabinet doors. v.02082023...
- Page 22 Attach the cabinet doors to the TV stand. Adjust the position of the cabinet doors. Up and down In and out adjustment Side to side adjustment adjustment by by loosening the screws using the front loosening the screws on the hinge arm. adjustment screw on on the mounting plate.
- Page 23 Insert shelf pegs inside the TV stand and put in the side storage shelf (16). Insert shelf pegs inside the TV stand and put in the center storage shelf (15). v.02082023...
- Page 24 Attach the TV stand to the wall. device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. •...
- Page 25 Stick the top garnishing strip (24) on top of the TV stand. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling o . YOU’RE FINISHED! v.02082023...
- Page 26 FIREPLACE MANTEL ASSEMBLY (OPTION 2) Attach the bottom panel (3) to the assembly.
- Page 27 Attach support legs (11) to the bottom panel and slide in the side back panels (17). Warning label should be facing outward. Attach cam bolts to the side panels (4,5). v.02082023...
- Page 28 Attach legs (20, 21, 22, 23) to the side panels (4, 5). Assemble the shelf assembly and the top crossbar (13) between the side panels. (4, 5). Direction arrow pointing upward.
- Page 29 Rotate the unit and have it stands on its legs, then attach top shelf divider (12) on the middle shelf panel. v.02082023...
- Page 30 Slide in the top back panel (18). Attach cam bolts to the top panel (1).
- Page 31 v.02082023...
- Page 32 Secure the top crossbar to the top panel.
- Page 33 v.02082023...
- Page 34 Attach door hinges to the cabinet doors (19). Attach door handles to the cabinet doors.
- Page 35 Adjust the position of the cabinet doors. Up and down In and out adjustment Side to side adjustment adjustment by by loosening the screws using the front loosening the screws on the hinge arm. adjustment screw on on the mounting plate. the hinge.
- Page 36 Insert shelf pegs inside the shelf and put in the side storage shelf (16).
- Page 37 The screws for installation are in the packing case of the replace. CAUTION The heater has a glass front panel. Careful when handling glass to prevent injury or damage. For the exact instruction, please refer to the user’s manual provided with the NOTE: Do not attempt to install the unit from the front of tha mantel.
- Page 38 device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. • Fixed the anti-tipping strap to the wall with provided screws.
- Page 39 Stick the top garnishing strip (24) on top of the replace mantel. 0.2” / 5mm 2” / 50mm NOTE: Put the TV behind the wood trim to prevent it from falling o . YOU’RE FINISHED! v.02082023...
- Page 40 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 41 WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
-
Page 42: Maintenance
FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •... - Page 43 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.02082023...
-
Page 44: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
