Miller Edge AW12-RF Installation Instructions

Table of Contents

Download this manual

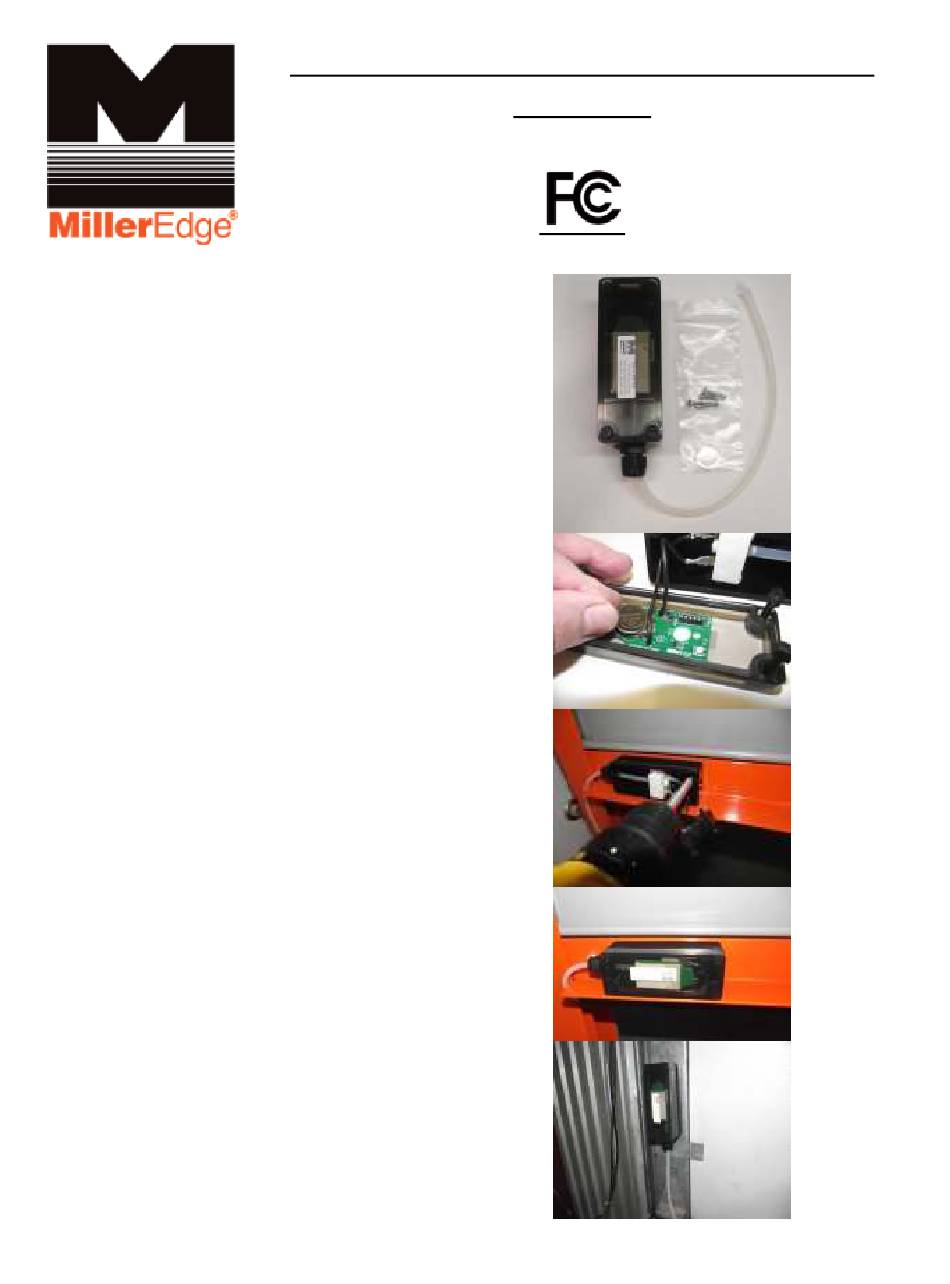

1- PARTS LIST

PART NUMBERS

-AW12-RF Single Channel

Transmitter/Air Wave™ Switch

Assembly

-MRF-01 Single Channel Receiver

-P/N=? Battery, CR2032

-(4) #6-20x3/4", Screw, Self-Drilling

2- INSTALL TRANSMITTER/AIR

WAVE™SWITCH ASSY

-Open box, unpack battery and remove

lid from the AW12-RF.

-Install CR2032 battery as shown with

the "+" side up. Notice that the Red LED

blinks once upon insertion.

-Now position & attach, with provided

screws, your AW12-RF to your bottom

angle or end stile of your door. Replace

lid.

-Now, dependent upon your "kit", make

the necessary airline connections.

AW12-RF/MRF-01 INSTALLATION INSTRUCTIONS

Preliminary

Table of Contents

Do you have a question about the AW12-RF and is the answer not in the manual?

Page 1 “+” side up. Notice that the Red LED blinks once upon insertion. -Now position & attach, with provided screws, your AW12-RF to your bottom angle or end stile of your door. Replace lid. -Now, dependent upon your “kit”, make...
Page 2 Keep in mind that the Green antenna wire must be exposed to the AW12-RF Transmitter/Air Wave™ Switch. It cannot be behind any type of metal. -Connect the Red (+) & Black (-) to your 24VAC/DC source.
Page 3 LED INDICATORS Function Description Color Green Power Always On Yellow Status Usually On – Off if right out of the box, no transmitter associated. Wink Off once per TX message received. Blinks rapidly during Learn Mode. Relay Off when Relay is (per State Clear.
Page 4 Specifications and Controls: Transmitter Unit Frequency: 915 MHz. FSK Modulation. Indicator Lights: Red LED: Tx Data Power Source: Batteries: CR2032 Coincell. 3.0VDC Lithium. Dimensions: Antenna: Integral PCB loop. Response Time: Nominal 70 msec; Safety Edge Input to Receiver Relay Contact Output. Specifications and Controls: Receiver Unit Indicator Lights: Green LED: Power on;...
