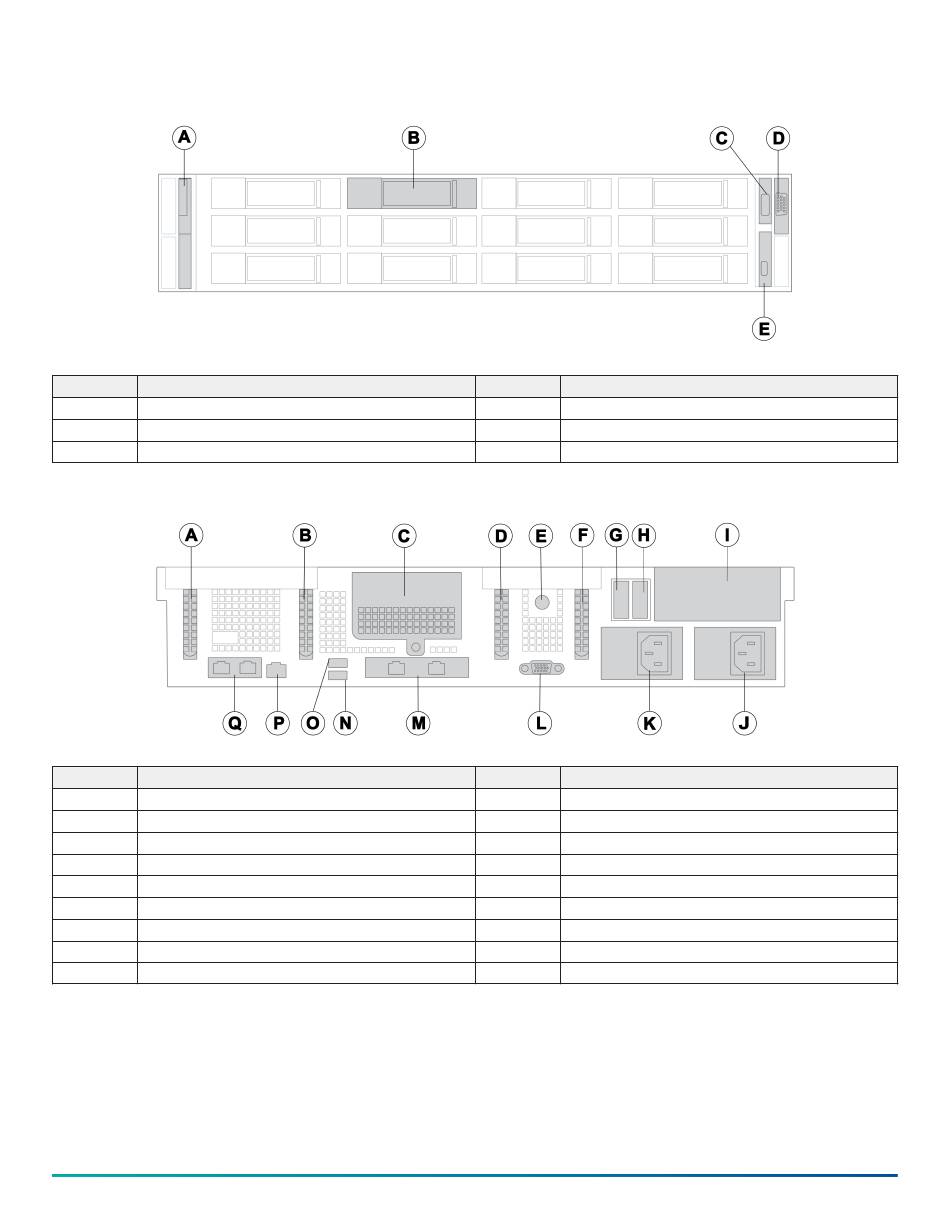

Figure 4: 2U front panel
Callout Description
A Left control panel
B Drive
C USB port
Figure 5: 2U back panel
Callout Description
A PCIe expansion card slot
B PCIe expansion card slot
C Expansion slot
D PCIe expansion card slot
E System ID
F PCIe expansion card slot
G BOSS riser slot
H BOSS riser slot
I Expansion slot
© 2024 Johnson Controls. All rights reserved. JOHNSON CONTROLS and Exacq are
trademarks and/or registered trademarks. Unauthorized use is strictly prohibited.
Callout Description
D Right control panel
E iDRAC direct micro port
Callout Description
J Power supply unit 2
K Power supply unit 1
L VGA port
M 2 x OCP 10 Gbps ports
N USB port
O USB port
P iDRAC Ethernet port
Q 2 x 1 Gbps ports
