Note: Do not change the user name and password until after you establish connectivity with the exacqVision server. For additional
information, see the camera manufacturer's website or the exacqVision IP Camera Quick Start Guide at
downloads/ev-ip-quickstart-0311.pdf. You can also find the Quick Start Guide in the Quickstarts directory on the CD that Exacq
dispatches with your system.
2. To test the connectivity between the camera and the server, complete the following steps:
a. Log on to the operating system as an administrator.
b. Type the camera's IP address into the address bar of your internet browser.
c. Press Enter. If the browser does not display an introductory or logon window, the camera is not connected to the server. Check the
exacqVision User Manual, and
3. Repeat this process for all other camera connections.
Connections

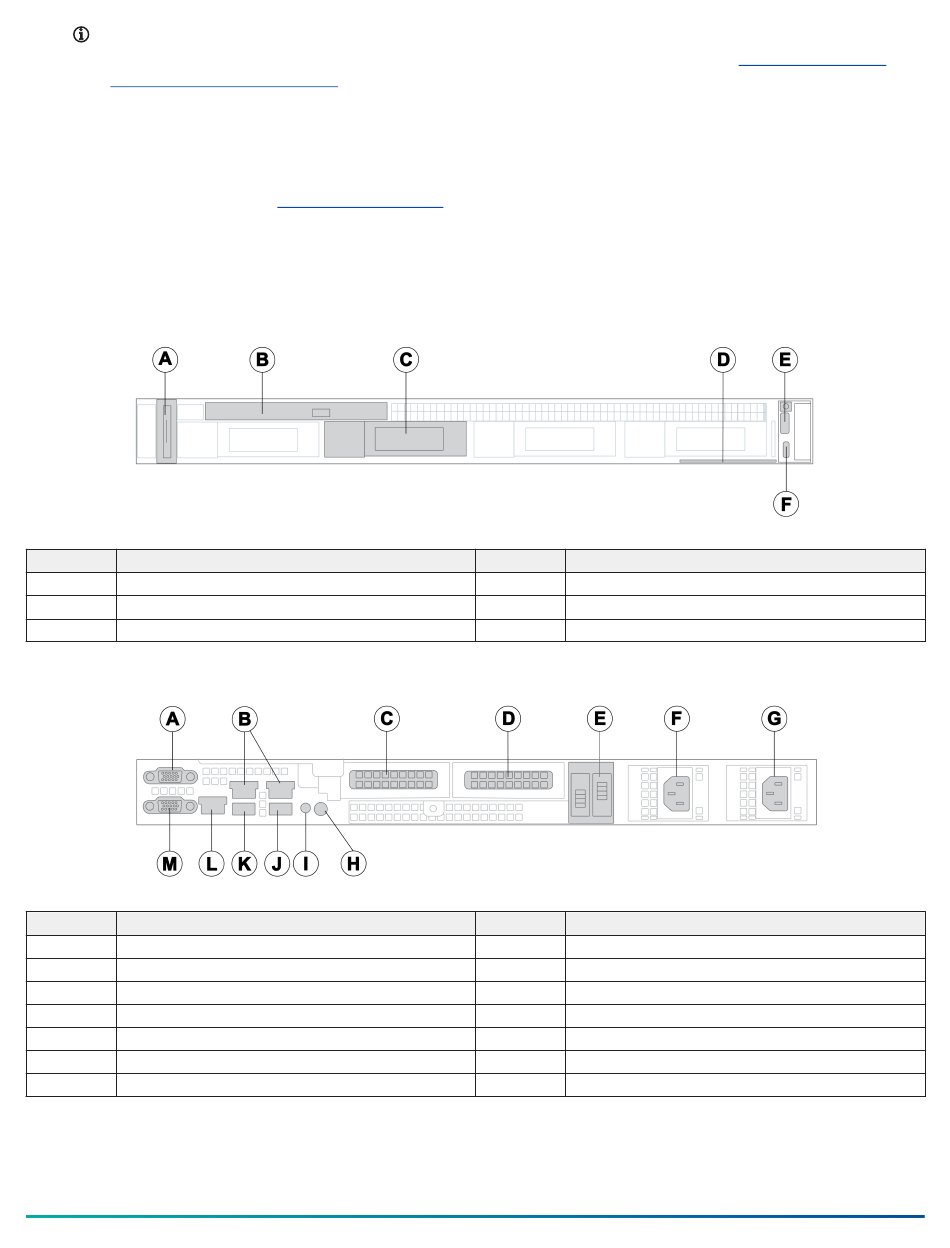

Figure 2: 1U front panel
Callout Description
A Left control panel
B ODD
C Drive
Figure 3: 1U back panel
Callout Description
A Serial connector
B Ethernet ports
C PCIe expansion card slot 1
D PCIe expansion card slot 2
E BOSS riser slots
F Power supply unit (PSU 1)
G Power supply unit (PSU 2)
X-Series NVR Quick Start Guide
https://support.exacq.com for a solution if the problem persists.
Callout Description
D Information tag
E Right control panel
F iDRAC direct micro port
Callout Description
H System ID button
I CMA jack
J USB 3.2 Gen 1 port
K USB 2.0 port
L iDRAC Ethernet port
M VGA port
