Chapter 3. nShield PCIe HSMs

3.2.2. Swap the module bracket

If the fitted module bracket is not the same height as the slot, swap it for the
correct size. Both full height and low profile brackets are supplied with the
module.
Do not touch the connector pins, or the exposed area of the module without
taking electrostatic discharge (ESD) precautions.
To fit the bracket to the module:
1. Remove the two screws from the solder side of the module.
2. Remove the incorrect bracket.
3. Fit the correct bracket to the component side of the module.
4. Insert the two screws into the solder side of the module to secure the bracket.
Do not over tighten the screws.

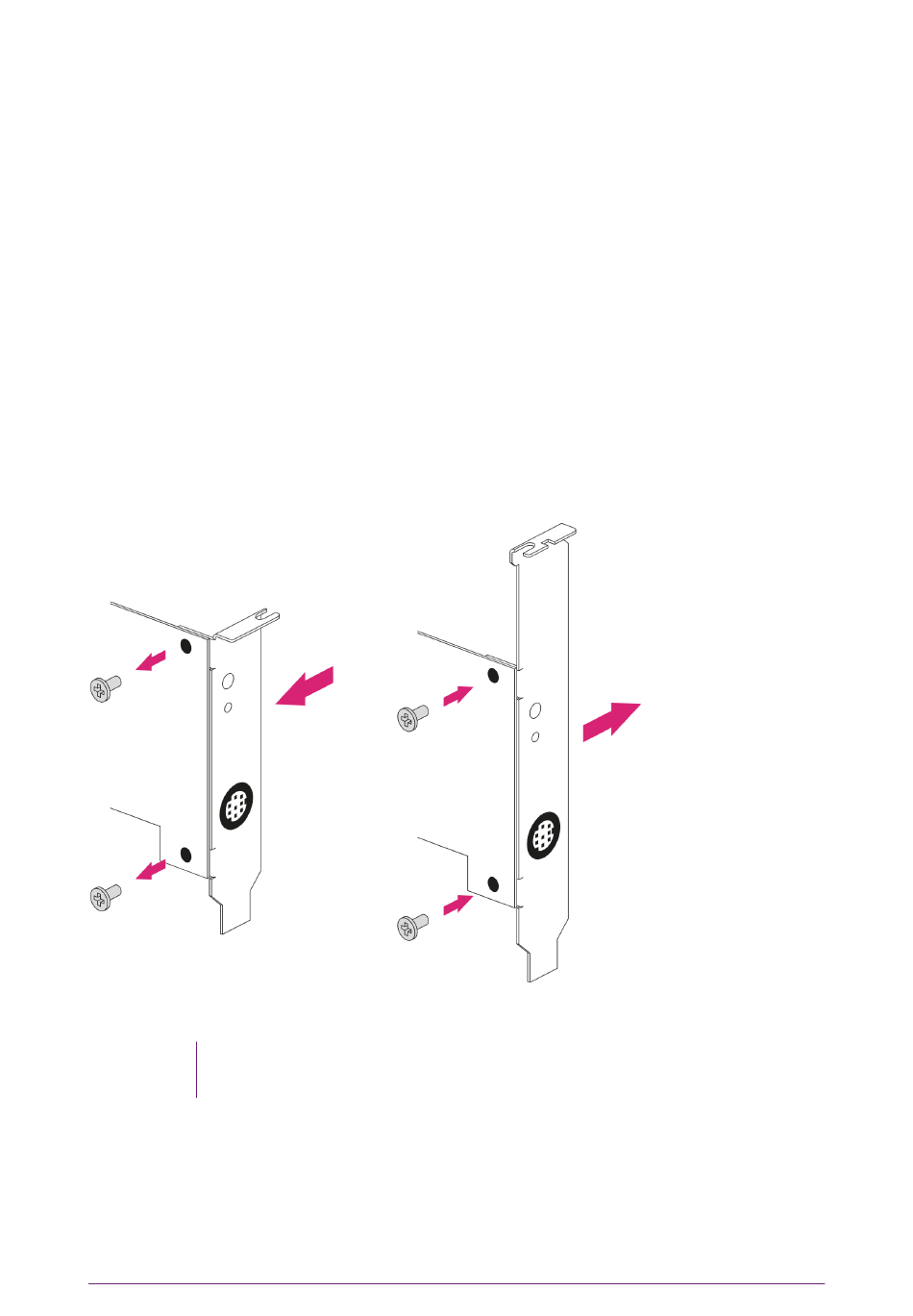

Figure 1. Screw placement on an nShield 5s.
Screw placement is the same on a Solo module bracket, however

the Solo and Solo XC brackets also have a physical mode switch.

3.2.3. Install the module
