Chapter 2. nShield Network-Attached HSMs

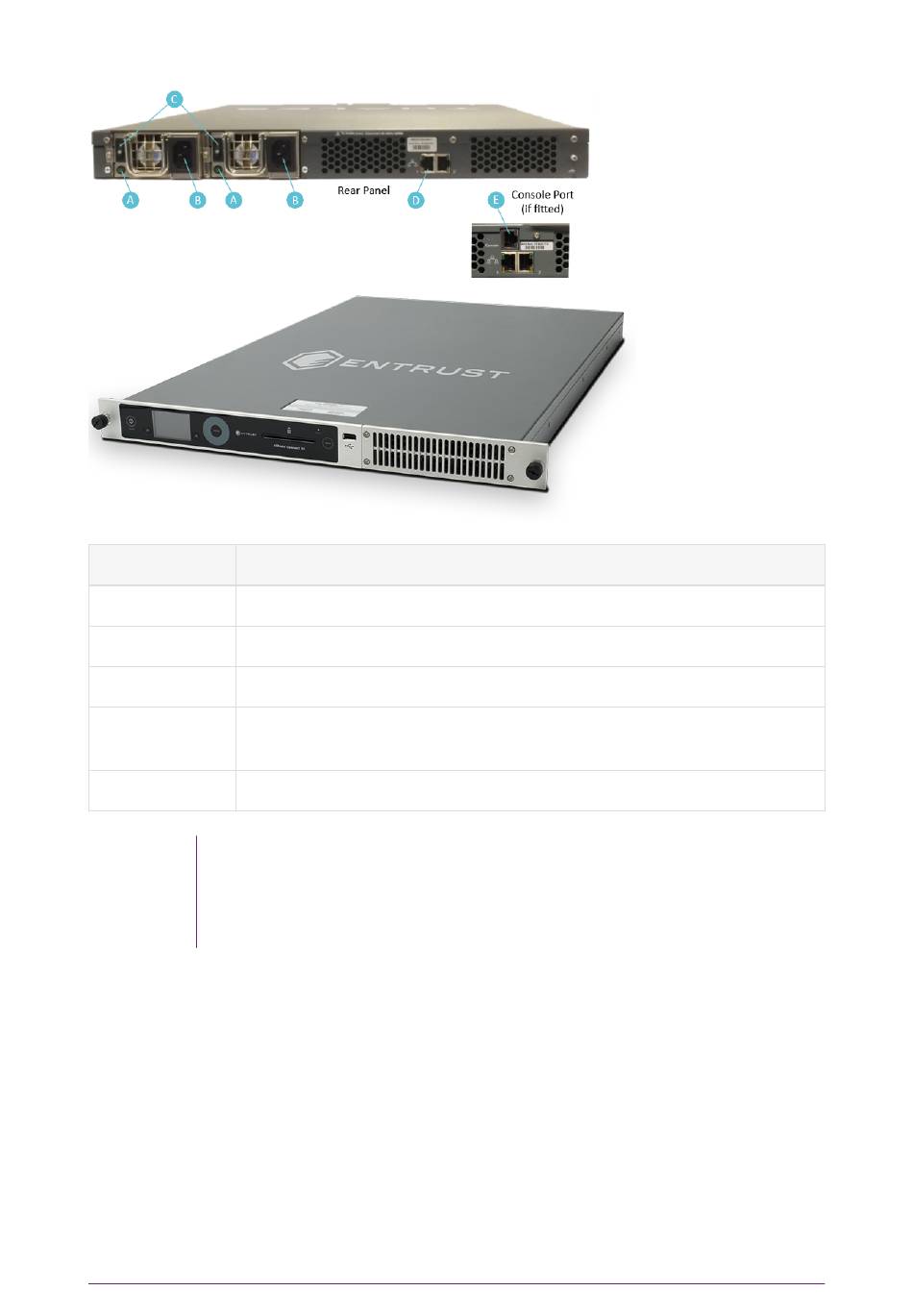

Key Description
A Green LED if on, confirms power is on and unit is not in Standby mode
B Mains power connection
C Rocker switch to turn PSU on and off
D Ethernet port. Two Ethernet ports are available. Port 1 is the left-hand
connector when the HSM is viewed from the back
E RJ45 port for a serial console cable
If you connect only one Ethernet cable to the HSM, Entrust
recommends that you connect it to Ethernet port 1. This is the

left-hand Ethernet connector on the rear of the HSM (shaded in
the image).
If the green LED is on, the PSU is operational and receiving power, and is not in
Standby mode. If a power cable is not fitted correctly, or a rocker switch is not
turned on, an audible warning is given and the orange warning LED on the front
panel is turned on.
For more information:
• Audible warnings, see
• The orange warning LED, see
nShield v13.6.3 Hardware Install and Setup Guides
Audible warning.
Orange warning LED.
