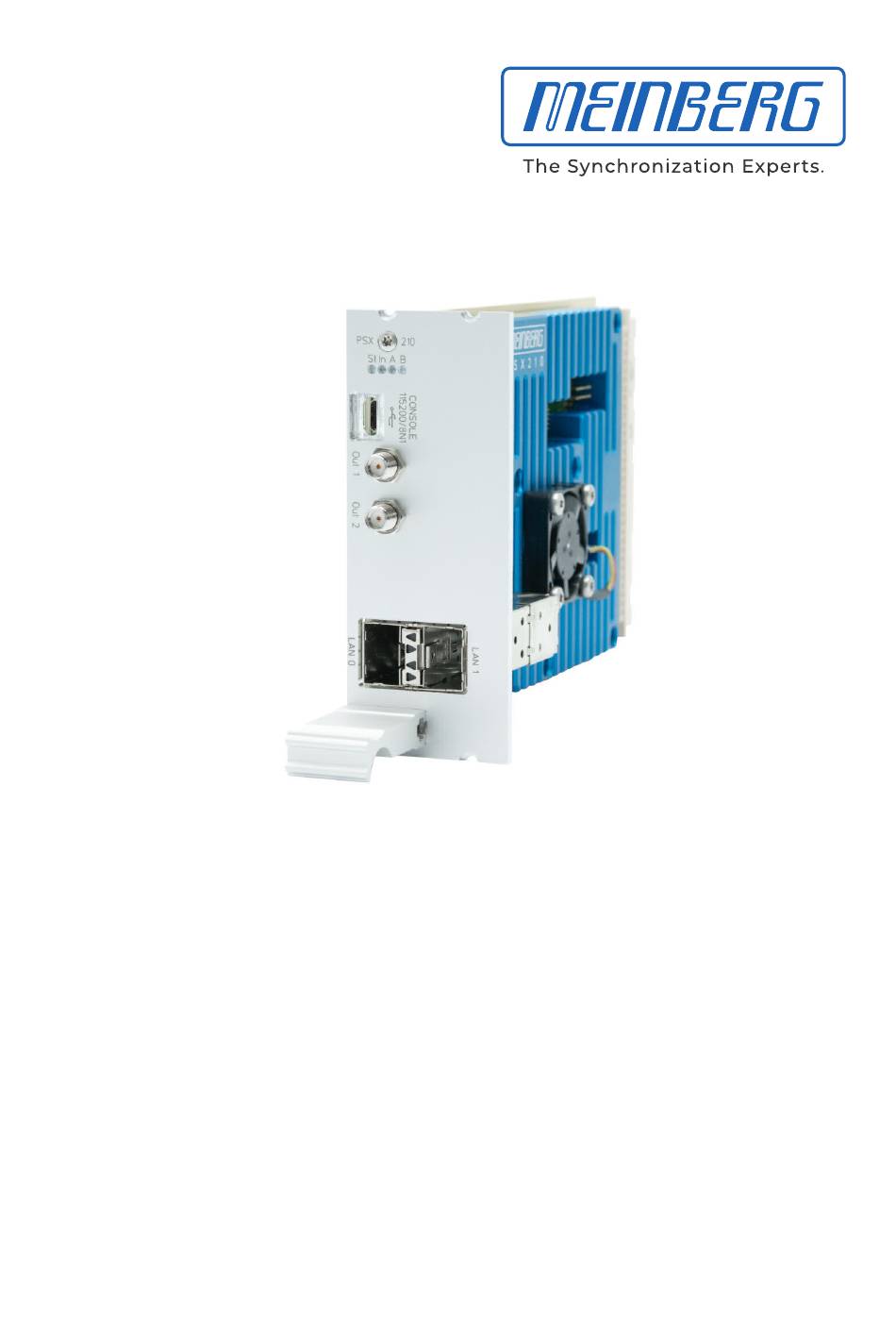

- Page 1 SETUP GUIDE IMS-PSX210 Hot-Plug Module July 8, 2024 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
Note Regarding PTP Terminology ........8 IMS-PSX210 Module Connectors and Indicators Status LEDs . - Page 4 Table of Contents 13.1 Supported PTPv2 Profiles ......... 14 Your Opinion Matters to Us 15 RoHS Conformity 16 List of Abbreviations...
-
Page 5: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 – 93 09 - 0 Fax: + 49 (0) 52 81 – 93 09 - 230 Website: https://www.meinbergglobal.com... -
Page 6: Copyright And Liability Exclusion
Meinberg reserves the right to make changes of any type to this document at any time as is necessary for the purpose of improving its products and services and ensuring compliance with applicable standards, laws &... -
Page 7: Change Log
3 Change Log 3 Change Log Version Date Revision Notes 11/8/2023 Initial version 6/24/2024 German translation NTP hardware responder support Added copyright notice Added information on presentation conventions Various other corrections Date: July 8, 2024... -
Page 8: Presentation Conventions In This Manual
4 Presentation Conventions in this Manual 4.1 Conventions for the Presentation of Critical Safety Warnings Warnings are indicated with the following warning boxes, using the following signal words, colors, and symbols: Caution! This signal word indicates a hazard with a low risk level. Such a notice refers to a procedure or other action that may result in minor injury if not observed or if improperly performed. -
Page 9: Secondary Symbols Used In Safety Warnings
4 Presentation Conventions in this Manual 4.2 Secondary Symbols Used in Safety Warnings Some warning boxes may feature a secondary symbol that emphasizes the defining nature of a hazard or risk. The presence of an "electrical hazard" symbol is indicative of a risk of electric shock or lightning strike. -
Page 10: Generally Applicable Symbols
4.4 Generally Applicable Symbols The following symbols and pictograms are also used in a broader context in this manual and on the product. The presence of the "ESD" symbol is indicative of a risk of product damage caused by electrostatic discharge. Direct Current (DC) (symbol definition IEC 60417-5031) Alternating Current (AC) (symbol definition IEC 60417-5032) Grounding Terminal (symbol definition IEC 60417-5017) -
Page 11: Important Safety Information
Depending on your specific device configuration and installed options, some safety information may not be applicable to your device. Meinberg accepts no responsibility for injury or death arising from a failure to observe the safety information, warnings, and safety-critical instructions provided in the product documentation. -
Page 12: Product Documentation
If any of the safety information in the product documentation is unclear for you, do not continue with the set-up or operation of the device! Safety standards and regulations change on a regular basis and Meinberg updates the corresponding safety information and warnings to reflect these changes. It is therefore recommended to regularly visit the Meinberg website at https://www.meinbergglobal.com or the Meinberg Customer Portal at... -
Page 13: Safety During Installation
5.4 Safety when Handling SFP Modules The fiber-optic SFP modules recommended by Meinberg are equipped with a Class 1 laser. • Only use fiber-optic SFP modules that are compliant with the definition of a Class 1 laser in accordance with IEC standard 60825-1. -
Page 14: Important Product Information
6.4 Maintenance and Modifications Important! Before performing any maintenance work on or authorized modification to your Meinberg system, we recommend making a backup of any stored configuration data (e.g., to a USB flash drive from the Web Interface). Date: July 8, 2024... -
Page 15: Prevention Of Esd Damage
Systems and modules with ESDS compo- nents usually bear this symbol. Important! Due to its complexity, the IMS-PSX210 is especially sensitive to electrostatic discharges and requires special care when handling. Please consider wearing special industrial-grade ESD-proof clothing and shoes when handling the product. -
Page 16: Disposal
It can be returned to Meinberg for disposal. Any transportation expenses for returning this product (at end-of- life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. If you wish for Meinberg to handle disposal for you, please get in touch with us. Otherwise, please use the return and collection systems provided within your country to ensure that your device is disposed of in a compliant fashion to protect the environment and conserve valuable resources. -
Page 17: Introduction
M4000 Compatible Please note when installing in a LANTIME M1000 or LANTIME M1000S system, the IMS-PSX210 can only be installed in the (lower) MRI slot due to the physical dimensions of the module. The module can be installed in any IO, MRI, or ESI slot of your IMS system with a free slot to the right of it... - Page 18 This version of the manual has been prepared based on the feature set provided by Kernel Version v4.9.307 of your IMS-PSX210 as well as LANTIME OS Version 7.08. When using a LANTIME system or IMS module with different versions, there may be noticeable differences, for example in the presentation and availability of options in the Web Interface as shown in Chapter 11 ("Configuration and Setup via Web Interface").
-
Page 19: Note Regarding Ptp Terminology
7 Introduction 7.1 Note Regarding PTP Terminology The user interfaces of this product, and by extension this product documentation, utilize the original IEEE 1588-2002 terminology "Master/Slave" to refer to the hierarchy employed by PTP networks. Various other alternative designations have been suggested and adopted by various devices in the time between the adoption of the original standard and the time of writing of this manual. -
Page 20: Ims-Psx210 Module Connectors And Indicators
8 IMS-PSX210 Module Connectors and Indicators Information: The numbering in the drawing above relates to the relevant subsection in this chapter. Date: July 8, 2024... -
Page 21: Status Leds
IMS LANTIME system has been established, and the oscillator is locked to the phase reference. Off A fault has been detected in the internal timestamper unit of the IMS-PSX210 and the PTP service has been suspended. Yellow The IMS-PSX210 cannot detect a network link, but the module is otherwise initialized and functional. -
Page 22: Usb Type Micro-B Terminal Connector
RS-232 cable. This interface provides no essential functionality and is provided solely for maintenance & repair purposes. It should only be used under the guidance of Meinberg Technical Support. 8.3 SMA Signal Outputs These SMA connectors are reserved for future use. -
Page 23: Network Interface (Sfp+)
Web Interface is not possible via the network ports on the IMS-PSX210. Information: When selecting a transceiver to use with your IMS-PSX210 module, please be aware that the SFP+ ports only support SFP+ modules with 10 Gigabit Ethernet support. The IMS-PSX210 module does not support standard SFP modules with lower transmission rates. -
Page 24: Before You Start
9.1 Contents of Delivery Unpack the IMS-PSX210 and all accessories carefully and check the contents of the delivery against the en- closed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our Sales Department at sales@meinberg.de. -
Page 25: System Installation
10 System Installation 10 System Installation 10.1 Important Information Regarding Hot-Pluggable IMS Modules The following information should be strictly observed when replacing IMS modules during operation. Not all IMS modules are fully hot-pluggable. For example, it is naturally not possible to replace a power supply unit in a system without PSU redundancy without first having installed a second power supply unit while the system is in operation. -
Page 26: Installation And Removal Of Hot-Pluggable Ims Modules
10.2 Installation and Removal of Hot-Pluggable IMS Modules A Torx screwdriver is required (T8 x 60) to remove and install IMS modules. Important! Heed the safety information in Chapter 5 of this manual! Removing a Module Remove the two marked Torx screws from the module faceplate. - Page 27 10 System Installation Installing a Module To replace a module, remove the installed module in accordance with the guide "Removing a Module” on the previous page. Otherwise, remove the two Torx screws from the cover plate of the unused slot. We recommend keeping the cover plate in a safe place for later use. Insert the module correctly into the two guide rails of the system chassis.
-
Page 28: Data And Signal Cables
10.3 Data and Signal Cables Clock Communication Communication between the IMS-PSX210 module and other clocks in the PTP infrastructure is achieved via the two SFP ports on the module. These require the use of a SFP+ transceiver module with 10 Gigabit Ethernet support to match the corresponding signal transport requirements. -
Page 29: Configuration And Setup Via Web Interface
The IMS-PSX210 is configured by selecting the menu "PTP" "PTP V2 Configuration" in the Web Inter- face. The configuration options addressed in this chapter represent a IMS-PSX210 with Kernel Version v4.9.307 running under LANTIME OS Version 7.08. Date: July 8, 2024... -
Page 30: Network
11.1 Network The Network tab is used to perform the IP network configuration for your IMS-PSX210 module. This con- figuration is not necessary if you intend to only use Layer 2 Ethernet (IEEE 802.3) as the communication protocol for both ports. - Page 31 (i.e., addresses outside of the local scope). Port-Specific Configuration These settings affect only individual Ethernet ports on your IMS-PSX210 module. Ensure that the correct tab for the port in question is selected before modifying the settings. Hostname: The hostname of the IMS-PSX210 module for clocks communicating via UDP/IPv4 or UDP/IPv6.
- Page 32 IPv6 Address: If IPv6 address allocation is handled manually in the clock subnet, the address for the IMS-PSX210 module should be entered here. This field will be disabled if DHCP is enabled. IPv6 Multicast Scope: Specifies the address scope for IPv6 multicasts.
-
Page 33: Global
figured by selecting the relevant tab. Operating Mode: Specifies the operating mode of this IMS-PSX210 module. At time of writing only PTPv2 and NTP are supported; PTPv1 and Monitor mode are grayed out and will be enabled in a later firmware version. - Page 34 Information: This list assumes the use of the Custom profile. Please note that some options will be unavailable with certain industry profiles due to the constraints imposed by those profile’s standards. PTP Mode: Specifies the transmission mode for the PTP traffic. The possible options are: "Multicast Slave"...
- Page 35 11 Configuration and Setup via Web Interface Delay Mechanism: Specifies the mechanism by which the delay measurement process is performed: P2P (peer-to-peer) The Delay Request/Delay Response exchange is performed with the most directly connected nodes (e.g., a transparent clock). This mechanism is recommended if it can be guaranteed that every clock—from grandmaster to slave—is PTP-aware (i.e., operates as a PTP clock in its own right).
- Page 36 Priority 2: The value Priority 2 can be a value from 0–255 and is part of the dataset included in Announce messages for use by slave clocks to prioritize certain master clocks over others. This field can be used to manually specify this value. Unlike Priority 1, Priority 2 takes into account clock quality first and will only act as a tiebreaker if two master clocks are of equal quality.
-
Page 37: Misc
11 Configuration and Setup via Web Interface 11.3 Misc The Misc. tab provides other general PTP options. Activate PTP One-Step: Where two-step mode employs a Sync and Follow-Up message to account for processing latency in message generation, one-step operation uses the accurate timestamp generated in the Sync message and omits the Follow-Up message. -
Page 38: Troubleshooting
Our Technical Support team will be pleased to help you with any problems that you may be having with your Meinberg IMS-PSX210. However, before you contact our Technical Support team, it is advisable to read this chapter through first to see if your problem might be more quickly resolved with one of the solutions below. -
Page 39: Technical Appendix
13 Technical Appendix 13 Technical Appendix 13.1 Supported PTPv2 Profiles This is a list of the PTPv2 profiles supported by your product and the corresponding settings. Default 0–255 2–10 2000 1000 ms 1000– except 128000 IEEE1588- Mixed 2008 Master Default Multicast 0–255 2–10... - Page 40 Telecom Unicast 44–63 125– 7.8125– 7.8125– ITU-T (44) 1000 1000 ms 1000 ms G.8275.2 (7.8125 (7.8125 (125 DOCSIS Multicast 24–43 3–10 62.5 ms 62.5 ms (24) SMPTE 0–127 2–10 125– 7.8125– 7.8125– ST 2059- (127) 2000 500 ms (125 (250 AES67 Multicast UDP/...
- Page 41 14 Your Opinion Matters to Us 14 Your Opinion Matters to Us This user manual is intended to assist you in the preparation, use, and care of your Meinberg product, and provides important information for configuration and status monitoring. Be a part of the ongoing improvement of the information contained in this manual. Please contact our Technical Support team if you have any suggestions for improvements or technical questions that are relevant to the manual.
- Page 42 15 RoHS Conformity Conformity with EU Directive 2011/65/EU (RoHS) We hereby declare that this product is compliant with the European Union Directive 2011/65/EU and its delegated directive 2015/863/EU "Restrictions of Haz- ardous Substances in Electrical and Electronic Equip- ment" and that no impermissible substances are present in our products pursuant to these Directives.
- Page 43 16 List of Abbreviations 16 List of Abbreviations Clock Central Processing Unit Electromagnetic Compatibility Electrostatic Discharge ESDS Electrostatic Discharge Sensitivity/Sensitive External Synchronization Input Ground Horizontal Pitch Intelligent Modular Synchronization Input/Output LTOS LANTIME Operating System Multi-Reference Input Power Redundant Switch Control Real-Time Clock Transmission Control Protocol User Datagram Protocol...
