SIM77P: DCF77 Simulator

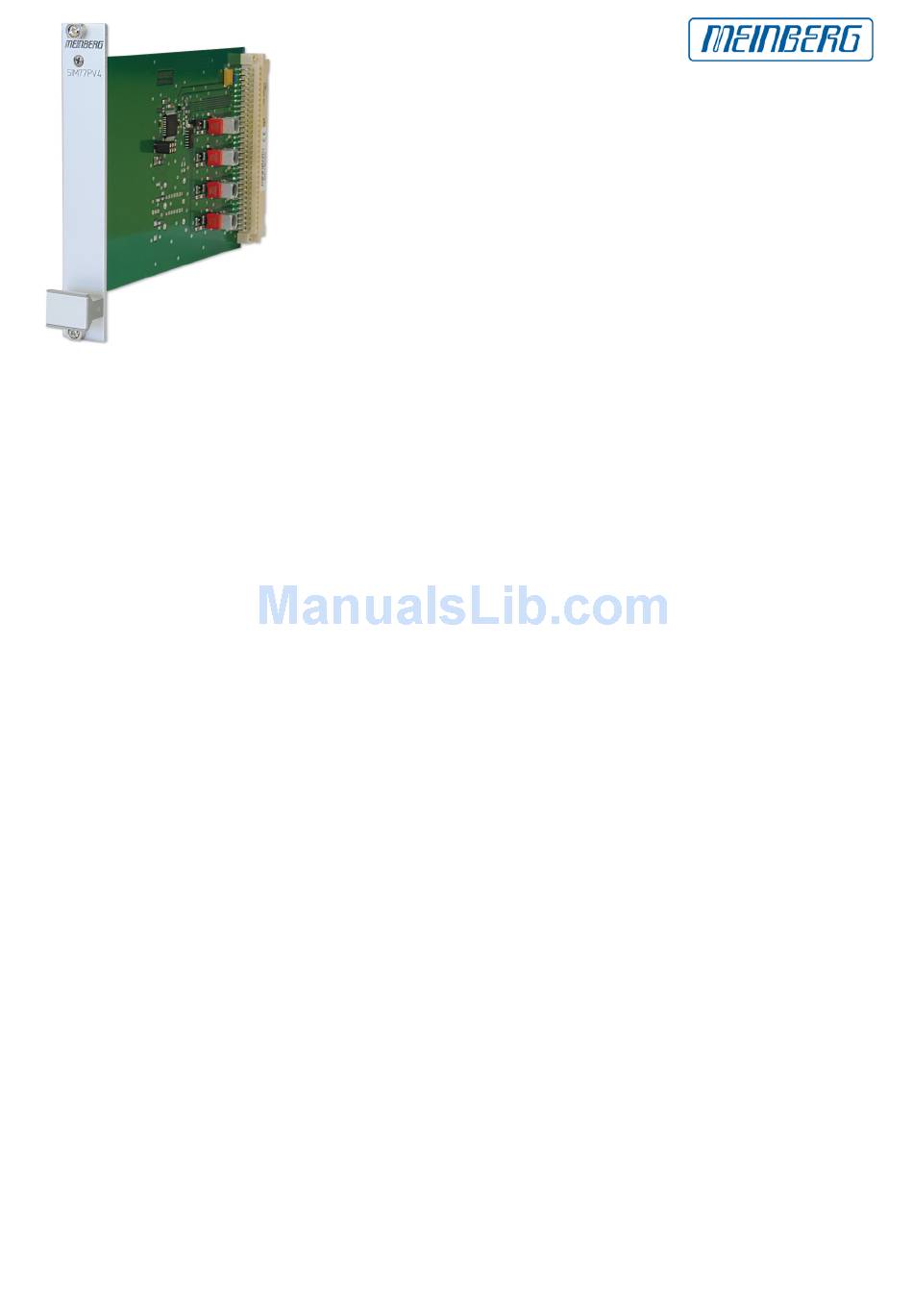

DCF77 Simulator SIM77P
Key Features
- Large Number of AM Receivers connectable
- Generates Amplitude modulated DCF77 Signal
- 4 DC-Insulated Antenna Outputs
Description
The simulator SIM77P uses TTL level time marks supplied by either the MEINBERG GPS atellite receiver or the DCF77
correlation receiver (with special adaption) to modulate the amplitude of a 77.5 kHz carrier generated on-board.
The resulting DC-insulated output signal distributed fourfold and available at the rear VG edge connector is compatible
with the LF signal spread by DCF77, the output circuit is designed to feed the antenna input circuit of a standard
Meinberg DCF77 AM radio clock or an antenna distributor AV4 or AV5 which can in turn be used to feed several radio
clocks.
It is not allowed to use the SIM77P as an LF transmitter, so it is not possible to supply the simulated signal to a radio
clock via its antenna.
