Diagrams

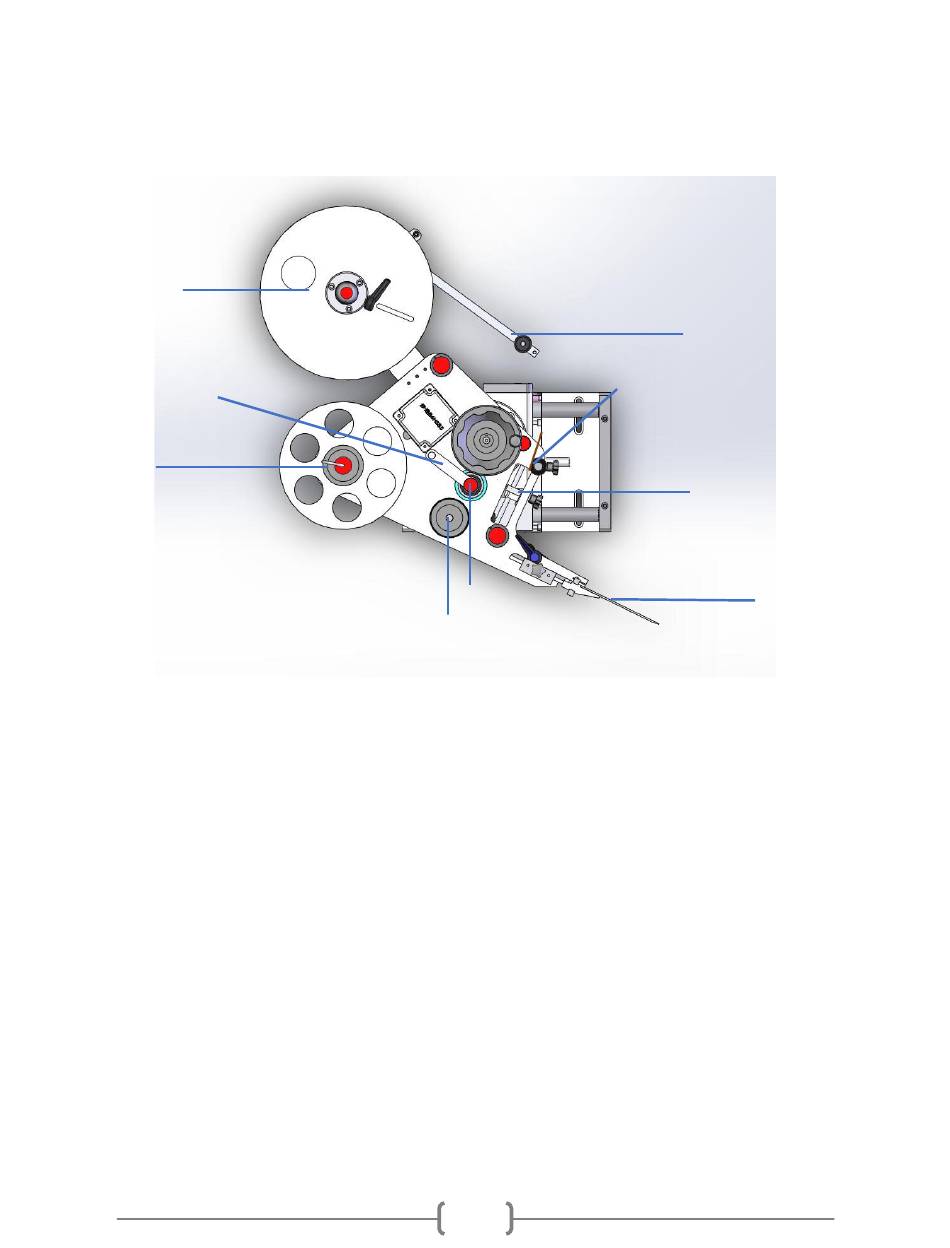

The Applicator Assembly

1
6
9
1. Label tray: Utilized to Install the label roll (ensure the label tray is securely fastened when affixing
labels)
2. Tension lever/arm: Employed for halting the label, preventing its loosening, and sustaining label tension
(tension testing: Following label spinning, manually initiate the traction motor to move the label. As the
swing rod descends, the label disc will autonomously rotate, indicating proper tension).
3. Pressure plate: Ensures the labels are pressed against the roller leading into the sensor tunnel.
4. Gap label sensor: Sends the trigger to the PLC, telling the friction puller to stop pulling the labels.
5. Separator plate: Separates the label from its backing.
6. Cam handle: Engage or dis-engage the belt-driven friction cam
7. Driven friction roller: pulls the label in conjunction with the secondary friction roller.
8. Secondary friction roller
9. Label winder: Winds the label backing.
3
7
8
5
2
4
5
