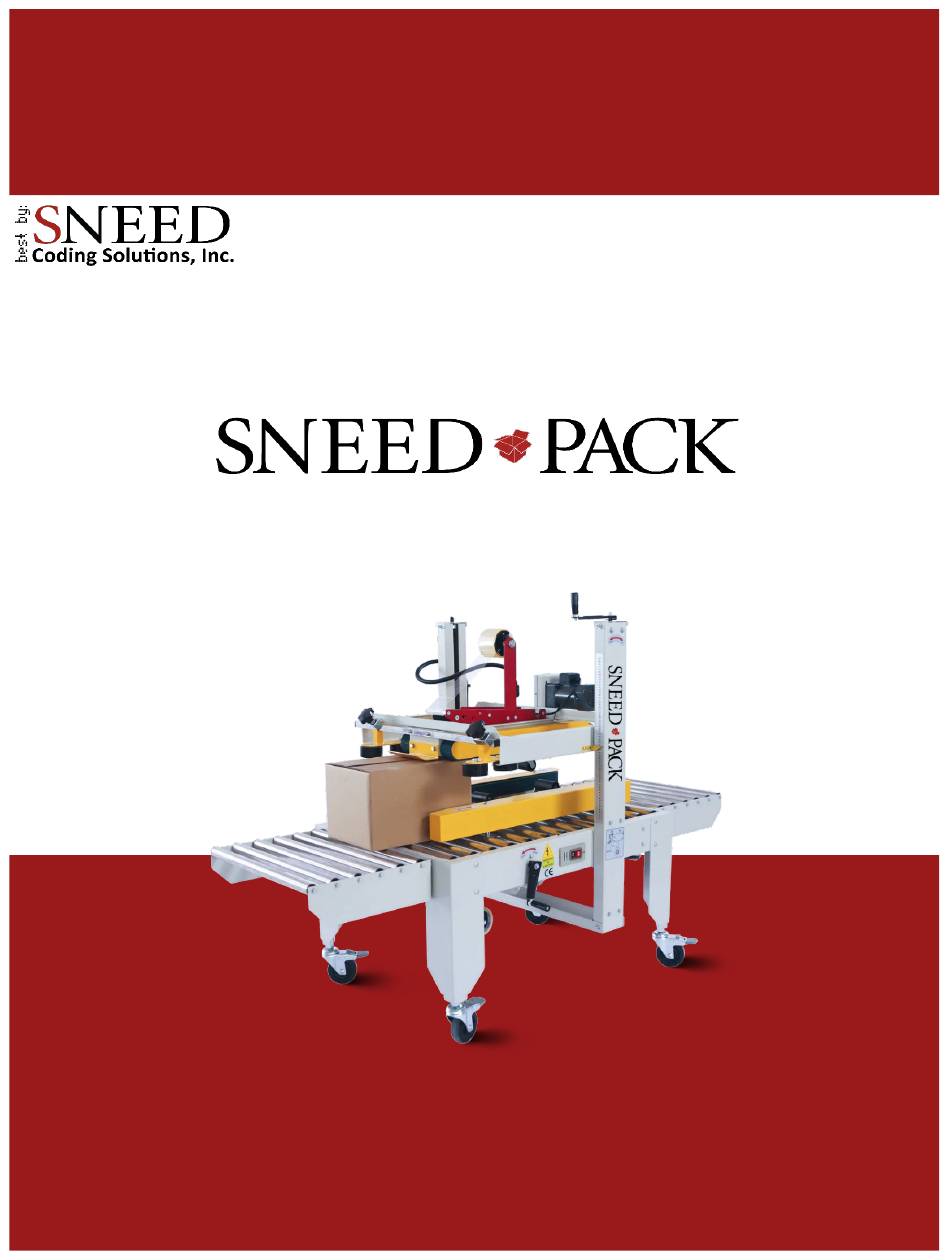

- Page 1 CS-5OTS USER GUIDE SNEED CODING SOLUTIONS | WWW.SNEEDCODING.COM...
- Page 2 To Schedule a Call: https://info.sneedcoding.com/meetings/richardturner/printer-introduction Sneed Coding Help Desk: https://help.sneedcoding.com/ www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
- Page 3 Thank you for your purchase of the SNEED-PACK CS-50TS top and side belt driven carton sealer. In this manual you will find the basic operating and maintenance procedures to ensure your success with the CS-50TS. Please read the manual carefully before operating the equipment.
-
Page 4: Table Of Contents
Contents Specifications ..............................4 Component Diagram ............................. 5 Setting up the Case Sealer ..........................6 Adjusting the Deck Height ........................6 Installing the Roller Tables ........................7 Adjusting for your Carton Dimensions...................... 8 Installing the Tape ............................. 9 Adjusting the Tape Position ........................10 Setting the Tape Tension ........................ -
Page 5: Specifications
Specifications Speed: 18 m/min Tape width: 1- 3 inch Carton / case size: 15cm x 15cm ~ 50cm x 50cm Machine Size: Width: 90cm Length: 102cm Height: 135cm Deck Height: 55cm ~ 72cm Power supply: 220-240V/50-60Hz Weight: 310 lbs www.sneedcoding.com (833)926-3464... -
Page 6: Component Diagram
Component Diagram Box Height Adjustment Tape Head Tape Applicators / Conveyance Belts Rollers Case Stabilizers Removable Roller Tables Box Width Adjustment Side conveyance belts Bottom tape head www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 7: Setting Up The Case Sealer
Setting up the Case Sealer Adjusting the Deck Height Lock Nut Castor Height Adjustment inserts Wheel Brake Adjustment bolts Figure 1 1. Begin by lifting the case sealer to the desired height with a pallet fork, dolly, or jack and secure it safely in place. -
Page 8: Installing The Roller Tables
Installing the Roller Tables 1. The fasteners (nuts) to attach the roller tables are already tightened onto their corresponding bolt and will need to be removed first. *Only remove the first of two fasteners (nuts) 2. Once the fasteners are removed place the roller tables onto the bolts and tighten them in place. -
Page 9: Adjusting For Your Carton Dimensions
Adjusting for your Carton Dimensions. Carton height adjustment Carton width adjustment Figure 3 1. To set the case sealer to fit the dimensions of your carton/case use the adjustments shown in Figure 3. 2. The adjustment handles will be installed backwards for shipping, remove them using the included 10mm wrench and reinstall. -
Page 10: Installing The Tape
Installing the Tape 1. Begin by attaching the tape arms to each tape head using the included screws. (top and bottom) 2. Next Install the tape onto the tape wheel so that when you pull the tape down the adhesive side is facing outward. -
Page 11: Adjusting The Tape Position
Adjusting the Tape Position If you find that your tape is not lining up with the center of the box seems you can use the M18 nut shown in figure 6 to reposition the tape. 1. Remove the tape roll. 2. -
Page 12: Common Issues
Common Issues Issue Cause Solution Tape does not cut The tape head blade is dull or 1.Remove the tape jam. jammed 2.Wipe clean any accumulated adhesive from the tape head with 90% isopropyl alcohol. 3.Sharpen or replace the tape blade. The tape has been cut but only The Tape head is likely jammed 1.Remove the Jam... -
Page 13: Circuit Diagram
Circuit Diagram www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 14: Exploded Parts Diagrams
Exploded Parts Diagrams Main Body & Lift Mechanism www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 15: Parts List
Parts List MEMO DRAW DESCRIPTION Castors adjust undercarriage Solid Spruce undercarriage bracket bracket axle beam barrel bushing axle beam barrel beam barrel axle www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 16 frame catch plate chain chain wheel cover plate upright column axle bushing bracket bracket catch plate bracket handle lock block adjuster lever www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
- Page 17 side pressure wheel guide plate cover adjuster lever www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
-
Page 18: Drive / Conveyance System
Drive / Conveyance System www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 19: Parts List
Parts List DRAW DESCRIPTION MEMO handle handle setting shaft handle setting unit bearing assembly chain wheel screw rod Sliding base bracket adjusting slider bracket pin roll pin roll supporting roller driven wheel www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 20 support bar Belt conveyor cover plate drive wheel driving axle driven axle driving axle chain chain wheel Motor www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
-
Page 21: Tape Head
Tape Head Parts List Description Left panel Hexagon shaft Connection link Front swing Knurling guide roller axle Stationary axle sleeve Adhesive tape supporting arm Unidirectional guide roller axle www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 22 PE roller axle Front guide board Adhesive tape holder stationary axle Front support axle Knurling guide roller Adhesive tape roller PE roller Unidirectional knurling roller Cutter holder wedding board Main spring lock shaft Cutter holder stationary axle Cutter holder stationary axle sleeve Baffle roller Main spring Right panel...
