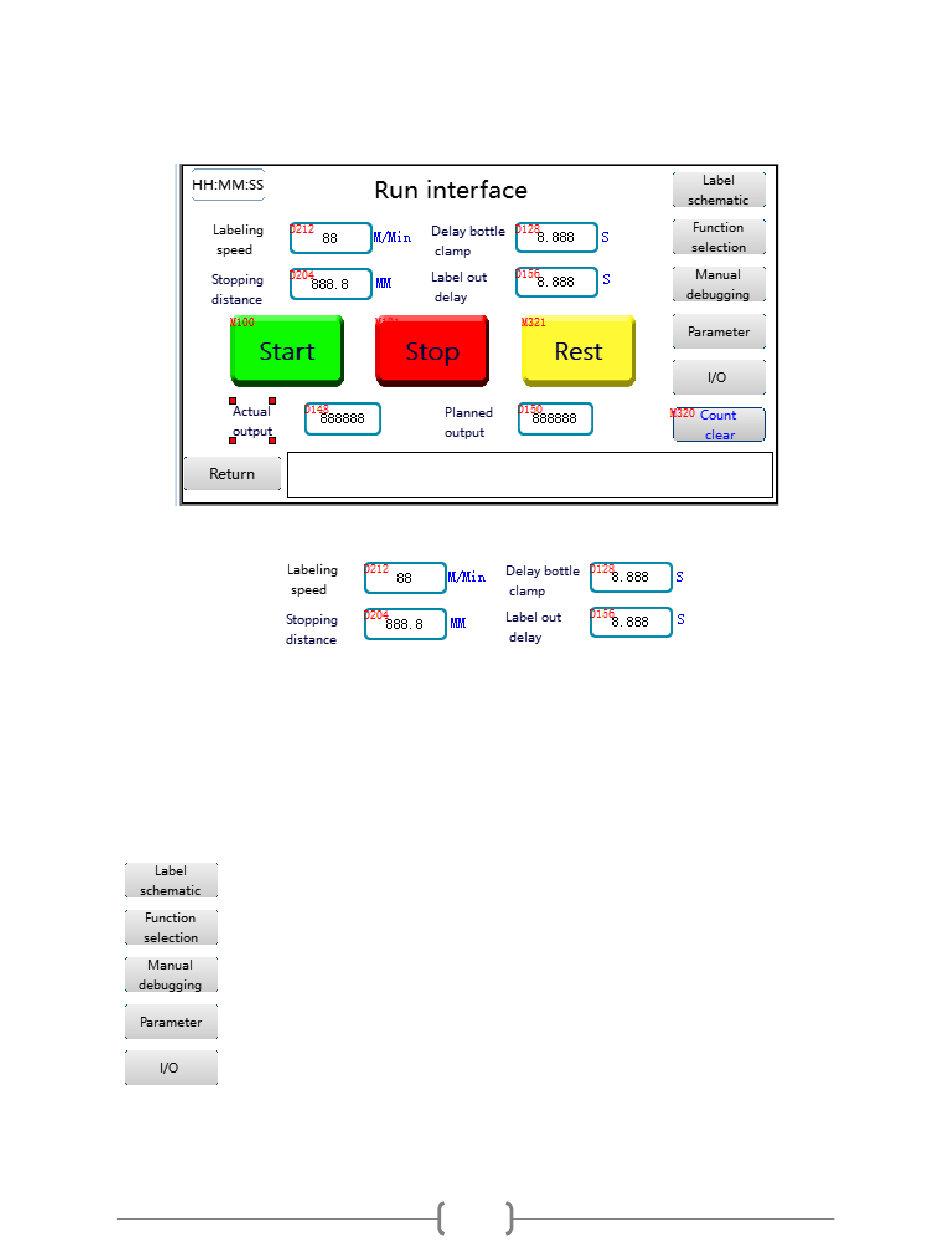

Operating the User Interface
The main menu
1. Labeling Speed – The speed at which the friction roller is pulling the label roll.
2. Delay Bottle Clamping – The amount of time after the bottle sensor is triggered before the
clamping mechanism is engaged.
3. Stopping distance - set the interval to pull time per label.
4. Label Out Delay – The amount of time the bottle clamping mechanism is engaged.
Set the "planned output" to stop labeling at a pre-determined value. The actual output is
-
the current label count.
-
Shows an image of the correct label path.
-
Allows the user to set the operational state of specific functions during
use.
-
Manual engagement of all mechanical operations during periods of
none use.
operation)
-
Advanced user settings
-
Monitoring screen.
(This feature will not work when the labeler is in standard
13
