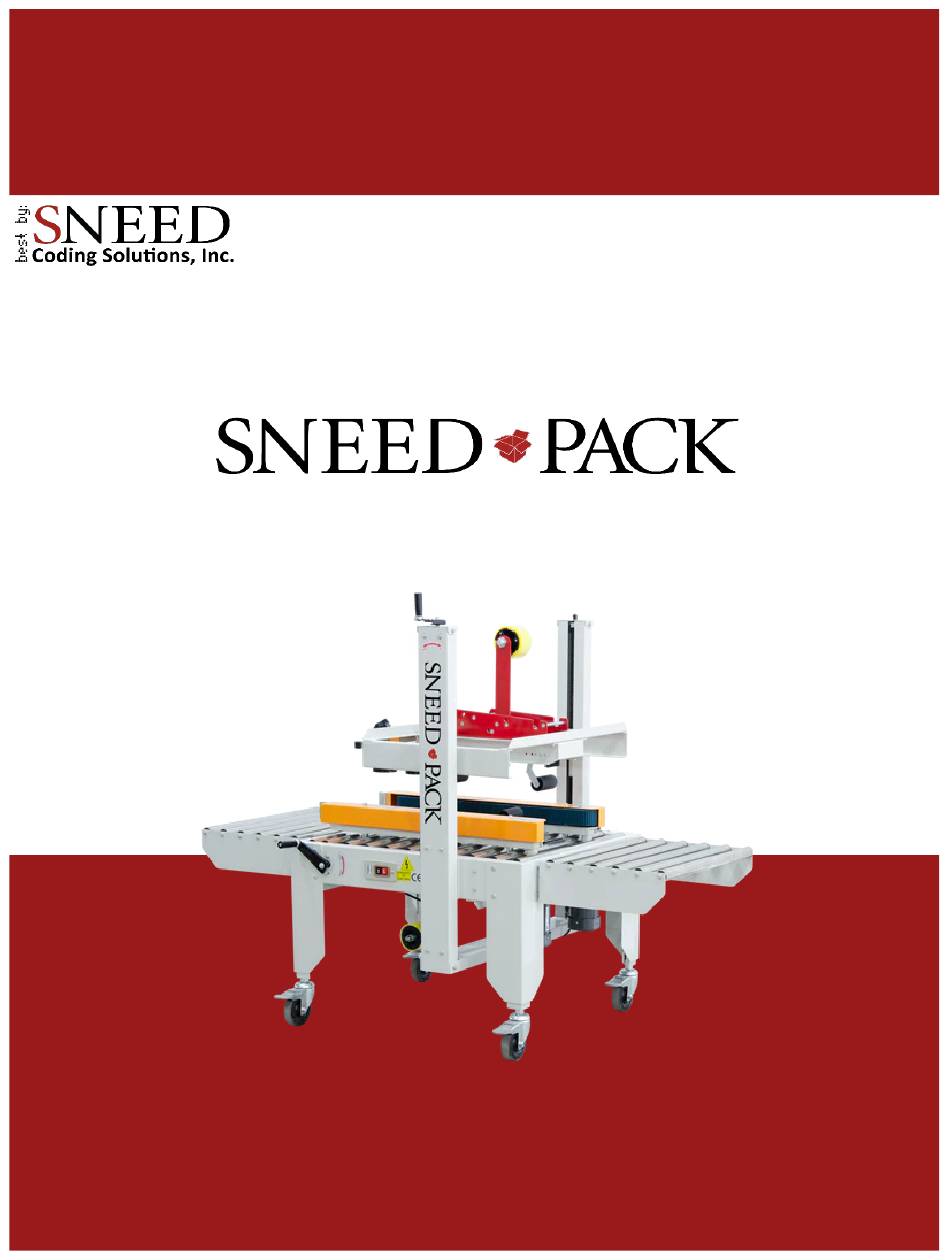

- Page 1 CS-5OSB USER GUIDE SNEED CODING SOLUTIONS | WWW.SNEEDCODING.COM...
- Page 2 To Schedule a Call: https://info.sneedcoding.com/meetings/richardturner/printer-introduction Sneed Coding Help Desk: https://help.sneedcoding.com/ www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
- Page 3 Thank you for your purchase of the SNEED-PACK CS-50SB side belt driven carton sealer. In this manual you will find the basic operating and maintenance procedures to ensure your success with the CS-50SB. Please read the manual carefully before operating the equipment. Safety Precautions Keep hands clear of any moving parts while the case sealer is in operation and always power down prior to inspection.
-
Page 4: Table Of Contents
Contents Specifications ..............................4 Component Diagram ............................. 5 Setting up the Case Sealer ..........................6 Adjusting the Deck Height ........................6 Installing the Roller Tables ........................7 Adjusting for your Carton Dimensions...................... 8 Installing the Tape ............................. 9 Adjusting the Tape Position ........................10 Setting the Tape Tension ........................ -
Page 5: Specifications
Specifications Speed: 20 m/min Tape width: 1- 3 inch Carton / case size: 15cm x 12cm ~ 50cm x 50cm Machine Size: Width: 85cm Length: 102cm Height: 135cm Deck Height: 55cm ~ 72cm Power supply: 110V,220-240V/50-60Hz www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 6: Component Diagram
Component Diagram Box Height Adjustment Tape Head Case Stabilizers Tape Applicators / Rollers Removable Roller Tables Conveyance Belts Box Width Adjustment www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 7: Setting Up The Case Sealer
Setting up the Case Sealer Adjusting the Deck Height Lock Nut Castor Height Adjustment inserts Wheel Brake Adjustment bolts Figure 1 1. Begin by lifting the case sealer to the desired height with a pallet fork, dolly, or jack and secure it safely in place. -
Page 8: Installing The Roller Tables
Installing the Roller Tables 1. The fasteners (nuts) to attach the roller tables are already tightened onto their corresponding bolt and will need to be removed first. *Only remove the first of two fasteners (nuts) 2. Once the fasteners are removed place the roller tables onto the bolts and tighten them in place. -
Page 9: Adjusting For Your Carton Dimensions
Adjusting for your Carton Dimensions. Carton height adjustment Carton width adjustment Figure 3 1. To set the case sealer to fit the dimensions of your carton/case use the adjustments shown in Figure 3. 2. The adjustment handles will be installed backwards for shipping, remove them using the included 10mm wrench and reinstall. -
Page 10: Installing The Tape
Installing the Tape 1. Begin by attaching the tape arms to each tape head using the included screws. (top and bottom) 2. Next Install the tape onto the tape wheel so that when you pull the tape down the adhesive side is facing outward. -
Page 11: Adjusting The Tape Position
Adjusting the Tape Position If you find that your tape is not lining up with the center of the box seems you can use the M18 nut shown in figure 6 to reposition the tape. 1. Remove the tape roll. 2. -
Page 12: Common Issues
Common Issues Issue Cause Solution Tape does not cut The tape head blade is dull or 1.Remove the tape jam. jammed 2.Wipe clean any accumulated adhesive from the tape head with 90% isopropyl alcohol. 3.Sharpen or replace the tape blade. The tape has been cut but only The Tape head is likely jammed 1.Remove the Jam... -
Page 13: Circuit Diagram
Circuit Diagram 0.24KW 100V www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 14: Exploded Parts Diagrams
Exploded Parts Diagrams Main Body Lift Mechanism www.sneedcoding.com (833)926-3464 support@sneedcoding.com... -
Page 15: Parts List
Parts List DRAW DESCRIPTION MEMO Castor With stop Adjust under carriage Solid square Under carriage Bracket Bracket Axle Beam barrel Axle sleeve Axle Beam barrel Beam barrel Axle Frame Catch plate Chain www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 16 Chain wheel Cover plate Upright column Axle Axle sleeve Bracket Catch plate Bracket Start handle Lock block Clamping roller lever Clamping roller Guide plate Adjuster lever www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
-
Page 17: Drive / Conveyance System
Drive / Conveyance System Parts List DRAW DESCRIPTION MEMO Handle Handle setting shaft Unit bearing assembly Screw rod Sliding base www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 18 Belt bracket Chain wheel Unit bearing block Pin roll Driven wheel Idle wheel Single port idle shaft Belt bracket Belt cover support bar Drive axle Drive wheel Belt cover www.sneedcoding.com (833)926-3464 support@sneedcoding.com...
-
Page 19: Tape Head
Tape Head Parts List Description MEMO Left panel Hexagon shaft Connection link Front swing Knurling guide roller axle Stationary axle sleeve Adhesive tape supporting arm Unidirectional guide roller axle www.sneedcoding.com (833)926-3464 support@sneedcoding.com... - Page 20 PE roller axle Front guide board Adhesive tape holder stationary axle Front support axle Knurling guide roller Adhesive tape roller PE roller Unidirectional knurling roller Cutter holder wedding board Main spring lock shaft Cutter holder stationary axle Cutter holder stationary axle sleeve Baffle roller Main spring Right panel...
