How to connect my Jabra GN9120 EHS / GN9125 EHS with
Alcatel Touch 4029, 4039
Prerequisite:
Jabra GN9120 EHS + Jabra LINK 14201-09
Jabra GN 9125 EHS + Jabra LINK 14201-09
In combination with one of the following phones:
Touch 4029
Touch 4039
Connection:
Connect the MSH connection cable to the base of the Jabra GN912x EHS
as follows:
2 modular plugs (RJ9+RJ45)

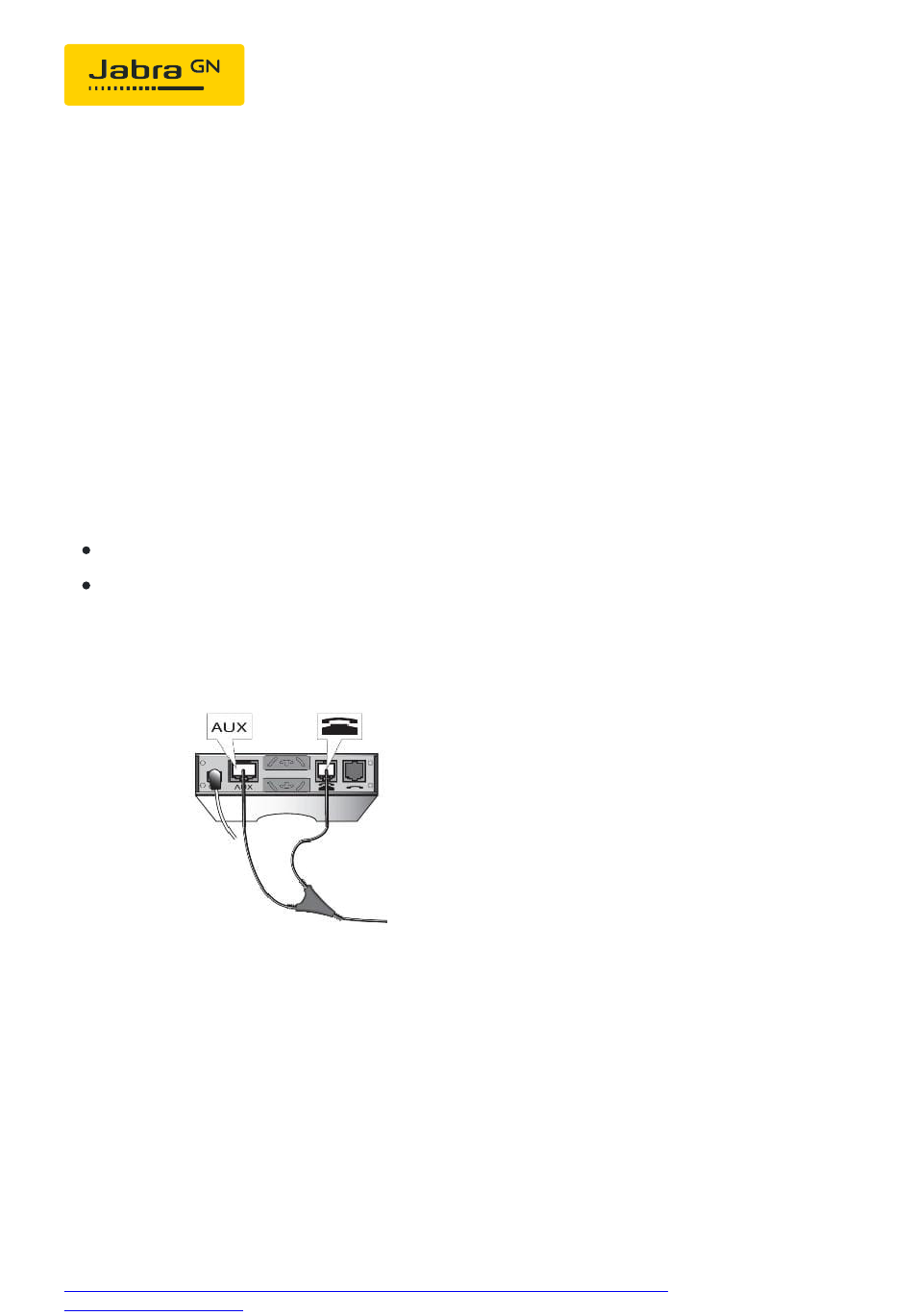

2-sided end: Insert the RJ45 into the socket identified with "AUX" and
the RJ9 into the socket identified with the complete "phone" symbol on
the base.
2-fold Y-coupling end: Insert the 3.5 mm phone jack into the headset
interface and the RJ12 into the "bell" socket of the phone. The additional
https://www.jabra.co.uk/supportpages/jabra-gn9120/9120-49-21/faq/4835ac34-5f08-
4ca9-bf18-f039dbca72aa
17/07/2024 17:54
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jabra GN9120 DECT GAP
Summary of Contents for Jabra GN9120 DECT GAP
- Page 1 In combination with one of the following phones: Touch 4029 Touch 4039 Connection: Connect the MSH connection cable to the base of the Jabra GN912x EHS as follows: 2 modular plugs (RJ9+RJ45) 2-sided end: Insert the RJ45 into the socket identified with "AUX" and the RJ9 into the socket identified with the complete "phone"...
- Page 2 Base setup: Set the phone set-up switch to "A". EHS setup: The Jabra GN912x must support and be set up on MSH EHS. You can check or set it as follows: 1. Put the headset in the base. 2. Then press the PLUS and MINUS buttons simultaneously for 6 https://www.jabra.co.uk/supportpages/jabra-gn9120/9120-49-21/faq/4835ac34-5f08-...
- Page 3 1. Please call someone with the headset. 2. You must now simultaneously press the PLUS and MINUS buttons on the headset which immediately produces a signal tone. 3. You can now increase the microphone volume with PLUS or decrease https://www.jabra.co.uk/supportpages/jabra-gn9120/9120-49-21/faq/4835ac34-5f08- Page 3 of 5 4ca9-bf18-f039dbca72aa...
- Page 4 In the event that you still do not have a dial tone signal transfer despite setting the correct ring tone, check the following settings: Menu > Settings > Phone > Internal/External > other options No tone, Progressive, Bleep tones > all items must be set to "OFF". https://www.jabra.co.uk/supportpages/jabra-gn9120/9120-49-21/faq/4835ac34-5f08- Page 4 of 5 4ca9-bf18-f039dbca72aa...
- Page 5 Dial phone number > the following now appears in the phone display "transfer" > now press the appropriate function button next to the phone display > when connected you must now end the call using the button identified with the "handset". https://www.jabra.co.uk/supportpages/jabra-gn9120/9120-49-21/faq/4835ac34-5f08- Page 5 of 5 4ca9-bf18-f039dbca72aa...
