Jabra GN9120 DECT GAP
How to connect my Jabra GN9120 EHS / GN9125 EHS with
Alcatel IP Touch 4028, 4038, 4068
Prerequisite:
Jabra GN9120 EHS + Jabra Link 14201-09
Jabra GN9125 EHS + Jabra Link 14201-09
In combination with one of the following phones:
IP Touch 4028
IP Touch 4038
IP Touch 4068
Connection:

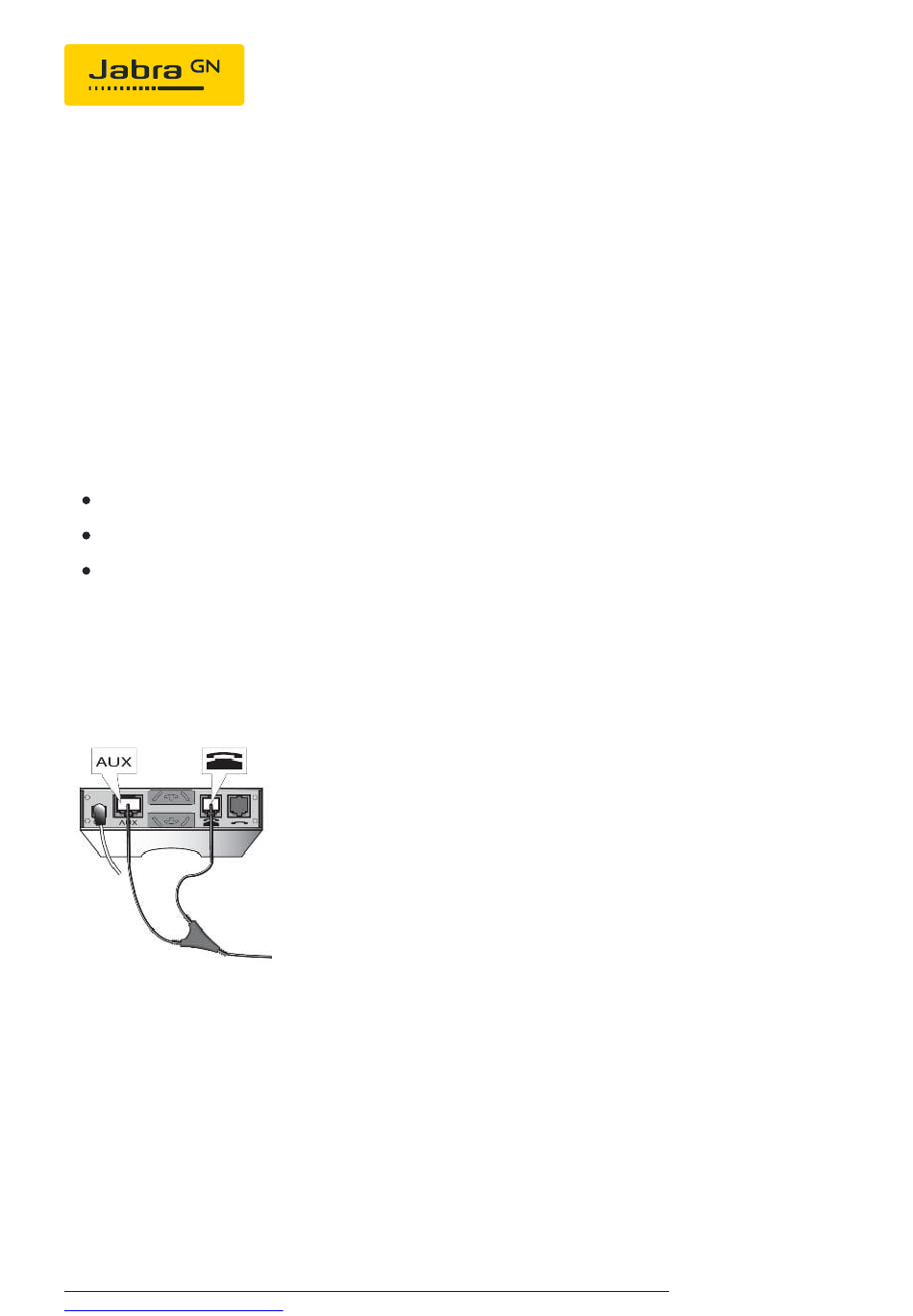

Connect the MSH connection cable to the base of the Jabra GN912x EHS
as follows:
2 modular plugs (RJ10+RJ45)
2-sided end: Insert the RJ45 into the socket identified with "AUX" and
the RJ10 into the socket identified with the "phone" symbol on the base.
2-fold Y-coupling end: Insert the 3.5 mm phone jack into the headset
interface and the RJ12 into the bell socket of the phone. The additional
https://www.jabraheadsets.ch/supportpages/jabra-gn9120/9120-49-21/faq/d8f5ef13-
c0f4-4e7a-99c5-558f443e1d45
08/06/2024 11:09
Seite 1 von 5
Advertisement
Related Manuals for Jabra 9120-49-21
Summary of Contents for Jabra 9120-49-21
- Page 1 IP Touch 4028 IP Touch 4038 IP Touch 4068 Connection: Connect the MSH connection cable to the base of the Jabra GN912x EHS as follows: 2 modular plugs (RJ10+RJ45) 2-sided end: Insert the RJ45 into the socket identified with "AUX" and the RJ10 into the socket identified with the “phone”...
- Page 2 The adjustment controller on the base must be set to "A". EHS setup: The Jabra GN912x must support and be set up on MSH EHS. You can check or set it up as follows: 1. Place the headset on the base.
- Page 3 2. You must now simultaneously press the PLUS and MINUS buttons on the headset which immediately produces a signal tone. 3. You can now increase the microphone volume with PLUS or decrease the volume with MINUS. https://www.jabraheadsets.ch/supportpages/jabra-gn9120/9120-49-21/faq/d8f5ef13- Seite 3 von 5 c0f4-4e7a-99c5-558f443e1d45...
- Page 4 In the event that you still do not have a dial tone signal transfer despite setting the correct ring tone, check the following settings: Menu > Settings > Phone > Internal/External > other options No tone, Progressive, Bleep tones > all items must be set to "OFF". https://www.jabraheadsets.ch/supportpages/jabra-gn9120/9120-49-21/faq/d8f5ef13- Seite 4 von 5 c0f4-4e7a-99c5-558f443e1d45...
- Page 5 Dial phone number > the following now appears in the phone display "transfer" > now press the appropriate function button next to the phone display > when connected you must now end the call using the button identified with the "handset". https://www.jabraheadsets.ch/supportpages/jabra-gn9120/9120-49-21/faq/d8f5ef13- Seite 5 von 5 c0f4-4e7a-99c5-558f443e1d45...
