How to connect my Jabra GN9120 EHS / GN9125 EHS with
Aastra 6753i, 6755i, 6757i

Prerequisite:

Jabra GN9120 EHS or GN9125 EHS + Jabra Link 14201-10 + Aastra
DHSG cable kit (only available from Aastra).
In combination with one of the following phones:
Aastra 53i / 55i / 57i / 57iCT
Aastra 6753i / 6755i / 6757i / 6757i CT
From phone firmware 2.5.1.2000 or higher.

Connection:

Aastra DHSG cable:

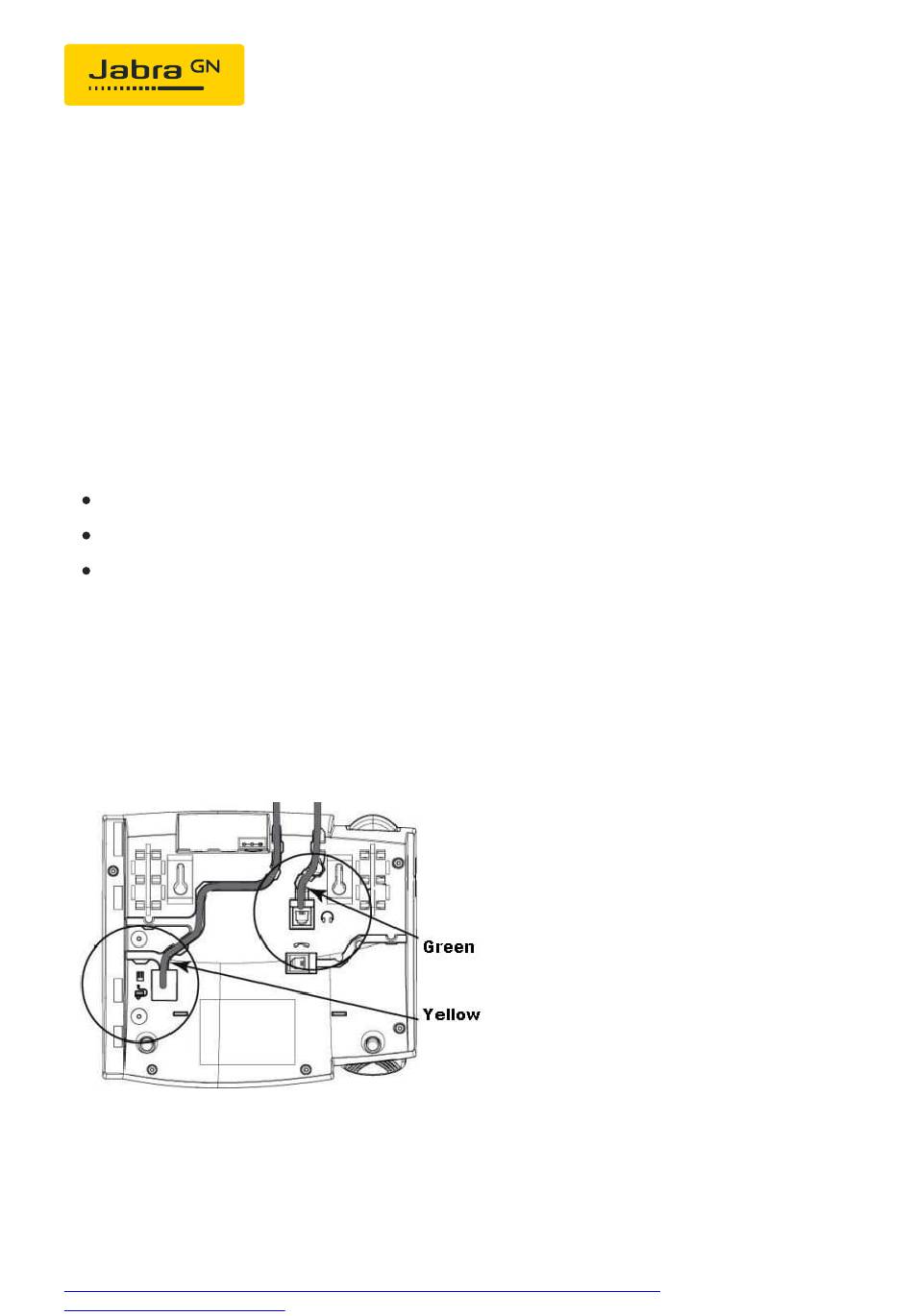

Insert the split end of the Aastra DHSG cable into your phone as follows.
1. Insert the RJ10 plug (marked green) into the "headset" socket and
the RJ45 plug (marked yellow) into the socket for the expansion
module. [Grün = green][Gelb = yellow]
2. Insert the 1-sided end of the Aastra DHSG cable marked in blue into
https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/4dfffab0-
fb7f-42bd-90b7-d4d640831ed7
11/02/2024 08:12
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GN9120 DECT GAP and is the answer not in the manual?

Questions and answers

Summary of Contents for Jabra GN9120 DECT GAP

  • Page 1 How to connect my Jabra GN9120 EHS / GN9125 EHS with Aastra 6753i, 6755i, 6757i Prerequisite: Jabra GN9120 EHS or GN9125 EHS + Jabra Link 14201-10 + Aastra DHSG cable kit (only available from Aastra). In combination with one of the following phones:...
  • Page 2 11/02/2024 08:12 the Aastra RJ45-RJ45 adapter. 3. Now insert the 1-sided end of the Jabra Link 14201-10 cable marked “blue” into the free socket of the RJ45 adapter. 4. Insert the RJ10 plug into the socket with the complete “phone”...
  • Page 3 2. On the headset, you must now simultaneously press the PLUS and MINUS buttons which immediately produces a signal tone. 3. You can now increase the microphone volume with PLUS or decrease it with MINUS. https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/4dfffab0- Page 3 of 4 fb7f-42bd-90b7-d4d640831ed7...
  • Page 4 Audio mode must be set in the in the phone settings to “headset/speaker”: Options > Default settings > Audio settings > Audio mode > Heads./Loudsp. Unfortunately, Remote Call Control In combination with an expansion button field is not supported! https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/4dfffab0- Page 4 of 4 fb7f-42bd-90b7-d4d640831ed7...
