ERICO CADDY PYRAMID PEB Instruction Sheet

INSTRUCTION SHEET

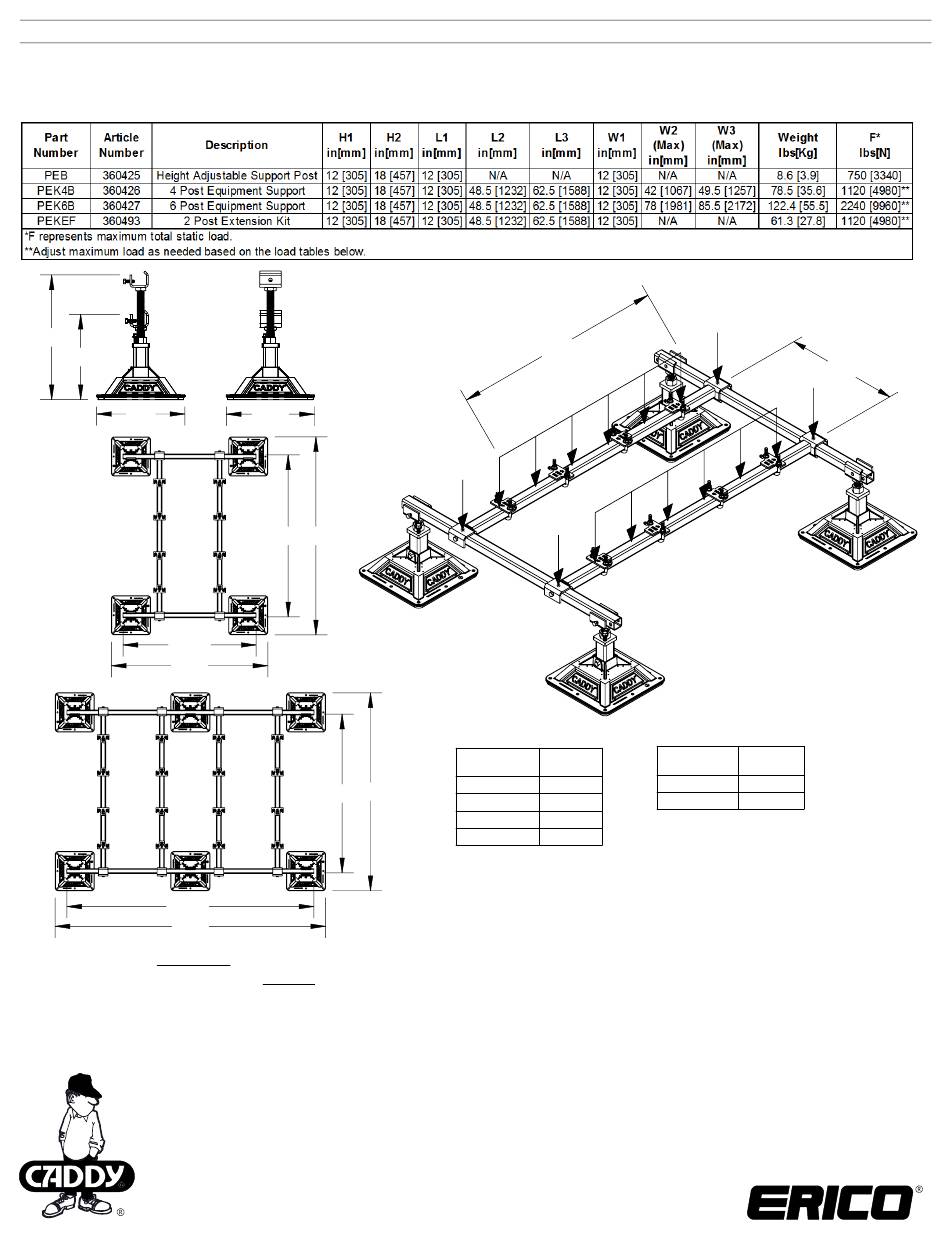

CADDY® PYRAMID
Rooftop Equipment Support
H2
H1
L1
W2
W3
W2
W3
WARNING:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials.
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT:
www.erico.com
W1
1/4 F
L2 L3
L3
L2
CFS471_D 1 OF 4
A
1/2 F
1/2 F
1/4 F
Max Load A
lbs[N] in[mm]
725 [3225] 12 [305]
790 [3510] 24 [610]
915 [4070] 36 [915]
1120 [4980] 48 [1220]
*Load must be stable and spread evenly
across frame.
*The roof must be able to support the point
loads at the base feet.
© 2012, 2013 ERICO International
Corporation.
1/4 F
B
1/4 F
Max Load B
lbs[N] in[mm]
790 [3510] <15 [380]
1120 [4980] >15 [380]
*Max distance (B) = 33 in [840 mm]
Instruction sheets are available at
