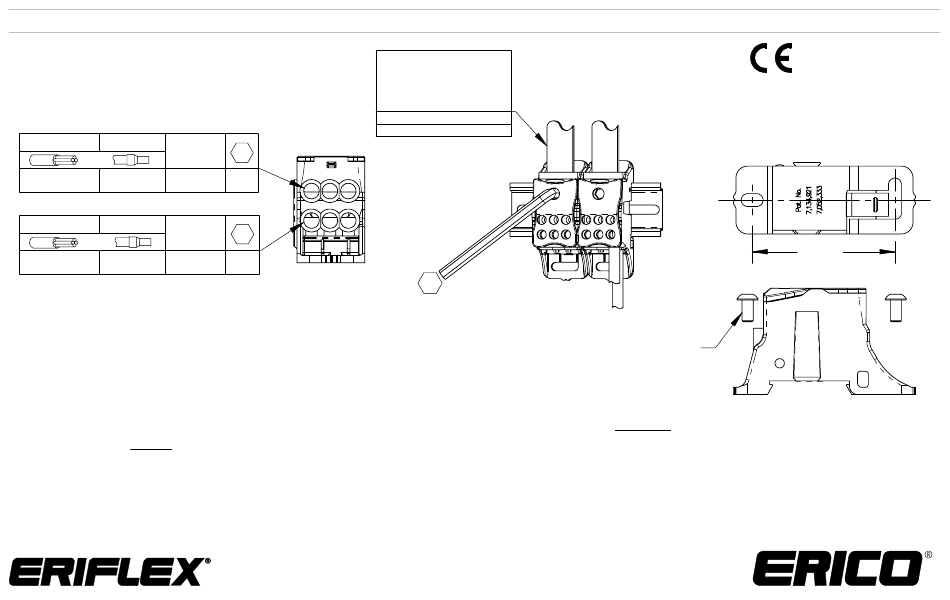

ERICO ERIFLEX UDF250 Instruction Sheet

INSTRUCTION SHEET
UDF250
569041
SIZE (3X) TORQUE
STRIP
*
LENGTH
OR
2,5...16 mm² 3,5 N.m 8,9 mm
SIZE (3X) TORQUE
STRIP
* LENGTH
OR
2,5...16 mm² 3,5 N.m 11,4 mm 3mm
Note:
1. Tighten screws of all unused galleries to the specified torque above.
2. For multiple phase assemblies, join blocks together before installing on DIN Profile.
3. The input conductor must be fixed or maintained at approximately 15cm from the blocks.
4. * When using 16mm² cables with insulated ferrules only two can be used in each row.
Warning:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death.
Safety Instructions:
All governing codes and regulations and those required by the job site must be observed. Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
IEC is a registered trademark of International Electrotechnical Commission
eriflex
FLEXIBAR
3X9X0.8 - 6X9X0.8
3X13X0.5 - 6X13X0.5
2X15.5X0.8 - 6X15.5X0.8
TORQUE: 13,5 N.m
STRIP LENGTH 19mm
3mm
Technical Support:
IP8106_C
www.erico.com
®
6mm
1 of 2 © 2010, 2012 ERICO International
Corporation.
®
IEC 60947-7-1
I: 250A
Ui: 1000V AC/DC
Uimp: 12kV
Ipk: 30kA
Icw: 9kA rms 1s
62.3
M5
